Disassemble/Assemble Front Bumper - AR88.20-P-2050GQB

Model 166.0 As Of Model Year 2016

Model 166.8 (except 166.874)

As Of Model Year 2016

Model 292 except code 772 (AMG styling - Front spoiler, side skirts)

Shown on model 166.0 as of model year 2016

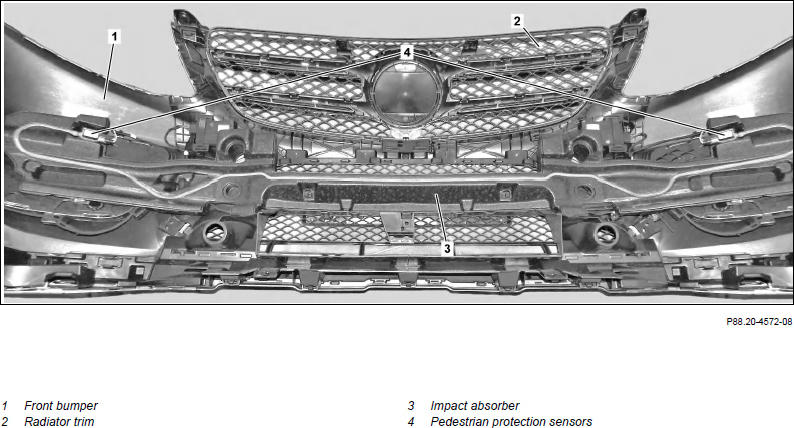

Fig 1: Front Bumper Components Location - Model 166 (Shown On Model 166.0)
G14138014Courtesy of MERCEDES-BENZ USA

Shown on model 166.0 as of model year 2016

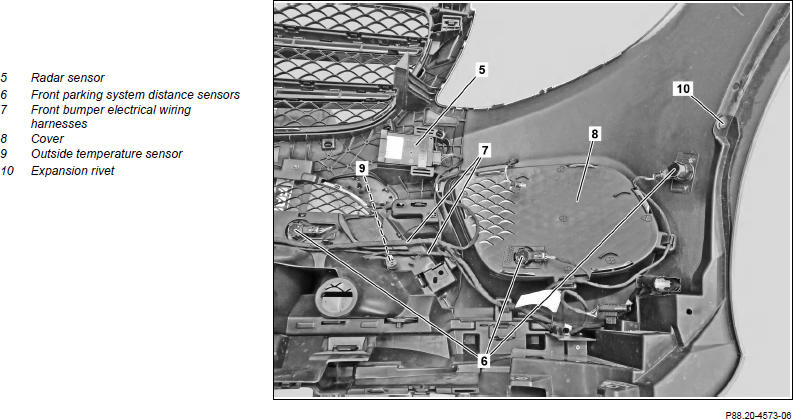

G14138015Courtesy of MERCEDES-BENZ USA

Shown on model 166.0 as of model year 2016

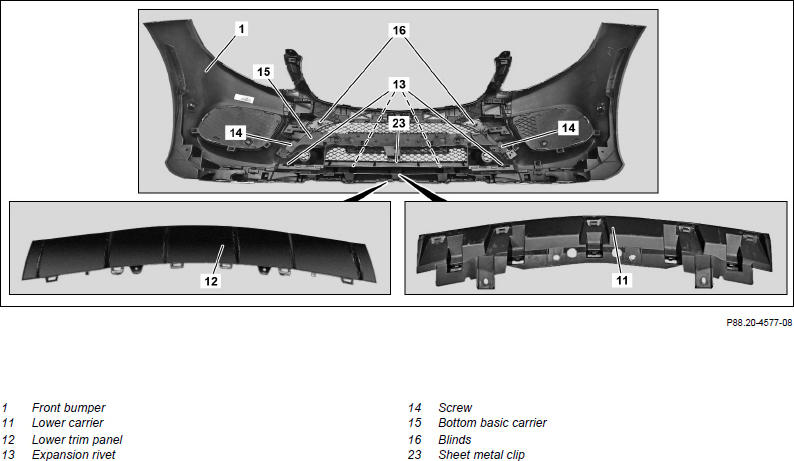

G14138016Courtesy of MERCEDES-BENZ USA

Shown on model 166.0 as of model year 2016

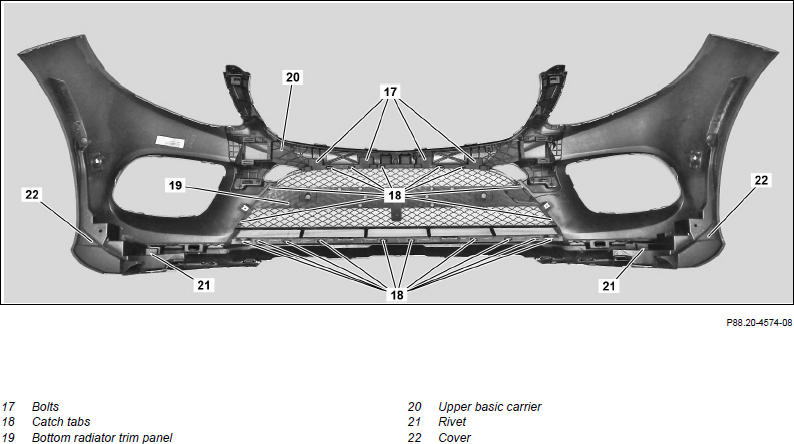

G14138017Courtesy of MERCEDES-BENZ USA

Shown on MODEL 292

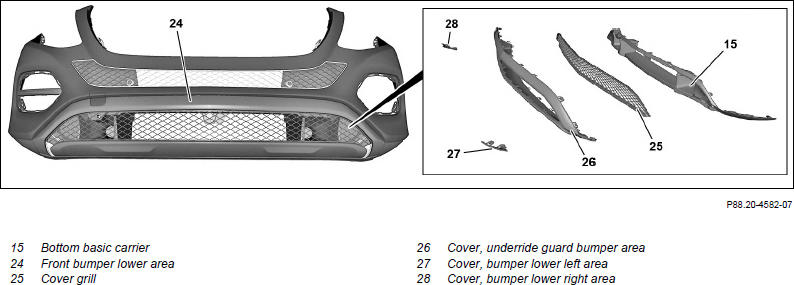

G14138018Courtesy of MERCEDES-BENZ USA

Shown on MODEL 292

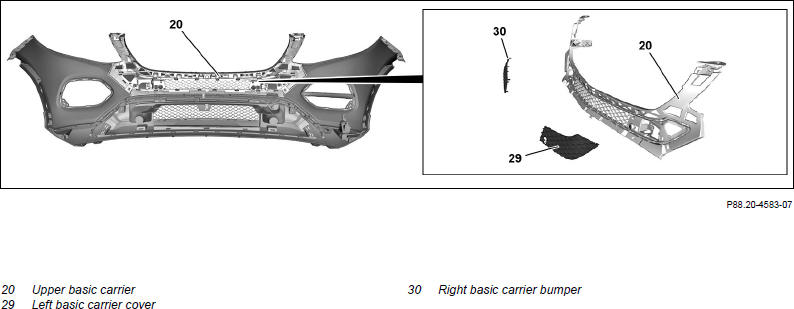

G14138019Courtesy of MERCEDES-BENZ USA
General information on the impact absorber   AH88.20-P-1000-01A
Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1 Remove front bumper (1). Model 292 except code 772 (AMG styling - Front spoiler, side skirts) AR88.20-P-2000GQC
    Model 166 (except 166.874) as of model year 2016 AR88.20-P-2000GQ
DISASSEMBLINGASSEMBLING Disassemble/assemble
2 Set down front bumper (1) on a suitable base
3 Remove radiator grille (2)   AR88.40-P-4001GQ
4 Remove license plate and license plate bracket from front bumper (1)
5.1 Unclip impact absorber (3) Model 166.0, 166.8 (except 166.874) as of model year 2016
except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) Model 292
except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
except code 772 (AMG styling - Front spoiler, side skirts)
5.2 Remove pedestrian protection sensors (4) with impact absorber (3) Model 166.0, 166.8 (except 166.874) as of model year 2016
with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
with code U60 (Pedestrian protection - Active hood)
Model 292 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
with code U60 (Pedestrian protection - Active hood)
except code 772 (AMG styling - Front spoiler, side skirts)
      AR91.60-P-0950GQC
6.1 Remove radar sensor (5) Model 166 (except 166.874) as of model year 2016
with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Model 292 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
except code 772 (AMG styling - Front spoiler, side skirts)
      AR30.30-P-1210GQA
    IMPORTANT Perform work on left and right side of front bumper (1) analogously.
6.2 Remove COLLISION PREVENTION ASSIST control unit Model 166 (except 166.874) as of model year 2016
with code 258 (Collision warning system with active brake application FCW-Stop)
Model 292 with code 258 (Collision warning system with active brake application FCW-Stop)
except code 772 (AMG styling - Front spoiler, side skirts)
    IMPORTANT Perform work on left and right side of front bumper (1) analogously. AR54.70-P-0002GQC
7 Remove front parking system distance sensors (6) in front bumper (1) Model 166.0, 166.8 (except 166.874) as of model year 2016
with code 220 (PARKTRONIC system (PTS))
with code 235 (Active Parking Assist) Model 292
with code 235 (Active Parking Assist) except code 772 (AMG styling - Front spoiler, side skirts)
IMPORTANT Perform work on left and right side of front bumper (1) analogously.		 AR54.65-P-0001GQC
8 Disconnect electrical connectors from outside temperature sensor (9)
9 Unclip outside temperature sensor (9)
10 Unclip front bumper electrical wiring harnesses (7) from front bumper (1) and remove IMPORTANT The number of electrical lines varies depending on the vehicle equipment.
11 Unclip cover (8) from front bumper IMPORTANT Perform work on left and right side of front bumper (1) analogously.
    SPECIAL TOOL Mounting wedge Fig 2
12 Remove expansion rivets (13) Model 166.0, 166.8 (except 166.874) as of model year 2016
    SPECIAL TOOL Clip remover Fig 3
13 Unclip lower carrier (11) and lower paneling (12) with suitable tool
14 Unscrew bolts (14) on left and right sides Model 166.0, 166.8 (except 166.874) as of model year 2016
15 Bend open sheet metal clip (23) with suitable tool and remove Model 166.0, 166.8 (except 166.874) as of model year 2016
IMPORTANT Replace sheet metal clips (23).
16 Unclip lower basic carrier (15) Model 166.0, 166.8 (except 166.874) as of model year 2016
    SPECIAL TOOL Mounting wedge Fig 2
17 Unclip front bumper in lower area (24) Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
IMPORTANT The front bumper lower area (24) consists of a lower basic carrier (15), cover grill (25), cover in underride guard bumper area (26), cover in bumper lower left area (27) and cover in bumper lower right area (28).
    SPECIAL TOOL Mounting wedge Fig 2
18 Lay front bumper lower area (24) down on suitable base Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
19 Unclip cover in bumper lower left area (27) and remove Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
    SPECIAL TOOL Mounting wedge Fig 2
20 Unclip cover in bumper lower right area (28) and remove Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
    SPECIAL TOOL Mounting wedge Fig 2
21 Unclip cover in underride guard bumper area (26) from lower basic carrier (15) and remove Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
    SPECIAL TOOL Mounting wedge Fig 2
22 Unclip cover in underride guard bumper area (26) from cover grill (25) and remove Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
    SPECIAL TOOL Mounting wedge Fig 2
23 Remove bolts (17) Model 166.0 as of model year 2016
24 Unclip catch tab (18) with suitable tool Model 166.0, 166.8 (except 166.874) as of model year 2016
25 Unclip covers (16) Model 166.0, 166.8 (except 166.874) as of model year 2016
    SPECIAL TOOL Mounting wedge Fig 2
26 Unclip lower radiator grille (19) Model 166.0, 166.8 (except 166.874) as of model year 2016
    SPECIAL TOOL Mounting wedge Fig 2
27 Unclip upper basic carrier (20) SPECIAL TOOL Mounting wedge Fig 2
28 Lay upper basic carrier (20) down on suitable base Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
29 Unclip left basic carrier cover (29) and remove Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
    SPECIAL TOOL Mounting wedge Fig 2
30 Unclip right basic carrier cover (30) and remove Model 292 except code 772 (AMG styling - Front spoiler, side skirts)
    SPECIAL TOOL Mounting wedge Fig 2
31 Unclip expansion rivet (10) with suitable tool Model 166.0, 166.8 (except 166.874) as of model year 2016
IMPORTANT Perform work on left and right side of front bumper (1) analogously.
    SPECIAL TOOL Clip remover Fig 3
32 Drill out rivet (21) on left and right side Model 166.0, 166.8 (except 166.874) as of model year 2016
33 Unclip cover (22) on left and right side Model 166.0, 166.8 (except 166.874) as of model year 2016
    SPECIAL TOOL Mounting wedge Fig 2
34 Assembly in reverse order
INSTALLING Install
35 Install front bumper (1) Model 292 except code 772 (AMG styling - Front spoiler, side skirts) AR88.20-P-2000GQC
    Model 166.0, 166.8 (except 166.874) as of model year 2016 AR88.20-P-2000GQ
Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
G07079389Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Clip Remover (452 589 01 63 00)
G07304504Courtesy of MERCEDES-BENZ USA
