Disassemble/Assemble Rear Center Console Cover - AR68.20-P-2150-01GQ

Model 166, 292

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Disassemble/assemble

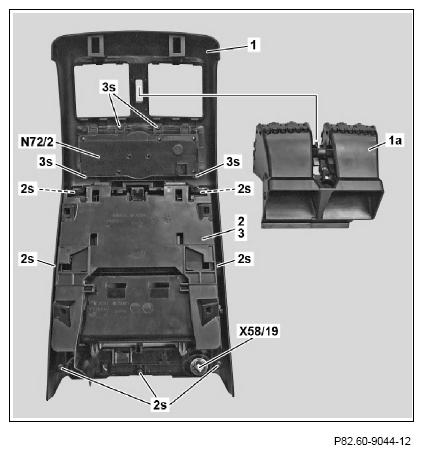

1. Remove left 2nd seat row socket (X58/19) with pliers.
2. Unclip air duct (1a) and remove from rear center console (1).
3. Unscrew bolts (2s) and remove folding compartment (2).
4. 4.1 With code 581 (Automatic air conditioning) Unscrew bolts (3s) and remove RCP control unit (N72/2).

   4.2 Without code 581 (Automatic air conditioning) Remove stowage compartment from rear center console (1).

5. Assemble in the reverse order.

   Courtesy of MERCEDES-BENZ USA
