Carry Out Distance And Comparison Measurements On Rear Axle - AR40.30-P-0402-02GZ
Model 164, 166, 251, 292
| Number | Designation | Model 166.8 | Model 164.1 | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-05H | Dimension | H1 | mm | 1771 (+2) | 1621 (+ 2) |
| H2 | mm | 2413 (±2) | 2257 (+ 2) | ||
| H3 | mm | 1271 (±2) | 1271 (±2) | ||
| H4 | mm | 962 (±2) | 962 (±2) | ||
| H5 | mm | 1168 (±2) | 1168 (±2) | ||
| For picture, see | AR40.30-P-0402-02GZ | AR40.30-P-0402-02GZ |
| Number | Designation | Model 164.8 | Model 166.0 | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-05H | Dimension | H1 | mm | 1771 (±2) | 1621 (±2) |
| H2 | mm | 2413 (±2) | 2257 (±2) | ||
| H3 | mm | 1271 (±2) | 1271 (±2) | ||
| H4 | mm | 962 (±2) | 962 (±2) | ||
| H5 | mm | 1168 (±2) | 1168 (±2) | ||
| For picture, see | AR40.30-P-0402-02GZ | AR40.30-P-0402-02GZ |
| Number | Designation | Model 251.0 | Model 251.1 | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-05H | Dimension | H1 | mm | 1673 (±2) | 1895 (±2) |
| H2 | mm | 2313 (±2) | 2542 (±2) | ||
| H3 | mm | 1307 (±2) | 1307 (±2) | ||
| H4 | mm | 1060 (±2) | 1060 (±2) | ||
| H5 | mm | 1168 (±2) | 1168 (±2) | ||
| For picture, see | AR40.30-P-0402-02GZ | AR40.30-P-0402-02GZ |
| Number | Designation | Model 292 | ||
|---|---|---|---|---|
| BE40.30-P-1001-05H | Dimension | H1 | mm | 1621 (±2) |
| H2 | mm | 2257 (±2) | ||
| H3 | mm | 1271 (±2) | ||
| H4 | mm | 962 (±2) | ||
| H5 | mm | 1168 (±2) | ||
| For picture, see | AR40.30-P-0402-02GZ |
The following special tools are required:
Telescopic measuring rod,
Suspension,
Measuring fixture set,
Stay tube and
Connecting parts.
The measuring set is designed in such a way the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts. The distance dimensions are given in the table "Check values for distance and comparative measurement on rear axle".
The configuration of the measuring bolts for the respective distance dimensions is given on the list below. The numbers under "Configuration of measuring bolts" are the end numbers of the special tools in the measuring fixture set.
Example: 02/07/10 = 168 589 07 63 02 (mounting bolt), 168 589 07 63 07 (extension), 168 589 07 63 10 (measuring tip).
- Distance dimension H1:
Configuration of measuring bolts: 02/06/05/a (socket) Telescopic measuring rod: 124 589 02 19 00
- Distance dimension H2:
Configuration of measuring bolts: 02/07/05/a (socket) Telescopic measuring rod: 124 589 02 19 00
- Distance dimension H3:
Configuration of measuring bolts on front mount: 02/06/05/a (socket)
Configuration of measuring bolts on rear mount: 02/07/05/a (socket)
Telescopic measuring rod: 124 589 02 19 00

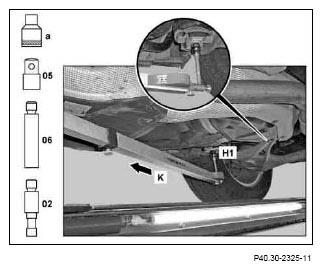

- Measure distance dimension (H1) from check point (K) to center of bolt head of front mount for rear axle carrier. Measure on both left and right side. Unscrew bolts if necessary, check for deformation and screw back in again.
- Distance dimension H4:
Configuration of measuring bolts: 02/07/05/a (socket)
Telescopic measuring rod: 124 589 02 19 00
- Distance dimension H5:
Configuration of measuring bolts: 02/06/05/a (socket)
Telescopic measuring rod: 124 589 02 19 00
Shown on model 164.1

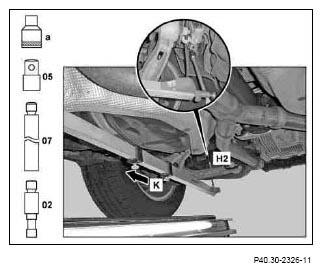

- Measure distance dimension (H2) from check point (K) to center of bolt head of rear mount for rear axle carrier. Measure on both left and right side. Unscrew bolts if necessary, check for deformation and screw back in again.
Shown on model 164.1

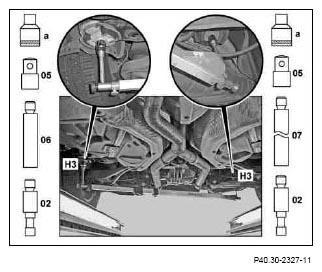

- Measure the distance dimension (H3) diagonally from the centering point of the screw heads between the front and rear bearing of the rear axle carrier. Measure on both left and right side.
Shown on model 164.1

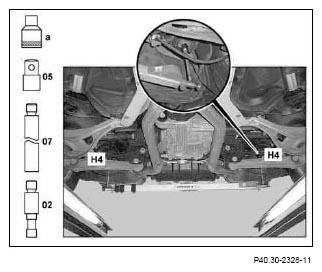

- Measure distance dimension (H4) from centering point of bolt heads between rear bearings of the rear axle carrier.
Shown on model 164.1

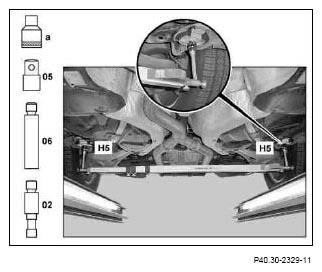

- Measure distance dimension (H5) from centering point of bolt heads between front bearings of the rear axle carrier.
Shown on model 164.1
