Adjusting Fixtures For Distance And Comparison Measurement According To The Model Concerned - AR40.30-P-0401-01GQ
Model 166, 292
MEASURING BRIDGE CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT
| Number | Designation | Model 166 | Model 292 | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-10D | Specified adjustment dimension for left-side support | Dimension "a" | mm | 217 | 217 |
| See picture | AR40.30-P-0401-01GQ | AR40.30-P-0401-01GQ |
MEASURING BRIDGE CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT
| Number | Designation | Model 166 | Model 292 | ||
|---|---|---|---|---|---|
| BE40.30-P-1002-10D | Specified adjustment dimension for right-side support | Dimension "b" | mm | 306 | 306 |
| See picture | AR40.30-P-0401-01GQ | AR40.30-P-0401-01GQ |
MEASURING BRIDGE CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT
| Number | Designation | Model 166 | Model 292 | ||
|---|---|---|---|---|---|
| BE40.30-P-1003-10D | Dimension to be set between left mount and threaded pin | Dimension "c" | mm | 55 | 55 |
| See picture | AR40.30-P-0401-01GQ | AR40.30-P-0401-01GQ |

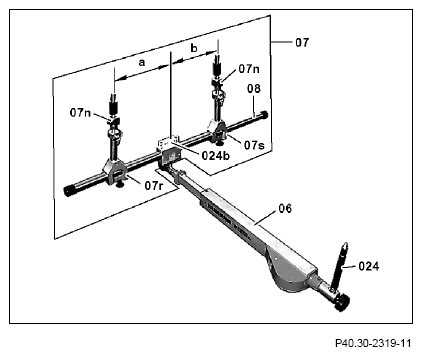

The following special tools are required:
Mounting (07) and
stay tube (08).
- Insert holding pipe (08) into mounting (07).
The adjustment dimensions are available in the check values for measuring bridges table for gap and comparative measurements.

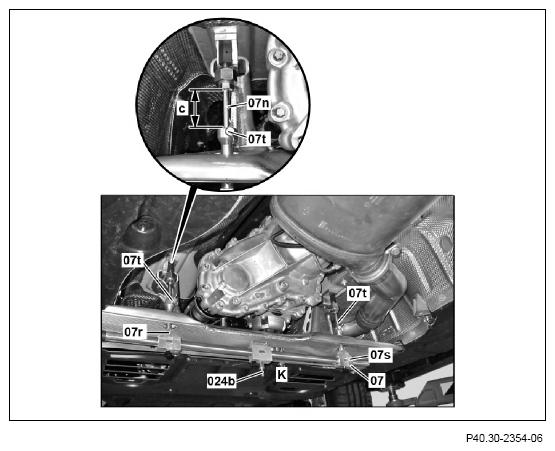

- Remove wing nuts (07t) from mounts (07r, 07s).
- Slide mounting (07) onto threaded pin (07n).
- Screw wing nuts (07t) into mounts (07r, 07s).
- Insert mounting (07) and set adjustment dimension (c) between left mount (07r) and threaded pin (07n).
- Align mounting (07) with right mount (07s) and using retaining bolt with tubular level (024b) until horizontal.
- Set adjustment dimensions (a, b) on mounts (07r, 07s).
The mounting (07) enables the vehicle center to be displayed with the check point (K).
