Checking Follower Joint Of Steering Knuckle Mount (Installed) - AR33.20-P-0426GZ

Model 164, 166, 292

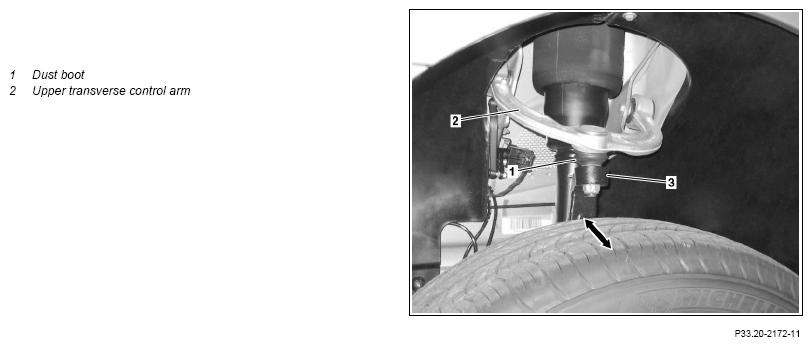

Shown on model 164

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Check
1	Raise vehicle		AR00.60-P-1000GZ
2	Check dust boot (1) for cracks and damage	Replace the upper transverse control arm (2) if necessary.
3	Check play in upper ball joint by firmly pulling and pushing (arrow) on front wheel while simultaneously feeling upper ball joint	Replace the upper transverse control arm (2) if necessary.
4	Lower vehicle
