Empty, Fill Adblue Tank - AR14.40-P-2014-02GQ

Engine 642 in model 292

with code U77 (Diesel Emission control BLUETEC (SCR))

Engine 642, 651 in model 166

with code U42 (BlueTEC diesel exhaust treatment (SCR))

Engine 642, 651 in model 166

with code U77 (Diesel Emission control BLUETEC (SCR))

REFER TO SPECIAL TOOLS 000 588 01 71 00 Extraction pump   WS14.00-P-0013B
REFER TO SPECIAL TOOLS 000 588 01 71 00 Extraction pump   WS14.00-P-0013B
REFER TO SPECIAL TOOLS 000 588 01 71 00 Extraction pump   WS14.00-P-0013B
REFER TO SPECIAL TOOLS 000 588 01 71 00 Extraction pump   WS14.00-P-0013B
REFER TO SPECIAL TOOLS 000 588 07 82 00 Filling unit   WS14.00-P-0014B
REFER TO SPECIAL TOOLS 000 588 07 82 00 Filling unit   WS14.00-P-0014B
REFER TO SPECIAL TOOLS 000 588 07 82 00 Filling unit   WS14.00-P-0014B
REFER TO SPECIAL TOOLS 000 588 07 82 00 Filling unit   WS14.00-P-0014B
REFER TO SPECIAL TOOLS 000 588 07 82 00 Filling unit   WS14.00-P-0014B
FILLING CAPACITY FOR BLUETEC (SCR) DIESEL EXHAUST TREATMENT

Number Designation Model 166.0 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Model 166.0 with code U77 (Diesel Emission control BLUETEC (SCR))
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 27, 8 28, 9
Filling capacity - service filling Liter 27 28, 4
Specification BB00.40-P-0352-01A BB00.40-P-0352-01A
FILLING CAPACITY FOR BLUETEC (SCR) DIESEL EXHAUST TREATMENT

Number Designation Model 166.8 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Model 166.8 with code U77 (Diesel Emission control BLUETEC (SCR))
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 32, 3 33, 9
Filling capacity - service filling Liter 30, 7 33, 4
Specification BB00.40-P-0352-01A BB00.40-P-0352-01A
FILLING CAPACITY FOR BLUETEC (SCR) DIESEL EXHAUST TREATMENT

Number Designation Model 292 with code U77 (Diesel Emission control BLUETEC (SCR))
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 28, 9
Filling capacity - service filling Liter 28, 4
Specification BB00.40-P-0352-01A

Draining

  1. Open fuel filler flap and remove cap from filler neck of AdBlue® tank.

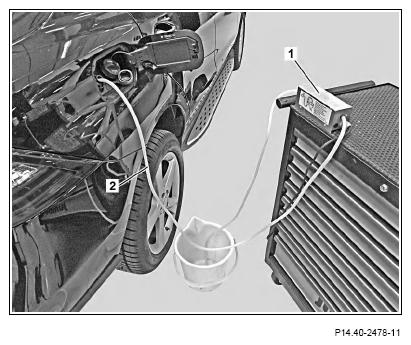

  2. Introduce extraction hose (2) into the AdBlue® tank filler neck.

    IMPORTANT Observe arrow on the extraction pump (1) for direction of suction. If necessary, rotate extraction hose (2) around longitudinal axis to get by constriction in filler neck.

  3. Suction AdBlue® via filler neck out of AdBlue® tank using extraction pump (1) and extraction hose (2), collect it and dispose of it in an environmentally friendly manner.
  4. Pull extraction hose (2) out of filler neck.
  5. Clean extraction pump (1) and extraction hose (2).

    NOTES Thoroughly flush out extraction pump (1) and extraction hose (2) with water. Otherwise damage will occur.

    Shown on model 166

    G14134304Courtesy of MERCEDES-BENZ USA

    Fill out of a container (05) (10 l can)

    NOTES The filling tools are designed in such a way as to leave an unfilled space in the AdBlue® container after switching off. Never pour in further AdBlue® after switching off. Otherwise damage may occur to the AdBlue® tank.

  6. Screw fitting (01) on connection (03) and close valves (02).
  7. Tighten connection (04) on container (05) and connection (03) on filler neck of AdBlue® tank filler neck finger-tight.
  8. Lift container (05), open valves (02) and fill AdBlue® tank.

    IMPORTANT Repeat process if necessary with further containers (05). No further AdBlue® will flow when the AdBlue® container is full.

  9. Close valves (02), unscrew connections (03, 04) and dispose of empty container (05) in an environmentally friendly manner.
  10. Screw cap onto filler neck of AdBlue® tank, remove AdBlue® residues with water and close fuel filler flap.
  11. Clean filling tool.

    NOTES Thoroughly rinse filling tool with water. Otherwise damage will occur.

    G12081340Courtesy of MERCEDES-BENZ USA

    Filling from a container (06) (5 l can) with disposable hose (07)

    NOTES The filling tools are designed in such a way as to leave an unfilled space in the AdBlue® container after switching off. Never pour in further AdBlue® after switching off. Otherwise damage may occur to the AdBlue® tank.

  12. Screw disposable hose (07) finger-tight onto container (06) and onto filler neck of AdBlue® tank.
  13. Lift container (06) and fill AdBlue® tank.

    IMPORTANT Repeat process if necessary with further containers (06). No further AdBlue® will flow when the AdBlue® container is full.

    G13770760Courtesy of MERCEDES-BENZ USA
  14. Unscrew disposable hose (07) from filler neck of AdBlue® tank and dispose of empty container (06) and disposable hose (07) in an environmentally friendly manner.
  15. Screw cap onto filler neck of AdBlue® tank, remove AdBlue® residues with water and close fuel filler flap.

    Fill out of the AdBlue® bottle (08)

    NOTES The filling tools are designed in such a way as to leave an unfilled space in the AdBlue® container after switching off. Never pour in further AdBlue® after switching off. Otherwise damage may occur to the AdBlue® tank.

  16. Remove cap from AdBlue® bottle (08) and screw AdBlue® bottle (08) onto AdBlue® tank filler neck finger-tight.
  17. Press AdBlue® bottle (08) onto filler neck of AdBlue® tank and fill AdBlue® tank.

    IMPORTANT Repeat process if necessary using further AdBlue® bottles (08). No further AdBlue® will flow when the AdBlue® container is full.

  18. Unscrew AdBlue® bottle (08) from filler neck of AdBlue® tank and dispose of empty AdBlue® bottles (08) in an environmentally friendly manner.
  19. Screw cap onto filler neck of AdBlue® tank, remove AdBlue® residues with water and close fuel filler flap.
    G12081341Courtesy of MERCEDES-BENZ USA
