Routing Diagram For Poly V-Belt - AR13.22-P-3902-02MM

Engine 157, 276, 278

Shown on engine 276 in model 212.095/195

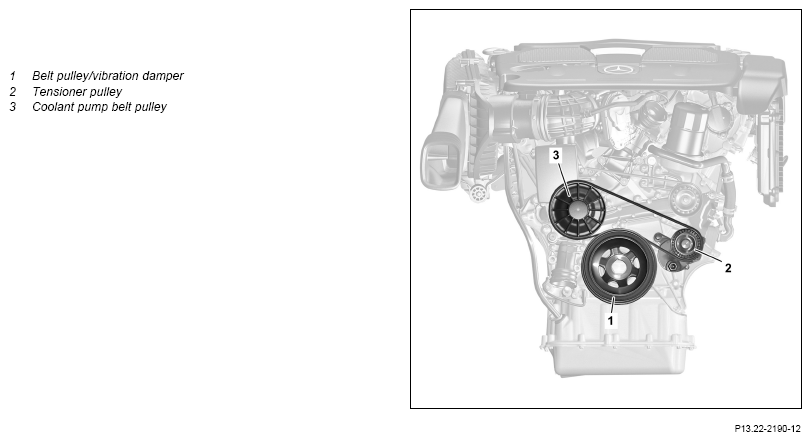

G14134250Courtesy of MERCEDES-BENZ USA

Shown: engine 276 without hydraulic power steering pump

Fig 1: Drive Belt Routing Diagram - Engine 276 Without Hydraulic Power Steering Pump

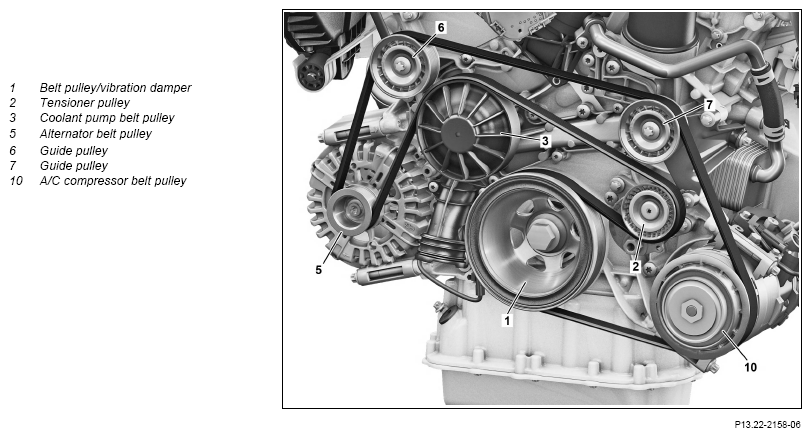

G14134251Courtesy of MERCEDES-BENZ USA

Shown: engine 276 with hydraulic power steering pump

Fig 2: Drive Belt Routing Diagram - Engine 276 With Hydraulic Power Steering Pump

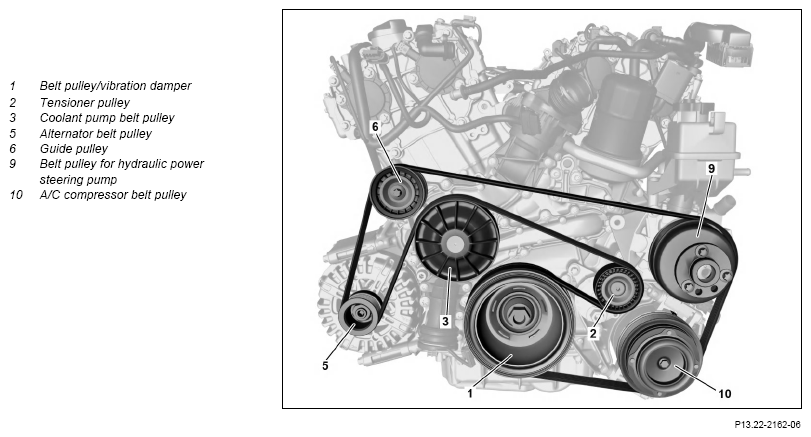

G14134252Courtesy of MERCEDES-BENZ USA

Shown: engine 157, 278 with code 487 (Active Body Control (ABC))

Fig 3: Drive Belt Routing Diagram - Engine 157, 278 With Code 487

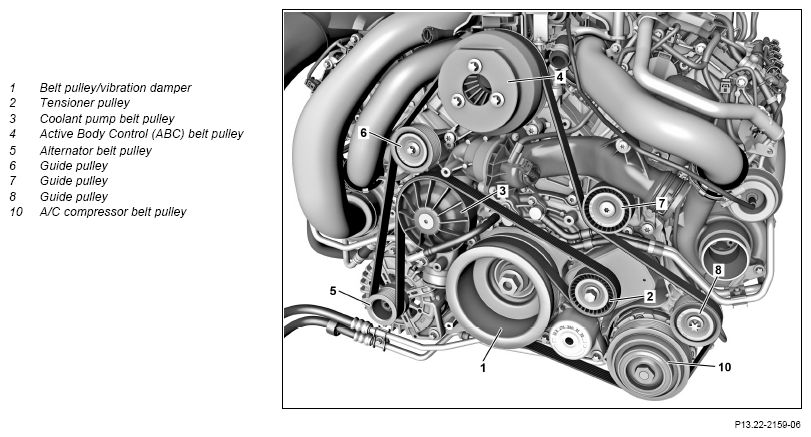

G14134253Courtesy of MERCEDES-BENZ USA

Shown: engine 157, 278 without code 487 (Active Body Control (ABC))

Fig 4: Drive Belt Routing Diagram - Engine 157, 278 Without Code 487
G14134254Courtesy of MERCEDES-BENZ USA

Shown: engine 157, 278 with code ME05 (HYBRID DRIVE 80 kW VARIANT (INCLUDING PLUG-IN))

Fig 5: Drive Belt Routing Diagram - Engine 157, 278 With Code ME05

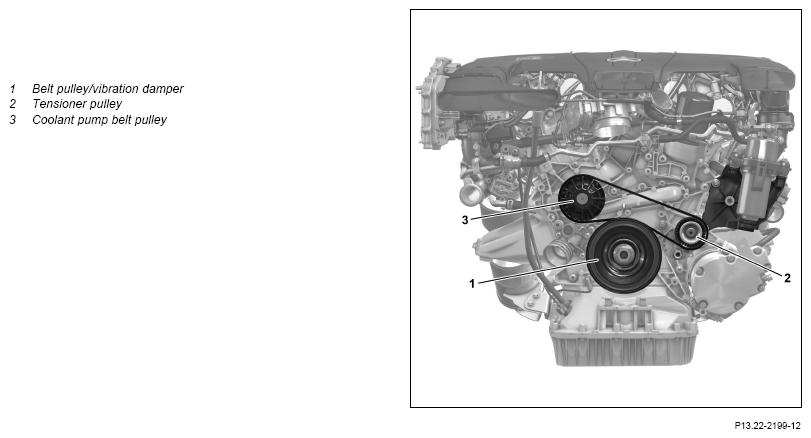

G14134255Courtesy of MERCEDES-BENZ USA

Shown: engine 276.8 with code 468 (ACTIVE CURVE SYSTEM)

Fig 6: Drive Belt Routing Diagram - Engine 276.8 With Code 468

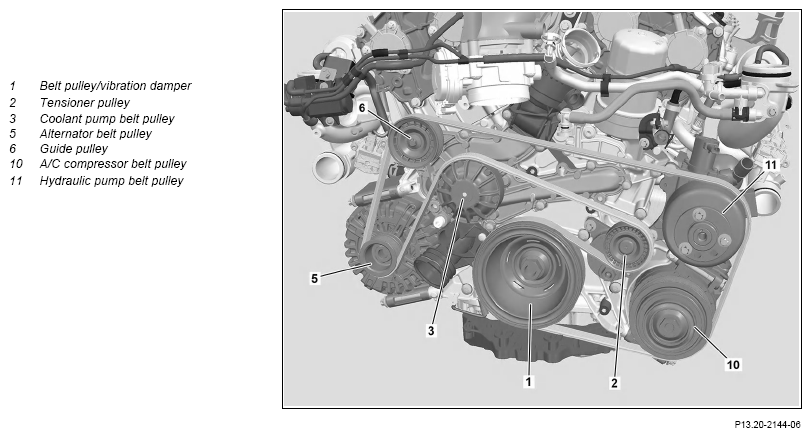

G14134256Courtesy of MERCEDES-BENZ USA
  1. Check installation position of poly-V belt.
