Remove/Install Poly-V-Belt Guide Pulley - AR13.20-P-0015GQC
Engine 276.8 in model 166 (except 166.063), 292

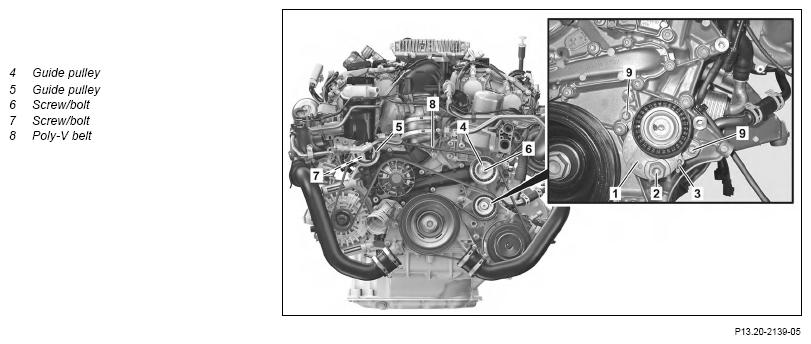

| Remove/install | |||
| 1 | Remove poly-V belt | AR13.22-P-1202GQC | |
| 2.1 | Remove screw/bolt (6) | When removing the guide pulley (4). | |
| *BA13.25-P-1004-01X | |||
| 2.2 | Remove screw/bolt (7) | When removing the guide pulley (5). | |
| *BA13.25-P-1003-01X | |||
| 3 | Remove guide pulley (4) or guide pulley (5) | ||
| 4 | Install in the reverse order |
BELT TENSIONING DEVICE
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA13.25-P-1003-01X | Screw/bolt, guide pulley to carrier | Nm | 25 |
BELT TENSIONING DEVICE
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA13.25-P-1004-01X | Screw/bolt, guide pulley to coolant pump | Nm | 35 |
