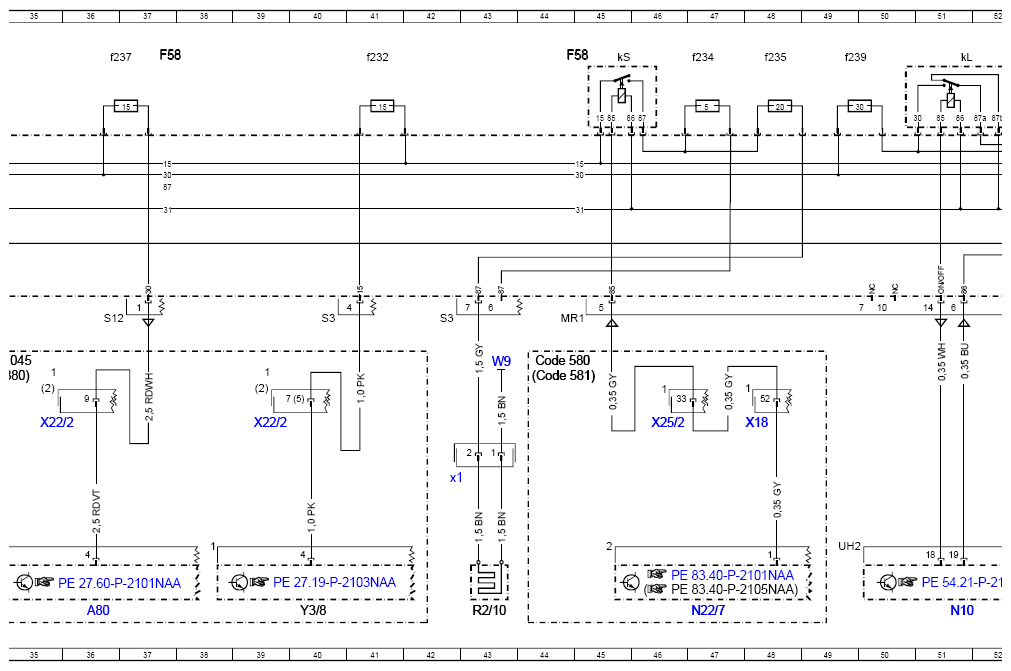

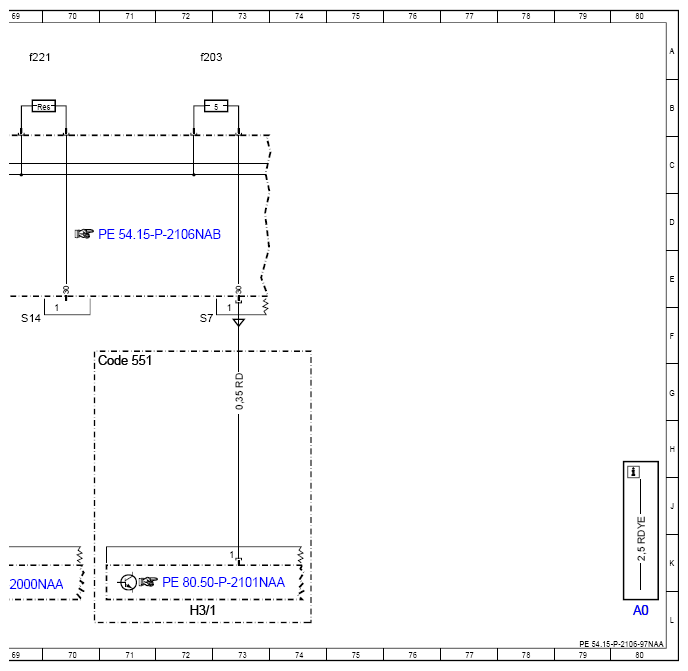

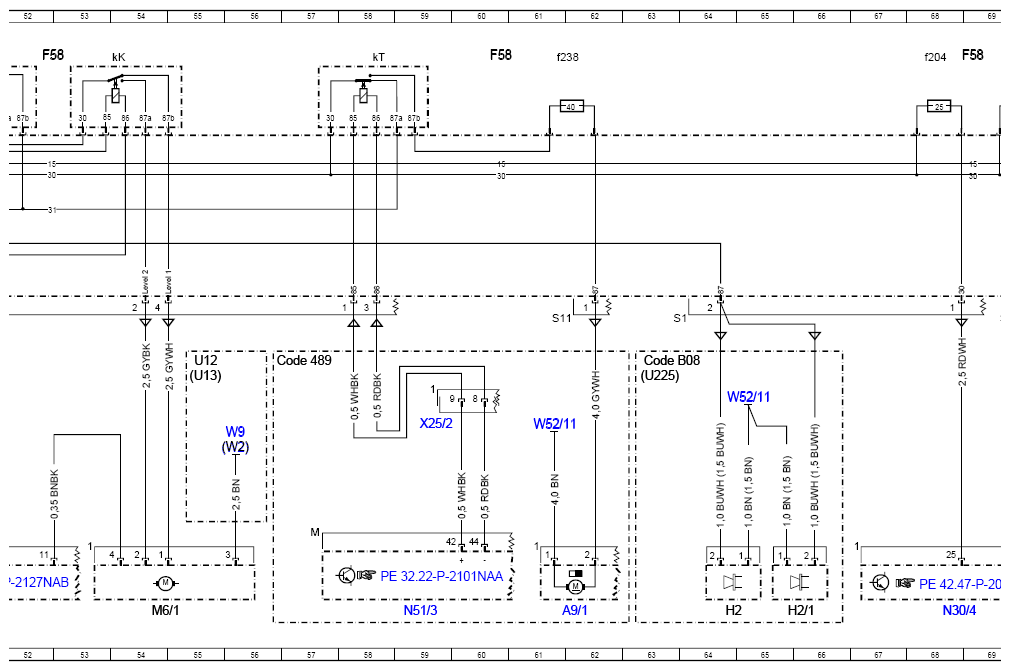

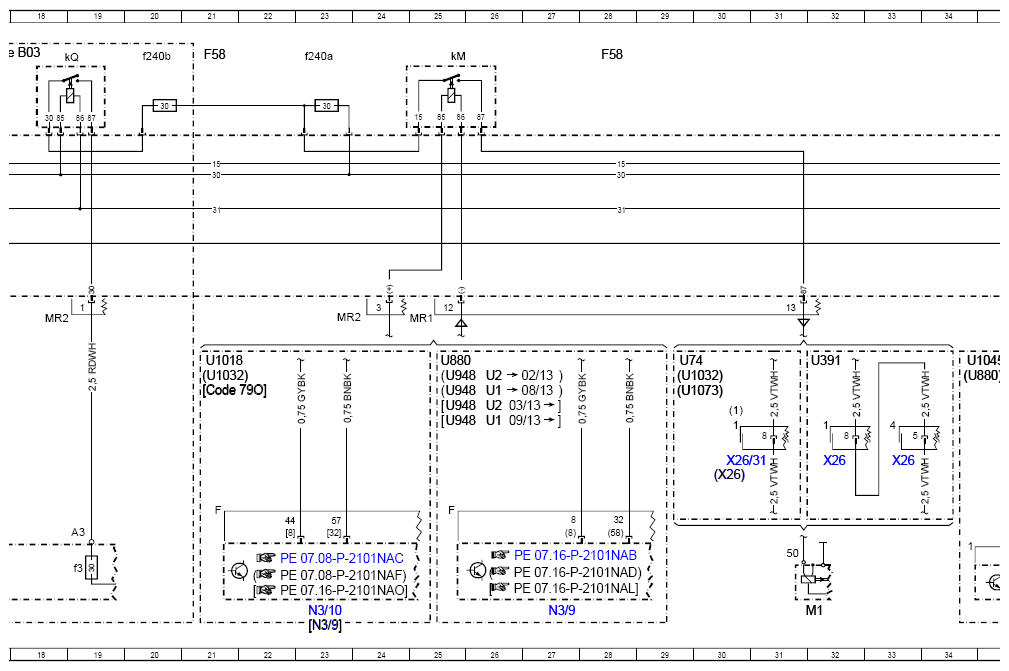

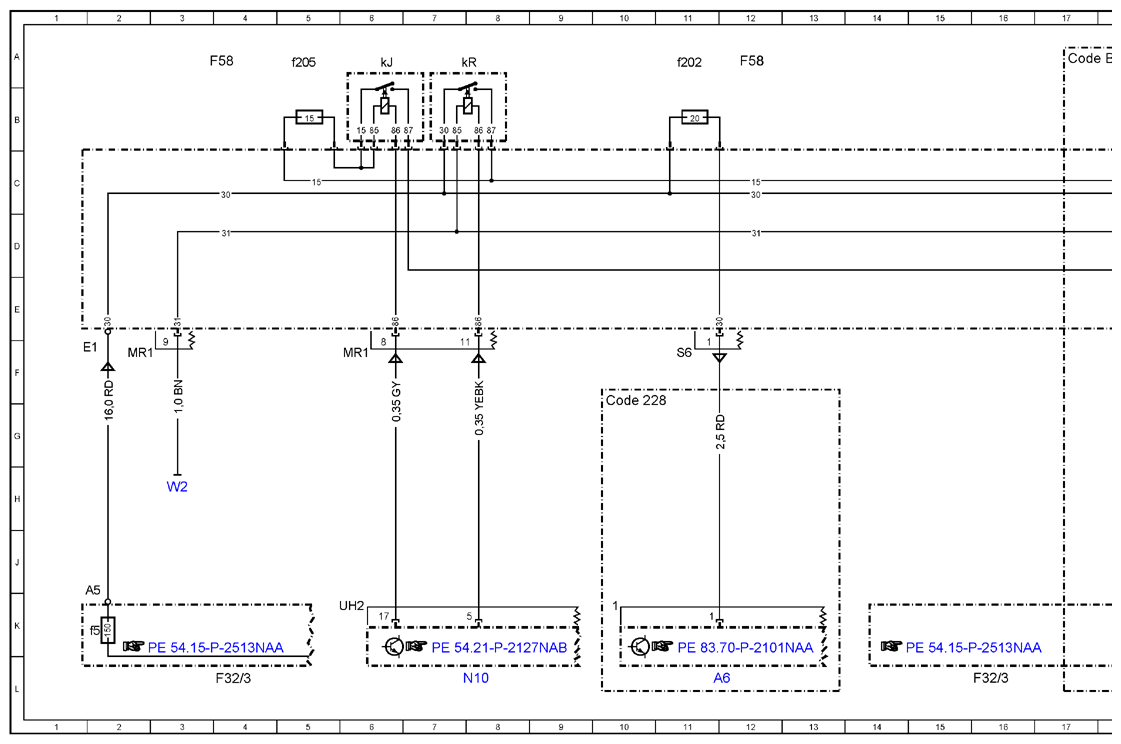

(Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-P-2106-97NAA)
Model 166
up to model year 2016 F58,
sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A6 | Stationary heater unit | 11L |
| A80 | Intelligent servo module for DIRECT SELECT | 36L |
| A9/1 | AIRMATIC compressor | 62L |
| Code 228 | Stationary heater | 10G |
| Code 489 | AIRMATIC | 56G |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 70G |
| Code 580 | Air conditioning | 44G |
| Code 581 | Automatic air conditioning | 44G |
| Code 79O | 21G | |
| Code B03 | ECO start/stop function | 17A |
| Code B08 | Horn (Asia) | 63G |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3 | Engine compartment prefuse box | 16L |
| F32/3f3 | Fuse 3 | 19K |
| F32/3f5 | Fuse 5 | 2K |
| F58 | Engine compartment fuse and relay module | 4A |
| F58 | Engine compartment fuse and relay module | 12A |
| F58 | Engine compartment fuse and relay module | 28A |
| F58 | Engine compartment fuse and relay module | 21A |
| F58 | Engine compartment fuse and relay module | 37A |
| F58 | Engine compartment fuse and relay module | 44A |
| F58 | Engine compartment fuse and relay module | 52A |
| F58 | Engine compartment fuse and relay module | 60A |
| F58 | Engine compartment fuse and relay module | 69A |
| F58f202 | Fuse 202 | 11A |
| F58f203 | Fuse 203 | 72A |
| F58f204 | Fuse 204 | 68A |
| F58f205 | Fuse 205 | 5A |
| F58f221 | Fuse 221 | 69A |
| F58f232 | Fuse 232 | 41A |
| F58f234 | Fuse 234 | 47A |
| F58f235 | Fuse 235 | 48A |
| F58f237 | Fuse 237 | 37A |
| F58f238 | Fuse 238 | 61A |
| F58f239 | Fuse 239 | 49A |
| F58f240a | Fuse 240a | 23A |
| F58f240b | Fuse 240b | 20A |
| F58kJ | Fanfare horn relay | 6A |
| F58kK | Wiper level 1/2 relay | 54A |
| F58kL | Windshield wiper ON/OFF relay | 51A |
| F58kM | Starter circuit 50 relay | 25A |
| F58kQ | Circuit 15 relay (unlatched) | 19A |
| F58kR | Circuit 15 relay | 7A |
| F58kS | Wiper park position heater relay | 45A |
| F58kT | AIRMATIC relay | 58A |
| H2 | Left fanfare horn | 64L |
| H2/1 | Right fanfare horn | 66L |
| H3/1 | Alarm siren | 72L |
| M1 | Starter | 32L |
| M6/1 | Wiper motor | 54L |
| N10 | SAM control unit | 8L |
| N10 | SAM control unit | 51L |
| N22/7 | Automatic air conditioning control and operating unit | 47L |
| N3/10 | ME-SFI [ME] control unit | 23L |
| N3/9 | CDI control unit | 27L |
| N3/9 | CDI control unit | 23L |
| N30/4 | Electronic Stability Program control unit | 68L |
| N51/3 | AIRMATIC control unit | 59L |
| R2/10 | Wiper park heater | 43L |
| R2/10x1 | Wiper park position heater electrical connector | 42J |
| U1 | Valid for USA | 26G |
| U1 | Valid for USA | 26H |
| U1018 | Valid for gasoline engine 276 | 21G |
| U1032 | Valid for engine 278 and 157 | 21G |
| U1032 | Valid for engine 278 and 157 | 29G |
| U1045 | Not valid for diesel engine 642 | 34G |
| U1073 | Valid for gasoline engine 276.9 | 29G |
| U12 | Valid for left-hand drive vehicles | 55G |
| U13 | Valid for right-hand drive vehicles | 55G |
| U2 | Valid for all except USA | 26G |
| U2 | Valid for all except USA | 26G |
| U225 | Valid for all except China | 63G |
| U391 | Valid for gasoline engine 276.8 | 32G |
| U74 | Valid for diesel engines | 29G |
| U880 | Valid for engine 642 | 25G |
| U880 | Valid for engine 642 | 34G |
| U948 | Valid for diesel engine 651 | 25G |
| U948 | Valid for diesel engine 651 | 25H |
| U948 | Valid for diesel engine 651 | 25G |
| W2 | Right front ground point at lamp unit | 3H |
| W2 | Right front ground point at lamp unit | 56H |
| W52/11 | Upper right front longitudinal member ground point | 65G |
| W52/11 | Upper right front longitudinal member ground point | 61H |
| W9 | Left front ground point (at lamp unit) | 43G |
| W9 | Left front ground point (at lamp unit) | 56H |
| X18 | Vehicle interior and harness for taillamp electrical connector | 48H |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 35H |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 39H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 46H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 59H |
| X26 | Interior and engine wiring harness electrical connector | 30J |
| X26 | Interior and engine wiring harness electrical connector | 32H |
| X26 | Interior and engine wiring harness electrical connector | 33H |
| X26/31 | Engine/engine compartment electrical connector | 30H |
| Y3/8 | Fully integrated transmission control control unit | 40L |
