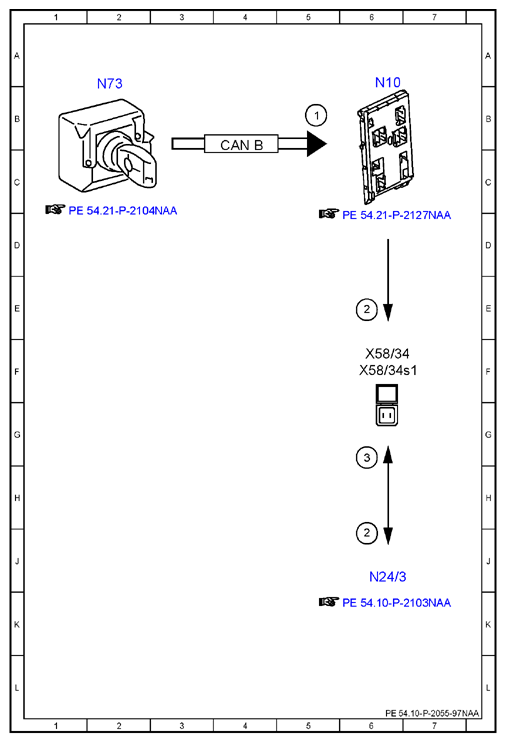

(Electrical Function Schematic For DC/AC Converter - PE54.10-P-2055-97NAA)
MODEL 166
up to model year 2016
with CODE U80 (115 V socket)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5B |
| 2 | Power supply, status ON | 6E |
| 2 | Power supply, status ON | 6J |
| 3 | 115 V socket, actuation | 6G |
| CAN B | Interior CAN | 4C |
| N10 | SAM control unit | 6B |
| N24/3 | DC/AC converter control unit | 6J |
| N73 | Electronic ignition switch control unit | 2B |
| X58/34 | 115 V socket | 6F |
| X58/34s1 | Socket microswitch | 6F |
