Retrofit Head-Up Display - AZ54.30-P-0002GQ

Model 166.### (except 166.064/074/075/874/875) 1#

except code 500A (Exclusive nappa leather upholstery)

except code 530A (AMG Exclusive nappa leather upholstery)

except code X00 (designo Exclusive package)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove instrument cluster (A1)
			AR54.30-P-6015GQ
2	Remove paneling from left A-pillar
			AR68.30-P-4050WX
3	Release defroster cover at left from instrument panel upper part (4) in front area
	Install
4	Retrofit head-up display wiring harness		AZ54.30-P-0002-01GQ

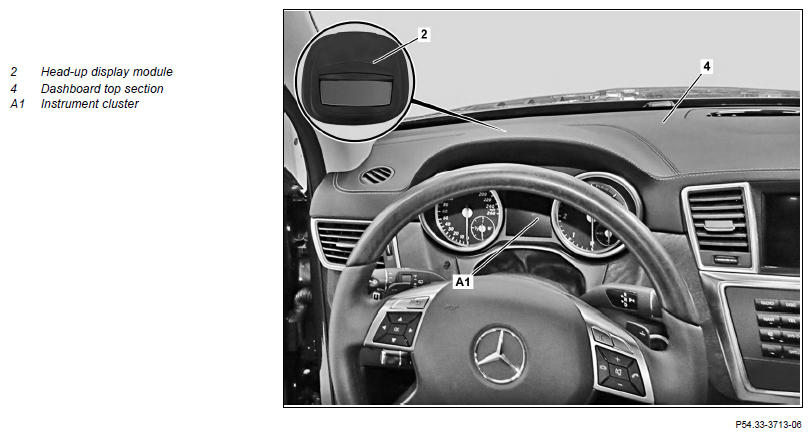

5	Retrofit head-up display module (2)		AZ54.30-P-0002-02GQ
		Cleaner	*BR00.45-Z-1025-04A
		3M Acrylic Plus adhesive tape PT1100, double sided, black, 12 mm wide	*BR00.45-Z-1159-02A
6	Install remaining parts
	Update Vehicle Documentation (VeDoc)
7	Enter special equipment in on-line vehicle data card	CODE 34O (Frontal display accessory (head-up display)) Ensure here that the third digit is the letter "O" for Oscar.
8	Attach note "Head-up display retrofitted as per AZ54.30-P-0002GQ" under field organization texts to design group 54
9	Connect diagnostic system and select vehicle using vehicle identification number (VIN)
			AD00.00-P-2000-04A
10	Perform commissioning of head-up display control unit using diagnostic system
11	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
12	Run function check of head-up display module (2)	See Owner's Manual.
