Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006GQ
Model 166
with code 220 (PARKTRONIC system (PTS))
Shown on model 166.0
Shown on MODEL 166.8
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission parking system control unit (N62) | When replacing the parking system control unit (N62). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3.1 | Remove backrest in left rear | Model 166.0 with code 220 (PARKTRONIC system (PTS)) | AR91.12-P-1620GQ |
| 3.2 | Fold back left rear seat | Model 166.8 with code 220 (PARKTRONIC system (PTS)) | |
| 4 | Fold up left seat cushion | Model 166.0 with code 220 (PARKTRONIC system (PTS)) | |
| 5 | Remove left rear door sill molding | AR68.30-P-4100GQ | |
| 6.1 | Lift floor covering | Model 166.0 with code 220 (PARKTRONIC system (PTS)) | AR68.20-P-4800GQ |
| 6.2 | Remove side paneling in left side of luggage compartment | Model 166.8 with code 220 (PARKTRONIC system (PTS)) | AR68.30-P-4800GQX |

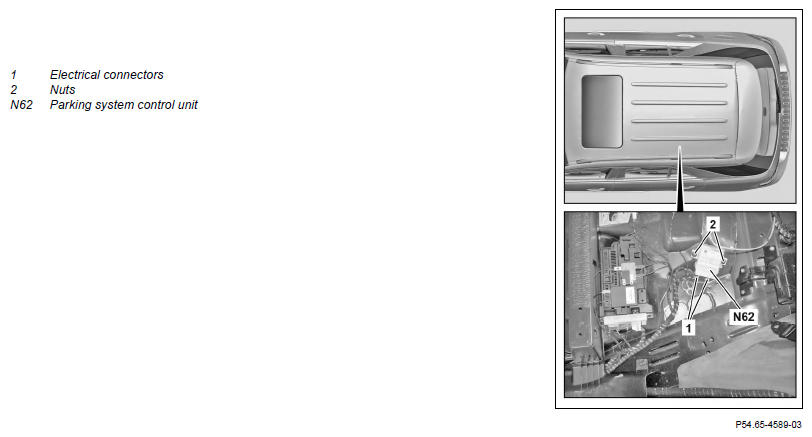

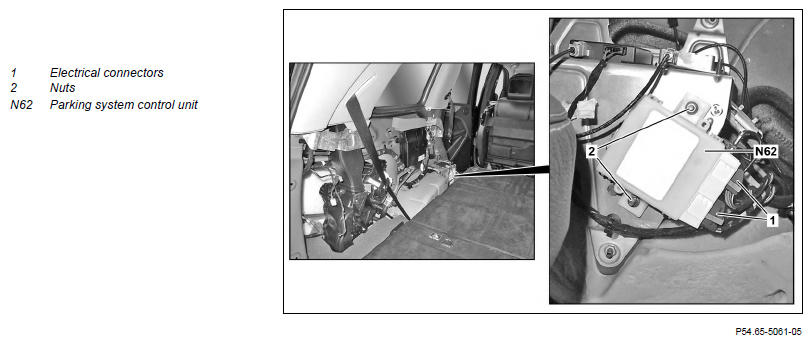

| 7 | Separate electrical connections (1) | ||
| 8 | Unscrew nuts (2) | ||
| 9 | Remove parking system control unit (N62) | ||
| 10 | Install in the reverse order |
