Remove/Install Fuse And Relay Box In Rear - AR54.15-P-1261GQ

Model 166, 292

Courtesy of MERCEDES-BENZ USA

Shown on model 166.024

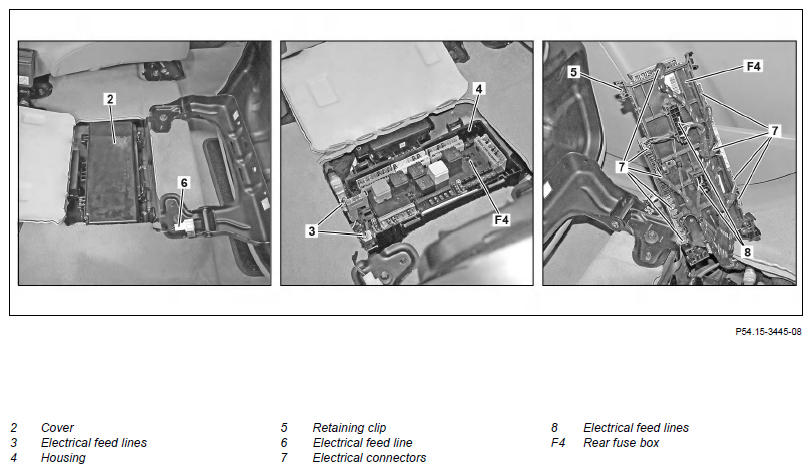

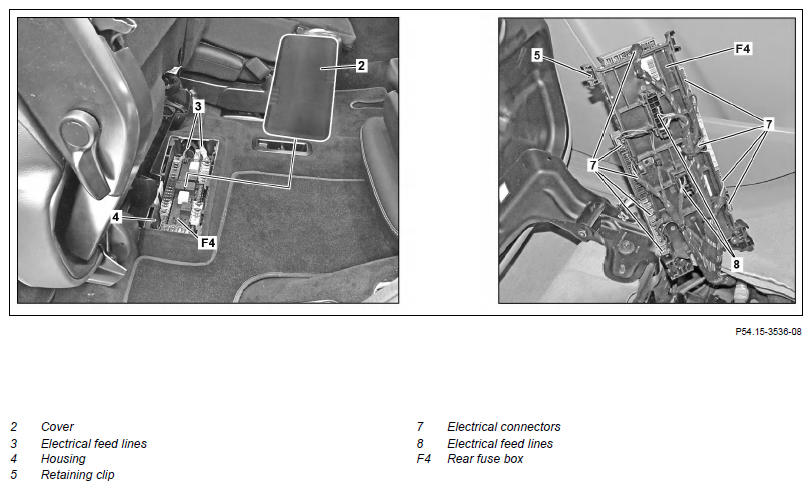

Fig 1: Rear Fuse And Relay Box Components Location - Model 166 (Shown On Model 166.873)

Courtesy of MERCEDES-BENZ USA

Shown on model 166.873

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003GZ
	Notes on battery		AH54.10-P-0001-01A
2.1	Fold right seat cushion in rear forward and fold back floor covering	Model 166.0
2.2	Fold left rear seat forward	Model 166.8
2.3	Fold right seat cushion in rear forwards	Model 292
3	Remove cover (2)
4	Unclip electrical feed line (6) from seat cushion in rear
5	Detach electrical feed lines (3) from rear fuse box (F4)
6	Unclip rear fuse box (F4) from housing (4) and remove	Clip (5) must latch audibly into housing (4).
7	Detach cable tie from electrical feed lines (8)	Replace cable tie.
8	Release and disconnect electrical feed lines (8) from rear fuse box (F4)
9	Detach electrical connections (7) from rear fuse box (F4) and rear fuse box (F4)	Number of electrical connections (7) and fuse assignment varies depending on vehicle model and equipment.
10	Install in the reverse order
