Remove/Install Right Front Floor Covering - AR68.20-P-2070GQ
Model 166, 292
MODIFICATION NOTES
| 4.1.16 | Release front seat but do not remove. | Operation step 1 | |
| 4.1.16 | New operation step added | Operation step 2 |

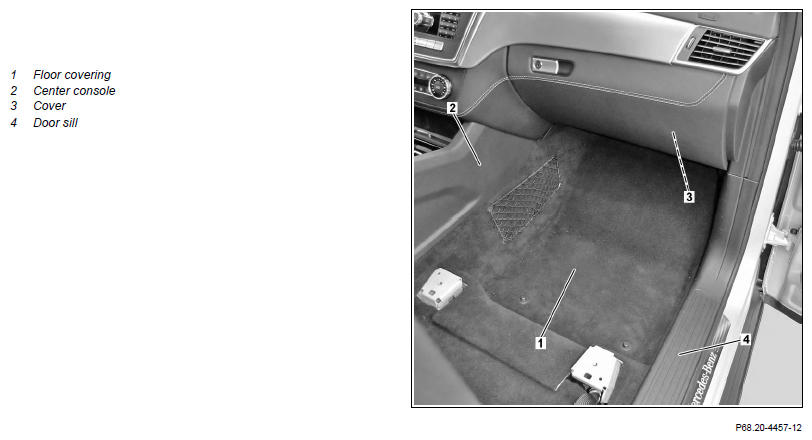

Shown on model 166
| Remove/install | |||
| 1 | Loosen right front seat | AR91.10-P-1000GQ | |
| 2 | Slide right front seat backwards as far as possible and fold back | ||
| 3 | Remove right front door sill (4) | AR68.30-P-4100GQ | |
| 4 | Remove cover (3) below instrument panel | AR68.10-P-1520GQ | |
| 5 | Slightly lift floor covering (1) at entrance | ||
| 6 | Pull floor covering (1) out below center console (2) | ||
| 7 | Remove floor covering (1) | ||
| 8 | Install in the reverse order |
