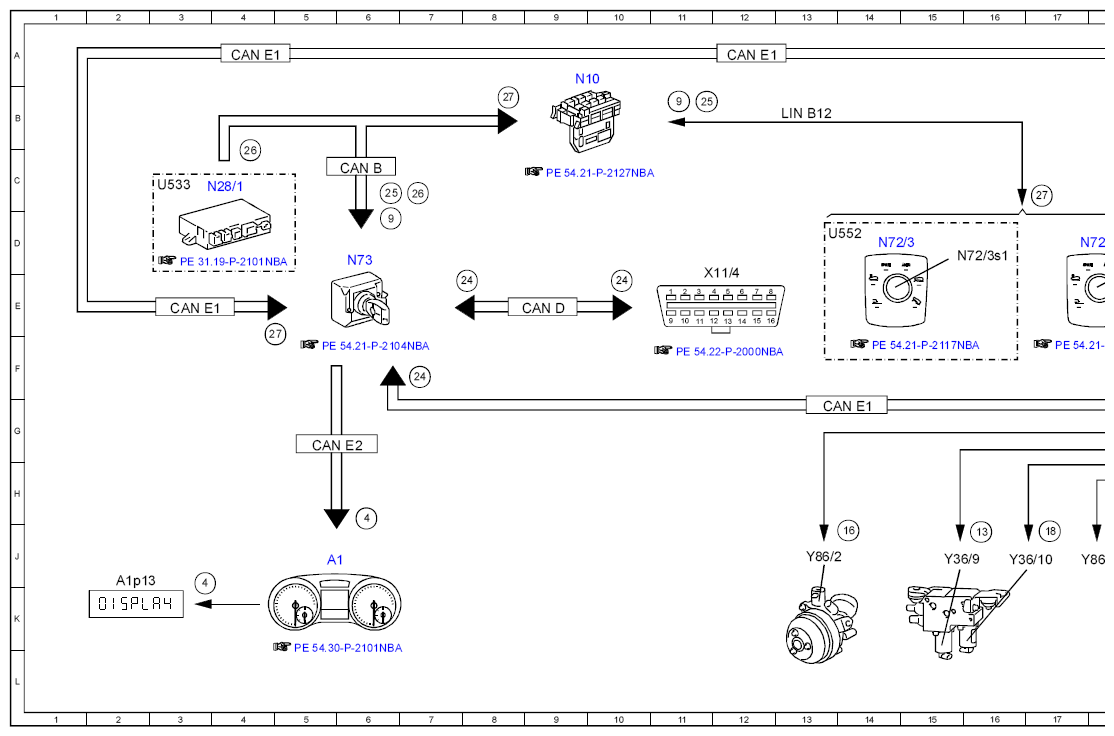

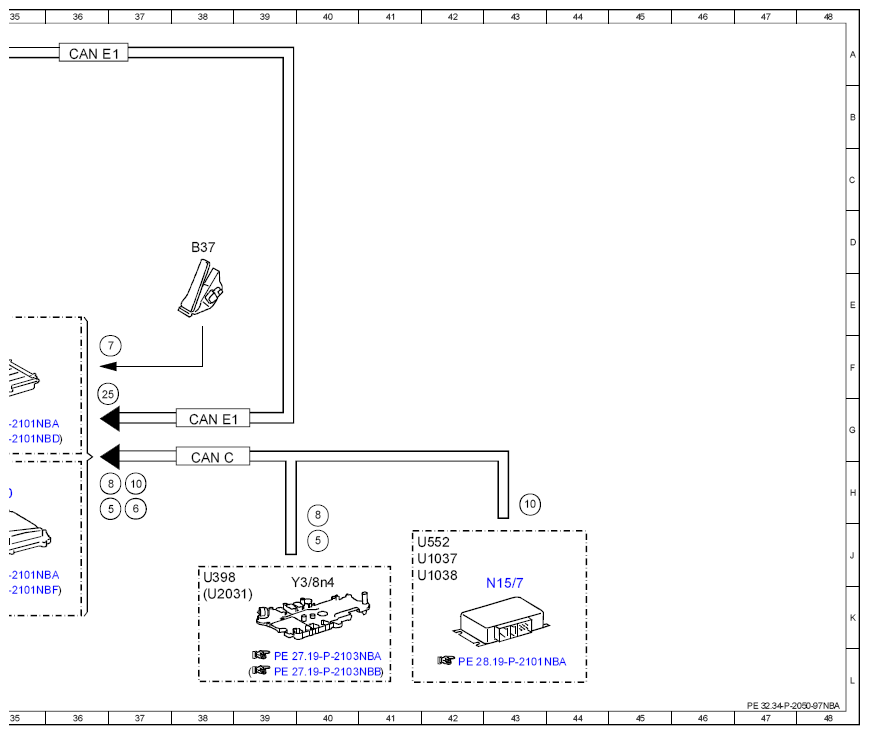

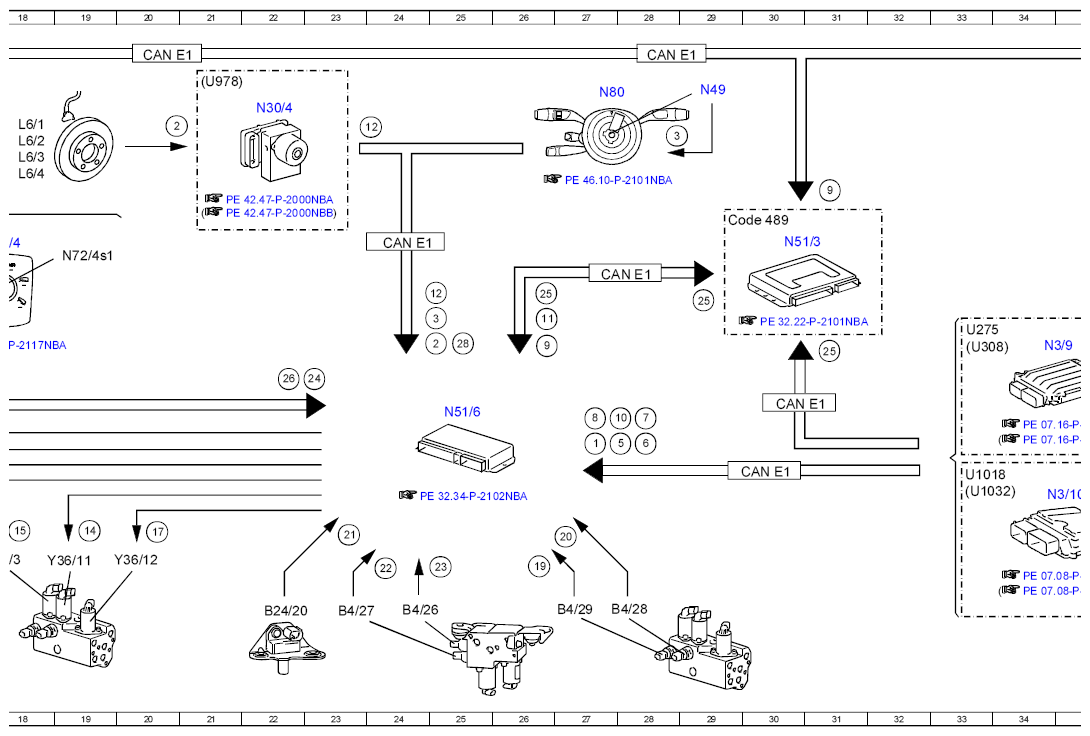

Electrical Function Schematic For Active Roll Stabilization - PE32.34-P-2050-97NBA
MODEL 166 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM)
MODEL 292 with CODE 468 (ACTIVE CURVE SYSTEM)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 27G |
| 10 | Transfer case, status | 43H |
| 10 | Transfer case, status | 37H |
| 10 | Transfer case, status | 27G |
| 11 | Vehicle level, status | 26E |
| 12 | ESP®, status | 24B |
| 12 | ESP®, status | 25E |
| 13 | Active roll stabilization rear axle directional control valve, actuation | 16J |
| 14 | Active roll stabilization front axle directional control valve, actuation | 19J |
| 15 | Active roll stabilization safety valve, actuation | 18J |
| 16 | Active roll stabilization intake throttle valve, actuation | 14J |
| 17 | Active roll stabilization front axle pressure regulating valve, actuation | 20J |
| 18 | Active roll stabilization rear axle pressure regulating valve, actuation | 17J |
| 19 | Active roll stabilization front axle pressure sensor 2, signal | 26J |
| 2 | Wheel speed, signal | 20B |
| 2 | Wheel speed, signal | 25F |
| 20 | Active roll stabilization front axle pressure sensor 1, signal | 27J |
| 21 | Active roll stabilization lateral acceleration sensor, signal | 23J |
| 22 | Active roll stabilization rear axle pressure sensor 2, signal | 24J |
| 23 | Active roll stabilization rear axle pressure sensor 1, signal | 25J |
| 24 | Diagnosis, communication | 8E |
| 24 | Diagnosis, communication | 10E |
| 24 | Diagnosis, communication | 23F |
| 24 | Diagnosis, communication | 7F |
| 25 | Transmission mode control, signal | 7C |
| 25 | Transmission mode control, signal | 11B |
| 25 | Transmission mode control, signal | 26E |
| 25 | Transmission mode control, signal | 29E |
| 25 | Transmission mode control, signal | 31E |
| 25 | Transmission mode control, signal | 37F |
| 26 | Trailer recognition, status | 4C |
| 26 | Trailer recognition, status | 7C |
| 26 | Trailer recognition, status | 22F |
| 27 | Light-emitting diode, request | 8B |
| 27 | Light-emitting diode, request | 17C |
| 27 | Light-emitting diode, request | 5E |
| 28 | Steering wheel velocity, signal | 25F |
| 3 | Steering wheel angle sensor, signal | 25E |
| 3 | Steering wheel angle sensor, signal | 28B |
| 4 | Instrument cluster, message | 6H |
| 4 | Instrument cluster, message | 3J |
| 5 | Transmission control, status | 28G |
| 5 | Transmission control, status | 40J |
| 5 | Transmission control, status | 37H |
| 6 | Gear range, status | 28G |
| 6 | Gear range, status | 37H |
| 7 | Accelerator pedal sensor, signal | 37F |
| 7 | Accelerator pedal sensor, signal | 28G |
| 8 | Selector lever position, status | 37H |
| 8 | Selector lever position, status | 40H |
| 8 | Selector lever position, status | 27G |
| 9 | Vehicle level button, status | 11B |
| 9 | Vehicle level button, status | 6D |
| 9 | Vehicle level button, status | 26F |
| 9 | Vehicle level button, status | 31C |
| A1 | Instrument cluster | 5J |
| A1p13 | Multifunction display | 2J |
| B24/20 | Active roll stabilization lateral acceleration sensor | 22K |
| B37 | Accelerator pedal sensor | 38D |
| B4/26 | Active roll stabilization rear axle pressure sensor 1 | 24K |
| B4/27 | Active roll stabilization rear axle pressure sensor 2 | 23K |
| B4/28 | Active roll stabilization front axle pressure sensor 1 | 28K |
| B4/29 | Active roll stabilization front axle pressure sensor 2 | 27K |
| CAN B | Interior CAN | 6C |
| CAN C | Drive train CAN | 38H |
| CAN D | Diagnostic CAN | 9E |
| CAN E1 | Chassis CAN 1 | 30H |
| CAN E1 | Chassis CAN 1 | 24D |
| CAN E1 | Chassis CAN 1 | 27E |
| CAN E1 | Chassis CAN 1 | 13G |
| CAN E1 | Chassis CAN 1 | 3E |
| CAN E1 | Chassis CAN 1 | 4A |
| CAN E1 | Chassis CAN 1 | 30G |
| CAN E1 | Chassis CAN 1 | 38G |
| CAN E1 | Chassis CAN 1 | 12A |
| CAN E1 | Chassis CAN 1 | 20A |
| CAN E1 | Chassis CAN 1 | 28A |
| CAN E1 | Chassis CAN 1 | 36A |
| CAN E2 | Chassis CAN 2 | 5G |
| Code 489 | AIRMATIC | 29D |
| L6/1 | Left front axle rpm sensor | 18B |
| L6/2 | Right front axle rpm sensor | 18B |
| L6/3 | Left rear axle rpm sensor | 18C |
| L6/4 | Right rear axle rpm sensor | 18C |
| LIN B12 | Center console switch LIN | 13B |
| N10 | SAM control unit | 9A |
| N15/7 | Transfer case control unit | 43K |
| N28/1 | Trailer recognition control unit | 4C |
| N3/10 | ME-SFI [ME] control unit | 35H |
| N3/9 | CDI control unit | 34F |
| N30/4 | Electronic Stability Program control unit | 22B |
| N49 | Steering wheel angle sensor | 29B |
| N51/3 | AIRMATIC control unit | 30D |
| N51/6 | Active roll stabilization control unit | 25G |
| N72/3 | Off-Road operating panel control unit | 14D |
| N72/3s1 | Off-Road package transmission mode controller | 16D |
| N72/4 | Transmission modes control panel | 18D |
| N72/4s1 | Transmission mode control | 19D |
| N73 | Electronic ignition switch control unit | 6D |
| N80 | Steering column module control unit | 27B |
| U1018 | Valid for gasoline engine 276 | 33H |
| U1032 | Valid for engine 278 and 157 | 33H |
| U1037 | Valid for vehicle model designation 166.0 | 41J |
| U1038 | Valid for vehicle model designation 166.8 | 41J |
| U2031 | Valid for transmission 724 | 38K |
| U275 | Valid for engine 642.8 | 33E |
| U308 | Valid for diesel engine 651.9 | 33F |
| U398 | Valid for transmission 725 (NAG3) | 38J |
| U533 | Valid for trailer hitch | 3C |
| U552 | Valid for on-road/off-road package | 41J |
| U552 | Valid for on-road/off-road package | 13D |
| U978 | Valid for hybrid drive | 21A |
| X11/4 | Diagnostic connector | 12E |
| Y3/8n4 | Fully integrated transmission control unit | 40K |
| Y36/10 | Active roll stabilization rear axle pressure regulating valve | 16J |
| Y36/11 | Active roll stabilization front axle directional control valve | 19J |
| Y36/12 | Active roll stabilization front axle pressure regulating valve | 20J |
| Y36/9 | Active roll stabilization rear axle directional control valve | 15J |
| Y86/2 | Active roll stabilization intake throttle valve | 13J |
| Y86/3 | Active roll stabilization safety valve | 18J |
