Remove/Install Hydraulic Pump Pulsation Damper - AR32.34-P-0013GQ
MODEL 166, 292 with ENGINE 276 with CODE 468 (ACTIVE CURVE SYSTEM)

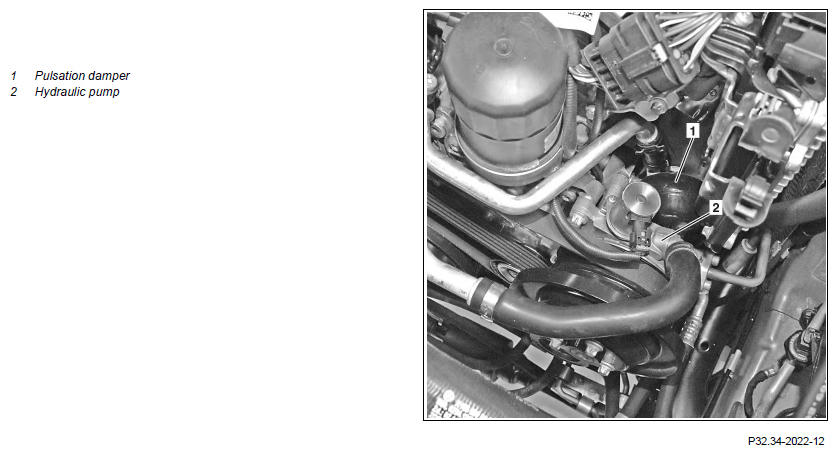

Shown on model 166
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on active roll stabilization | AH32.34-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove hydraulic pump (2) | AR32.34-P-0030GQ | |
| 2 | Unscrew pulsation damper (1) from hydraulic pump (2) | *BA32.00-P-1005-01A | |
| 3 | Install in the reverse order | ||
| 4 | Fill and bleed ACTIVE CURVE SYSTEM | AR32.34-P-0021GQ | |
| Clean | |||
| 5 | Clean the area around the pulsation damper (1) |
HYDRAULIC PUMP
| Number | Designation | Model 166 with engine 276 | Model 292 with engine 276 | |
|---|---|---|---|---|
| BA32.00-P-1005-01A | Pulsation damper to hydraulic pump | Nm | 45 | 45 |
