Routing Diagram Of Poly V-Belt - AR13.22-P-3902-02TI

ENGINE 642

Engine with hydraulic power steering pump

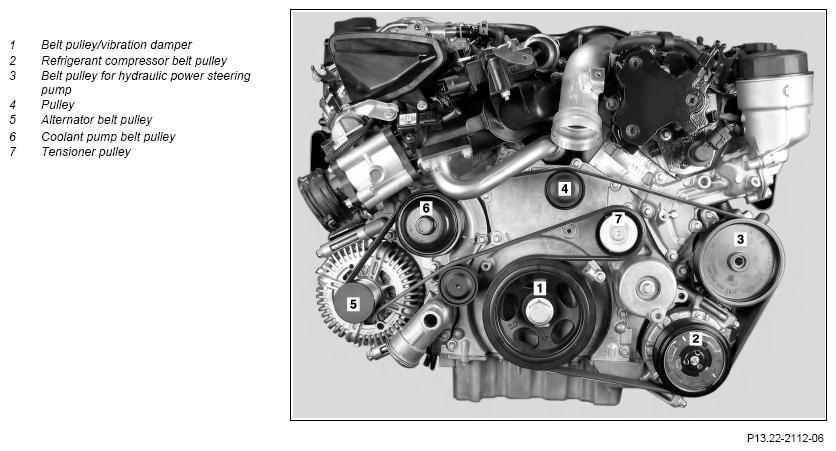

Fig 1: Drive Belt Routing Diagram - Engine 642 With Hydraulic Power Steering Pump
G11972868Courtesy of MERCEDES-BENZ USA

Engine with code (468) ACTIVE CURVE SYSTEM

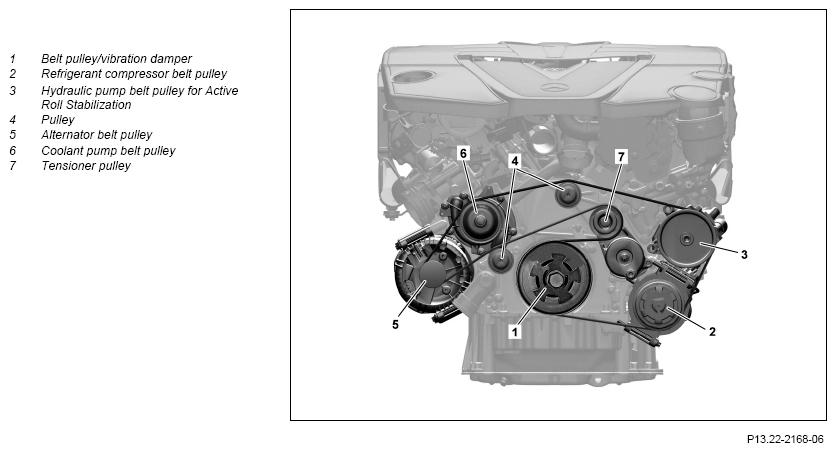

Fig 2: Drive Belt Routing Diagram - Engine 642 With Code (468) Active Curve System
G11972869Courtesy of MERCEDES-BENZ USA
