Remove/Install Propeller Shaft - AR41.10-P-0050GQ

MODEL 166

MODEL 292

MODIFICATION NOTES

22.05.2015

Self-locking bolt on rear propeller shaft/rear axle differential

Model 166

BA41.10-P-1002-01F

Shown on model 166.057

Courtesy of MERCEDES-BENZ USA

	Risk of death when touching components on vehicles with high-voltage on-board electrical system	Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Evaluation of high-voltage components		AH54.00-P-6500-01SXH
	Remove/install
1	Perform disable for the high-voltage on-board electrical system	Model 166.063	AR54.10-P-1150GQA
2	Move A/T into neutral position and switch off ignition
3	Remove components of exhaust system	Model 292 with engine 157, 278	AR49.10-P-7283MLJ
		Model 292 with engine 642	AR49.10-P-7142OGR
		Model 166 with engine 276 Model 166 with engine 278	AR49.10-P-7100GQA
		Model 166 with engine 642, 651	AR49.10-P-7100GQB
4	Remove heat shields

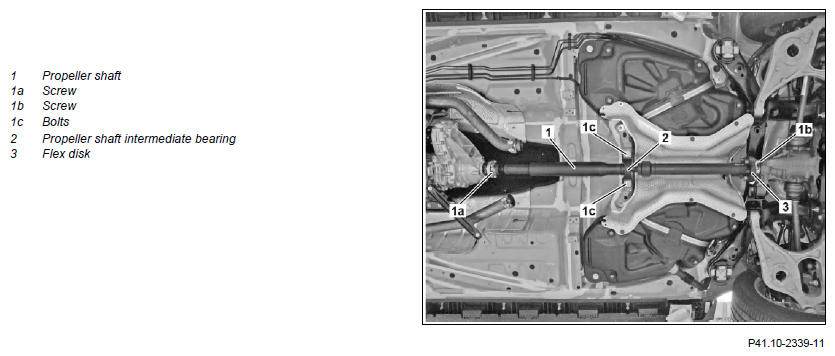

5	Apply color marking to installation position of drive shaft (1) relative to transfer case and differential	Restore ex-factory installation position. Drivetrain vibrations can otherwise occur.
6	Apply color marking to installation position of propeller shaft intermediate bearing (2) relative to vehicle floor	Restore ex-factory installation position. Drive-train vibrations can otherwise occur.
7	Remove bolts (1a)	Tightening procedure for rear propeller shaft to transfer case	AR41.10-P-0050-17GZ
		Observe tightening procedure. Self-locking screw/bolt of propeller shaft at transfer case/adapter housing (to rear axle)	*BA41.10-P-1001-01F
		Retainer wrench	Fig 1
8	Remove bolts (1b)	The flexible coupling (3) remains on the drive shaft (1). Self-locking screw/bolt on rear propeller shaft/rear axle differential	*BA41.10-P-1002-01F
9	Release pilot bushing of flexible coupling (3)	Drift for releasing the fitting sleeves in the flexible couplings If necessary.	WF58.50-P-4110-01A
10	Unscrew bolts (1c) and remove propeller shaft (1) downward	Do not kink the propeller shaft (1). Otherwise, the seal boot on the propeller shaft intermediate bearing (2) will be damaged. Secure propeller shaft (1) against falling down. Bolt, propeller shaft intermediate bearing to frame floor assembly	*BA41.40-P-1001-01C
	Check
11	Check flexible coupling (3)	Check for cracking, fraying, wear, damage and deformation; replace if necessary.
12	Install in the reverse order

PROPELLER SHAFT

Number	Designation			Model 166	Model 292
BA41.10-P-1001-01F	Self-locking screw/bolt of propeller shaft at transfer case/adapter housing (to rear axle)	Stage 1	Nm	40	40
BA41.10-P-1001-01F		Stage 2	°	90	90

PROPELLER SHAFT

Number	Designation				Model 166	Model 292
BA41.10-P-1002-01F	Self-locking screw/bolt on rear propeller shaft/rear axle differential	Self-locking nut		Nm	68	-
		Direct threaded connection	Stage 1	Nm	60	60
		Direct threaded connection	Stage 2	∠°	90	90

PROPELLER SHAFT INTERMEDIATE BEARING

Number	Designation		Model 166	Model 292
BA41.40-P-1001-01C	Bolt, propeller shaft intermediate bearing to frame floor assembly	Nm	40	40

Fig 1: Identifying Retainer Wrench (164 589 02 07 00)

Courtesy of MERCEDES-BENZ USA
