Remove/Install Fender Liner Front Section In Front Fender - AR88.10-P-1310GQ
MODEL 166, 292

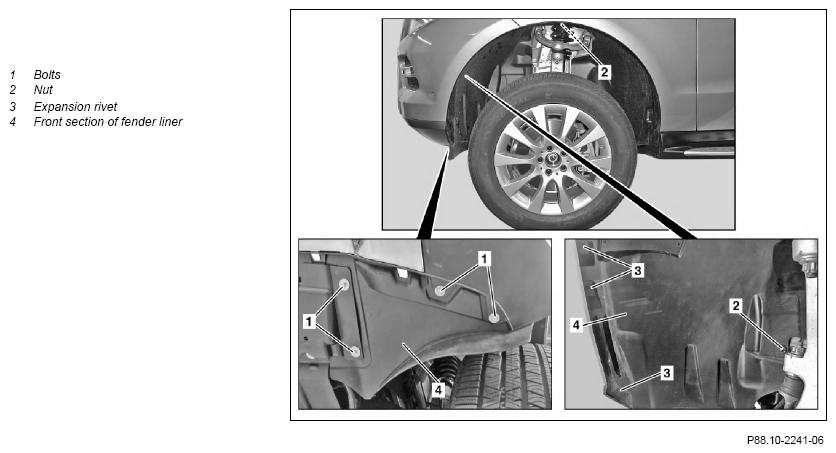

Shown on model 166
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000GZ | |
| 2 | Remove bolts (1) | ||
| 3 | Unscrew nuts (2) | ||
| 4 | Remove expansion rivets (3) | Fig 1 | |
| 5 | Lift rear section of fender liner at top overlap with long wedge until front section of fender liner (4) is accessible | Figure | |
| 6 | Remove front fender liner section (4) from fender | ||
| 7 | Install in the reverse order |
