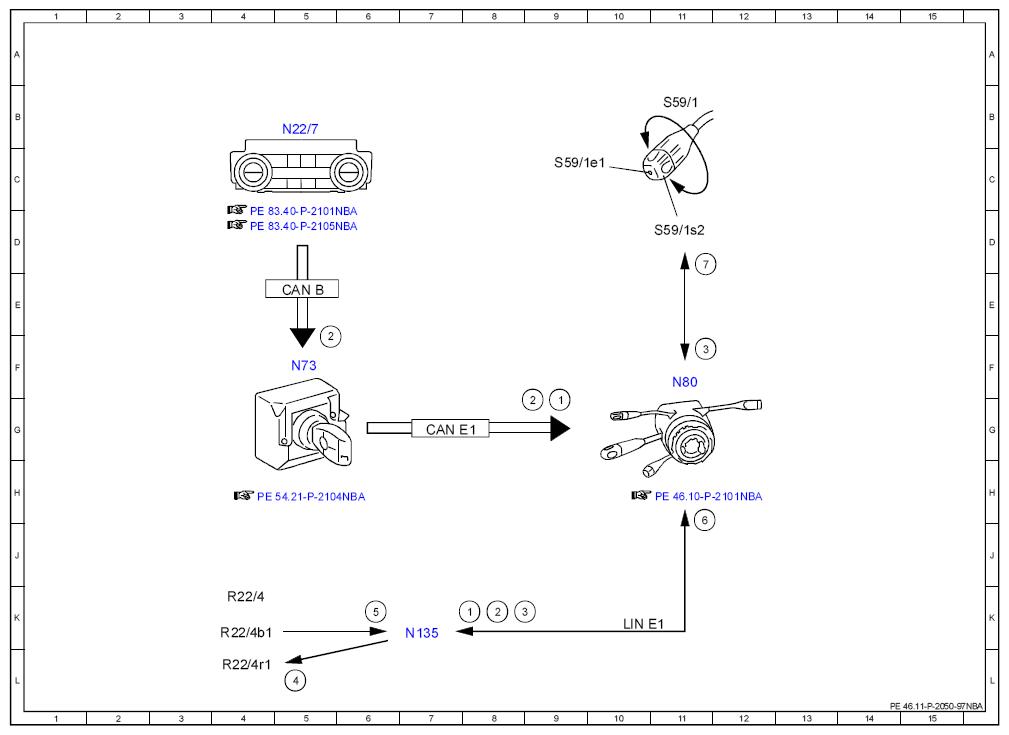

Function Schematic Of Electrical System For Steering Wheel Heater - PE46.11-P-2050-97NBA
MODEL 166 as of model year 2016 with CODE 443 (Steering wheel heater)
MODEL 292 with CODE 443 (Steering wheel heater)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9G |
| 1 | Circuit 15, status | 8K |
| 2 | Vehicle interior temperature, signal | 9G |
| 2 | Vehicle interior temperature, signal | 8K |
| 2 | Vehicle interior temperature, signal | 6E |
| 3 | Steering wheel heater switch, status | 11F |
| 3 | Steering wheel heater switch, status | 8K |
| 4 | Steering wheel heater, actuation | 5L |
| 5 | Heating element temperature sensor, signal | 6K |
| 6 | Steering wheel heater, status | 11J |
| 7 | Indicator lamp, actuation | 11D |
| CAN B | Interior CAN | 5E |
| CAN E1 | Chassis CAN 1 | 7G |
| LIN E1 | Steering LIN | 10K |
| N135 | Steering wheel electronics | 7K |
| N22/7 | Automatic air conditioning control and operating unit | 5B |
| N73 | Electronic ignition switch control unit | 5F |
| N80 | Steering column module control unit | 11F |
| R22/4 | Steering wheel heater | 4K |
| R22/4b1 | Heating element temperature sensor | 4K |
| R22/4r1 | Steering wheel heater heating element | 4L |
| S59/1 | Steering column adjustment and steering wheel heater switch | 11B |
| S59/1e1 | Steering wheel heater indicator lamp | 9C |
| S59/1s2 | Steering wheel heater switch | 11D |
