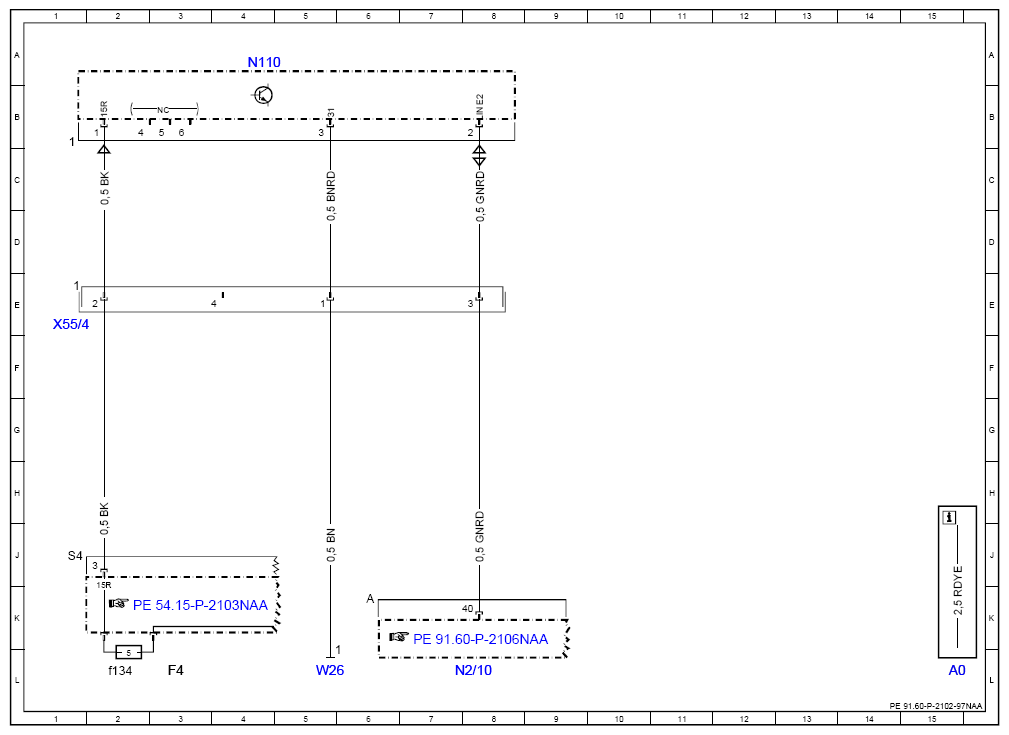

Wiring Diagram For Weight Sensing System (WSS) Control Unit - PE91.60-P-2102-97NAA
MODEL 166 up to model year 2016 with CODE U10 (Front passenger seat with weight sensor)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| F4 | Rear fuse box | 3L |
| F4f134 | Fuse 134 | 2L |
| N110 | Weight Sensing System (WSS) control unit | 4A |
| N2/10 | Supplemental restraint system control unit | 8L |
| W26 | Supplemental restraint system control unit ground point | 5L |
| X55/4 | Front passenger seat connector block | 1E |
