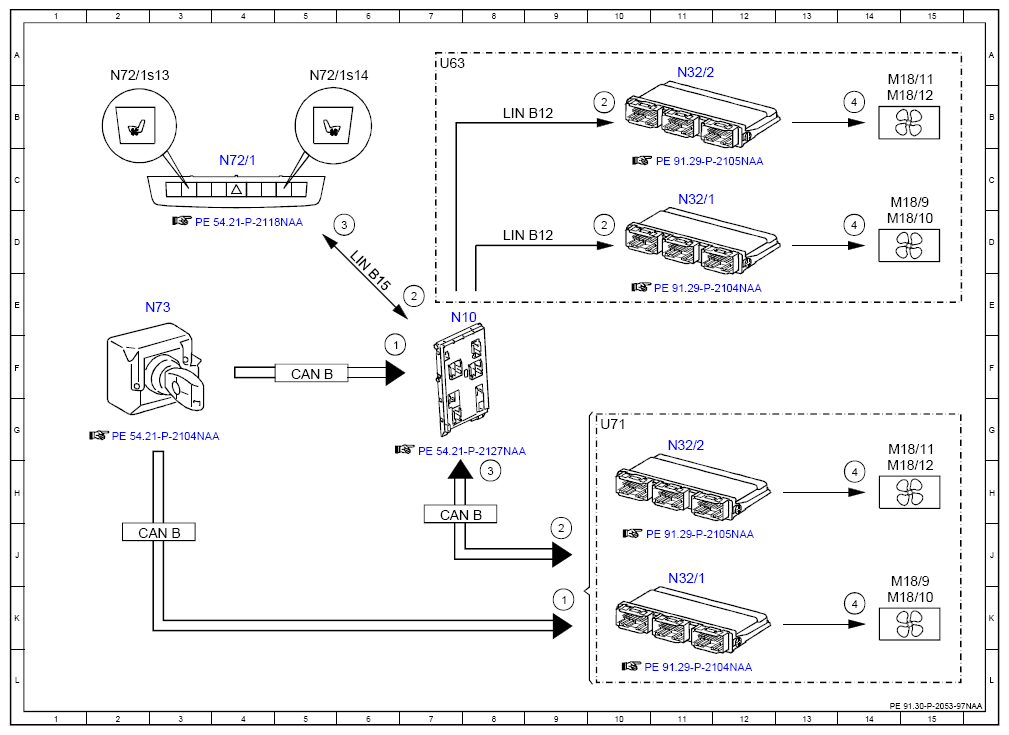

Seat Ventilation Electrical Function Schematic - PE91.30-P-2053-97NAA

MODEL 166 up to model year 2016 with CODE 401 (Front deluxe seats, incl. seat heating and seat ventilation)

Code:	Designation:	Position:
1	Circuit 15, status	9K
1	Circuit 15, status	6F
2	Seat ventilation button, status	7E
2	Seat ventilation button, status	10B
2	Seat ventilation button, status	10D
2	Seat ventilation button, status	9J
3	Seat ventilation status indication, signal	6D
3	Seat ventilation status indication, signal	8H
4	Seat ventilation, actuation	14K
4	Seat ventilation, actuation	14H
4	Seat ventilation, actuation	14B
4	Seat ventilation, actuation	14D
CAN B	Interior CAN	3J
CAN B	Interior CAN	5F
CAN B	Interior CAN	7H
LIN B12	Center console switch LIN	8B
LIN B12	Center console switch LIN	8D
LIN B15	Battery sensor LIN	6E
M18/10	Left front backrest seat ventilation motors	14K
M18/10	Left front backrest seat ventilation motors	14D
M18/11	Right front seat cushion seat ventilation motors	14G
M18/11	Right front seat cushion seat ventilation motors	14A
M18/12	Right front backrest seat ventilation motors	14H
M18/12	Right front backrest seat ventilation motors	14B
M18/9	Left front seat cushion seat ventilation motors	15J
M18/9	Left front seat cushion seat ventilation motors	15C
N10	SAM control unit	7E
N32/1	Driver seat control unit	11C
N32/1	Driver seat control unit	11J
N32/2	Front passenger seat control unit	11A
N32/2	Front passenger seat control unit	11G
N72/1	Upper control panel control unit	4C
N72/1s13	Left front seat ventilation button	2A
N72/1s14	Right front seat ventilation button	5A
N73	Electronic ignition switch control unit	2E
U63	Valid for seat adjustment without memory function	7A
U71	Valid for fully electric seat adjustment with memory function	10G
