Electrical Function Schematic For Seat Adjustment (ESE) With Memory - PE91.29-P-2054-97NBA
MODEL 166 as of model year 2016 with CODE 275 (Memory package)
MODEL 166 as of model year 2016 with CODE P64 (Memory package)
MODEL 292 with CODE 275 (Memory package)
MODEL 292 with CODE P64 (Memory package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Door rotary tumbler switch, status | 8H |
| 1 | Door rotary tumbler switch, status | 23D |
| 2 | Hall sensors, signal | 5G |
| 2 | Hall sensors, signal | 26E |
| 3 | Seat adjustment switch group, status | 23H |
| 3 | Seat adjustment switch group, status | 15H |
| 4 | Manual adjustment, request | 9H |
| 4 | Manual adjustment, request | 23D |
| 5 | Seat adjustment motor, actuation | 3G |
| 5 | Seat adjustment motor, actuation | 28E |
| 6 | Store memory position, request | 9H |
| 6 | Store memory position, request | 22D |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 18B |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 15B |
| 8 | Adopt memory position, request | 10H |
| 8 | Adopt memory position, request | 21D |
| A1 | Instrument cluster | 17B |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 20C |
| CAN B | Interior CAN | 11E |
| LIN B5 | Left front door LIN | 16H |
| LIN B6 | Right front door LIN | 24H |
| M27/1 | Driver seat fore/aft adjustment motor | 1F |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 1G |
| M27/2 | Driver seat height adjustment motor | 1G |
| M27/2b1 | Height adjustment Hall sensor, driver seat | 1G |
| M27/3 | Driver seat inclination adjustment motor | 1G |
| M27/3b1 | Inclination adjustment Hall sensor, driver seat | 1H |
| M27/4 | Driver seat head restraint adjustment motor | 1H |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 1H |
| M27/5 | Driver seat backrest inclination adjustment motor | 1H |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 1J |
| M28/1 | Front passenger seat fore/aft adjustment motor | 30D |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 30D |
| M28/2 | Front passenger seat height adjustment motor | 30D |
| M28/2b1 | Height adjustment Hall sensor, front passenger seat | 30D |
| M28/3 | Front passenger seat inclination adjustment motor | 30E |
| M28/3b1 | Inclination adjustment Hall sensor, front passenger seat | 30E |
| M28/4 | Front passenger seat head restraint adjustment motor | 30E |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 30E |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 30F |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 30F |

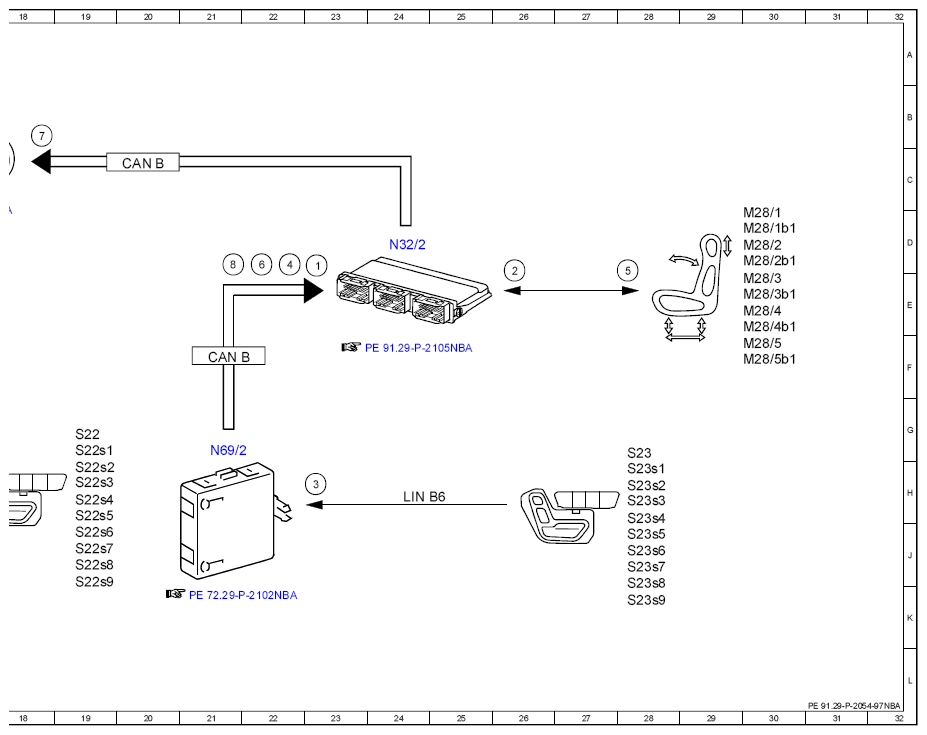

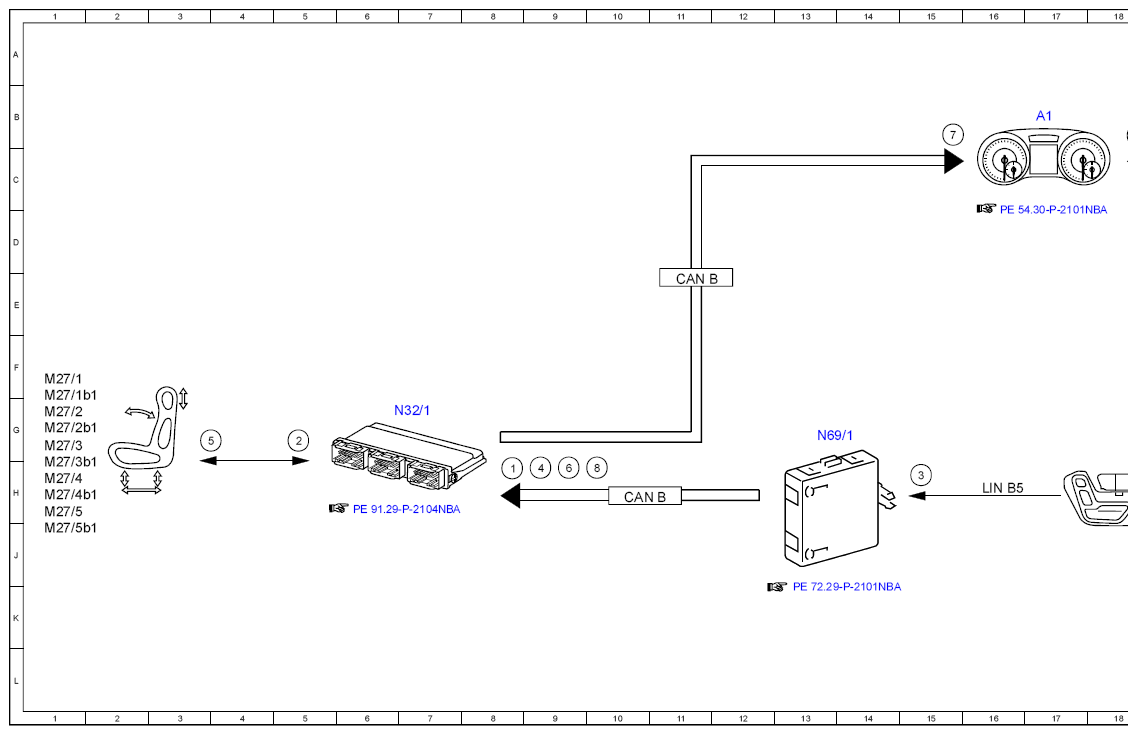

| N32/1 | Driver seat control unit | 7G |
| N32/2 | Front passenger seat control unit | 24D |
| N69/1 | Left front door control unit | 13G |
| N69/2 | Right front door control unit | 21G |
| S22 | Left front seat adjustment switch group | 19G |
| S22s1 | Left front head restraint adjustment switch | 19G |
| S22s2 | Left front seat inclination adjustment switch | 19H |
| S22s3 | Left front seat fore/aft adjustment switch | 19H |
| S22s4 | Left front seat height adjustment switch | 19H |
| S22s5 | Left front backrest adjustment switch | 19H |
| S22s6 | Left front memory function switch | 19J |
| S22s7 | Left front memory 1 switch | 19J |
| S22s8 | Left front memory 2 switch | 19J |
| S22s9 | Left front memory 3 switch | 19K |
| S23 | Right front seat adjustment switch group | 28G |
| S23s1 | Right front head restraint adjustment switch | 28H |
| S23s2 | Right front seat inclination adjustment switch | 28H |
| S23s3 | Right front seat fore/aft adjustment switch | 28H |
| S23s4 | Right front seat height adjustment switch | 28H |
| S23s5 | Right front backrest adjustment switch | 28J |
| S23s6 | Right front memory function switch | 28J |
| S23s7 | Right front memory 1 switch | 28J |
| S23s8 | Right front memory 2 switch | 28K |
| S23s9 | Right front memory 3 switch | 28K |
