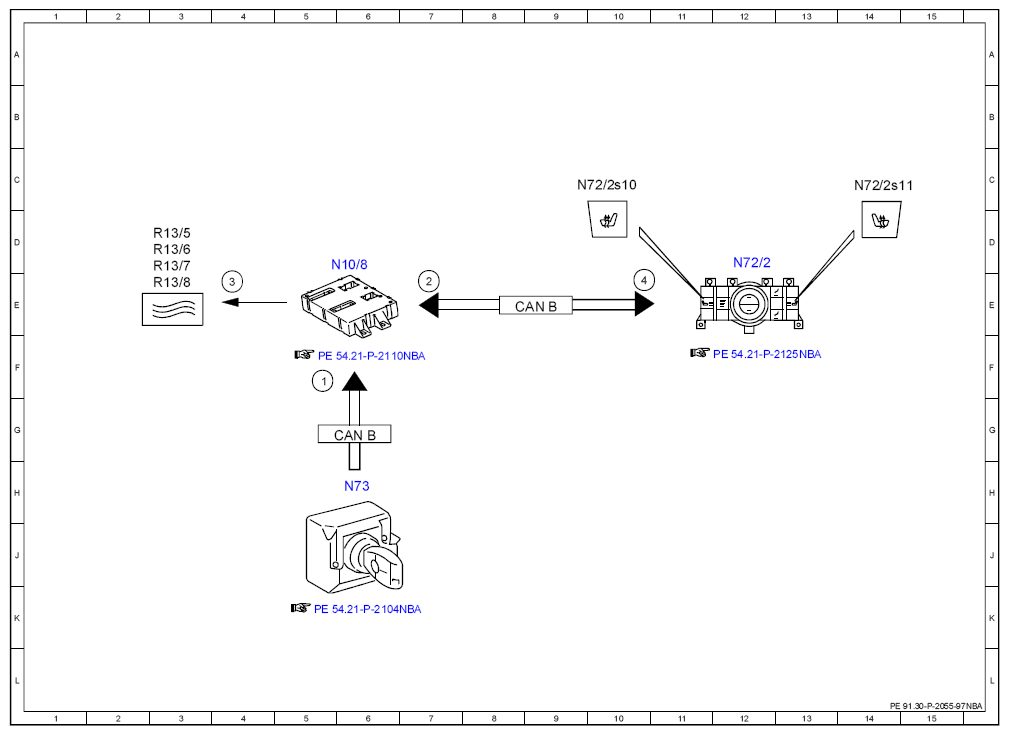

Electrical Function Schematic For Rear Seat Heaters - PE91.30-P-2055-97NBA
MODEL 166 as of model year 2016 with CODE 872 (Heated rear seats)
MODEL 292 with CODE 872 (Heated rear seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5F |
| 2 | Seat heater, request | 7E |
| 3 | Seat heater, actuation | 4E |
| 4 | Seat heater status indication, signal | 10E |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 6G |
| N10/8 | Rear control unit | 6D |
| N72/2 | RCP [HBF] control unit | 12D |
| N72/2s10 | Left rear seat heater button, 2nd seat row | 10C |
| N72/2s11 | Right rear seat heater button, 2nd seat row | 14C |
| N73 | Electronic ignition switch control unit | 6H |
| R13/5 | Left rear seat sitting surface heated cushion | 3D |
| R13/6 | Left rear backrest heated cushion | 3D |
| R13/7 | Right rear seat sitting surface heated cushion | 3D |
| R13/8 | Right rear backrest heater pad | 3E |
