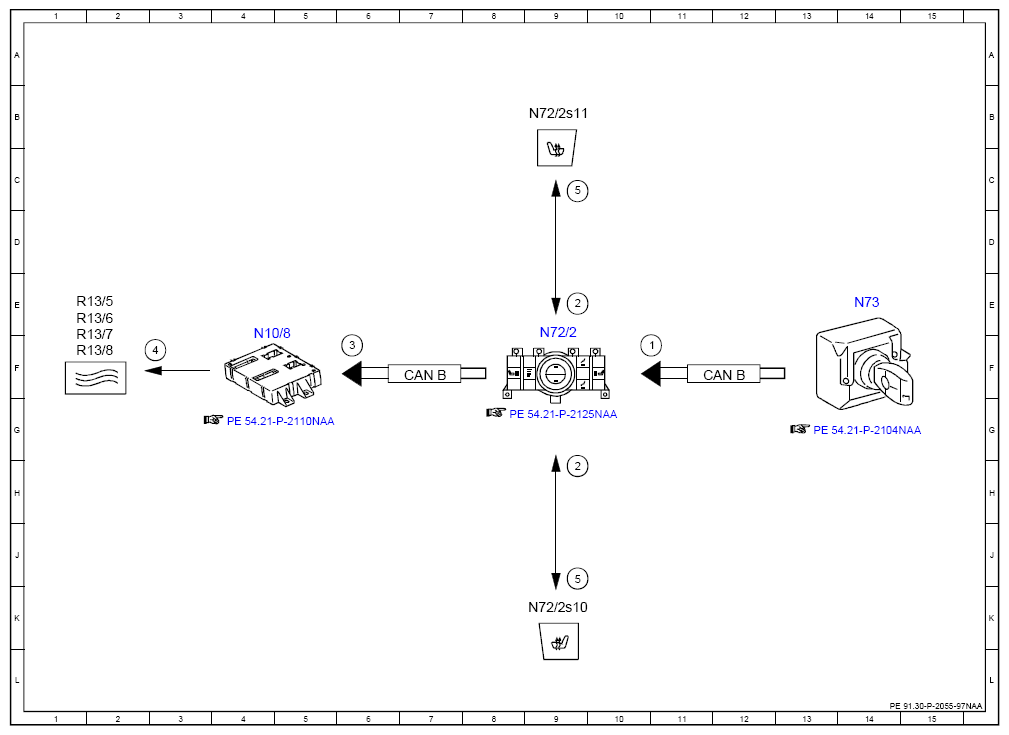

Electrical Function Schematic For Rear Seat Heaters - PE91.30-P-2055-97NAA
MODEL 166 up to model year 2016 with CODE 872 (Electrically heated left and right rear seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10F |
| 2 | Seat heater button, status | 9H |
| 2 | Seat heater button, status | 9E |
| 3 | Seat heater, request | 6F |
| 4 | Seat heater, actuation | 3F |
| 5 | Seat heater status indication, signal | 9J |
| 5 | Seat heater status indication, signal | 9C |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 7F |
| N10/8 | Rear control unit | 4F |
| N72/2 | RCP [HBF] control unit | 9F |
| N72/2s10 | Left rear seat heater button, 2nd seat row | 9K |
| N72/2s11 | Right rear seat heater button, 2nd seat row | 9B |
| N73 | Electronic ignition switch control unit | 14E |
| R13/5 | Left rear seat sitting surface heated cushion | 1E |
| R13/6 | Left rear backrest heated cushion | 1E |
| R13/7 | Right rear seat sitting surface heated cushion | 1F |
| R13/8 | Right rear backrest heater pad | 1F |
