Removing Rear Head Restraint - AR91.16-P-1770GZ

MODEL 164.8

2nd seat row

MODEL 166.8 without CODE 843 (Electric EASY-ENTRY)

2nd seat row

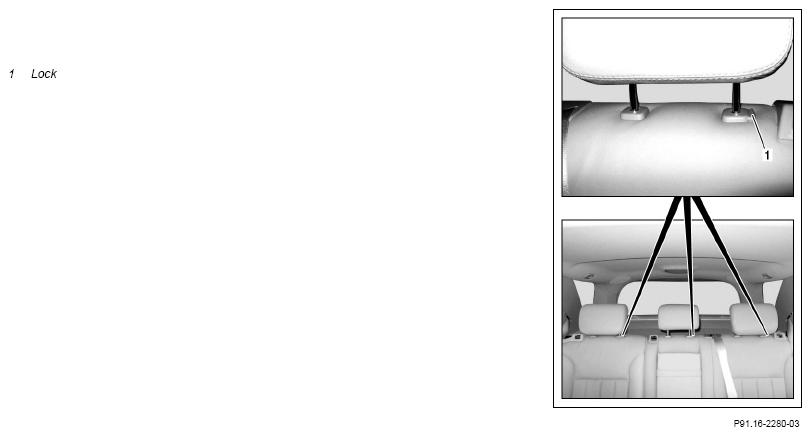

Shown on model 164.1

G12082940

	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Remove/install
1	Fold rear seat backrest to front	Do not fold rear seat cushion forward.
2	Press lock (1)	Press and hold lock (1).
3	Move head restraints on brackets upwards	Carefully extend head restraint upwards. Damage to headliner is thus avoided. Installation: Head restraint must audibly engage. Observe installation position of center head restraint.
4	Install in the reverse order
