Remove/Install Seat Belt Buckle (Front Seat) - AR91.40-P-1515GQ

MODEL 166

MODEL 292

Shown on model 166

	Remove/install
1	Remove front seat		AR91.10-P-1000GQ
2	Unclip driver seat connector block (X55/3) or front passenger seat connector block (X55/4) from bracket
3	Carefully unclip electrical connector of belt buckle restraint system switch from driver seat connector block (X55/3) or front passenger seat connector block (X55/4) using suitable tool and detach	The electrical connector must be unclipped carefully. Danger of breakage.

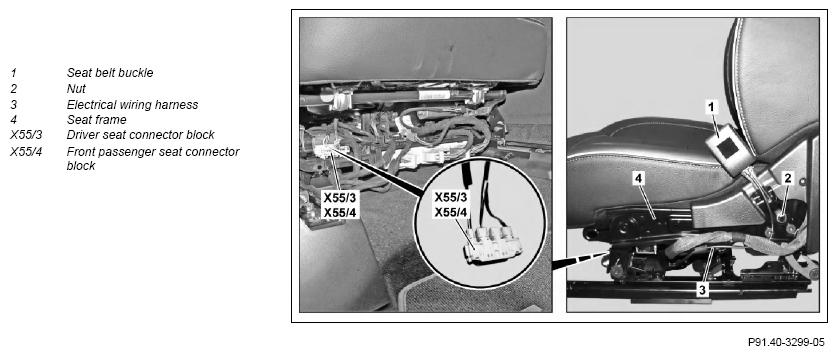

4	Unclip electrical wiring harness (3) at seat frame (4) and expose	Ensure the correct routing and attachment of the electrical line (3). Clip remover	Figure
5	Unscrew nut (2) and remove seat belt buckle (1)	Ensure correct installation position of seat belt buckle (1). Bolt/nut, seat belt buckle to front seat	*BA91.40-P-1003-01R
6	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 166	Model 292
BA91.40-P-1003-01R	Bolt/nut, seat belt buckle to front seat	Nm	35	35

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
