Overview Of System Components Of Comfort Heating Systems - GF91.30-P-9990GR
MODEL 166 up to model year 2016 with CODE 311 (Temperature-controlled cup holder)
MODEL 166 up to model year 2016 with CODE 401 (Front deluxe seats, incl. seat heating and seat ventilation)
MODEL 166 up to model year 2016 with CODE 443 (Steering wheel heater)
MODEL 166 up to model year 2016 with CODE 872 (Electrically heated left and right rear seats)
MODEL 166 up to model year 2016 with CODE 873 (Heated left and right front seats)

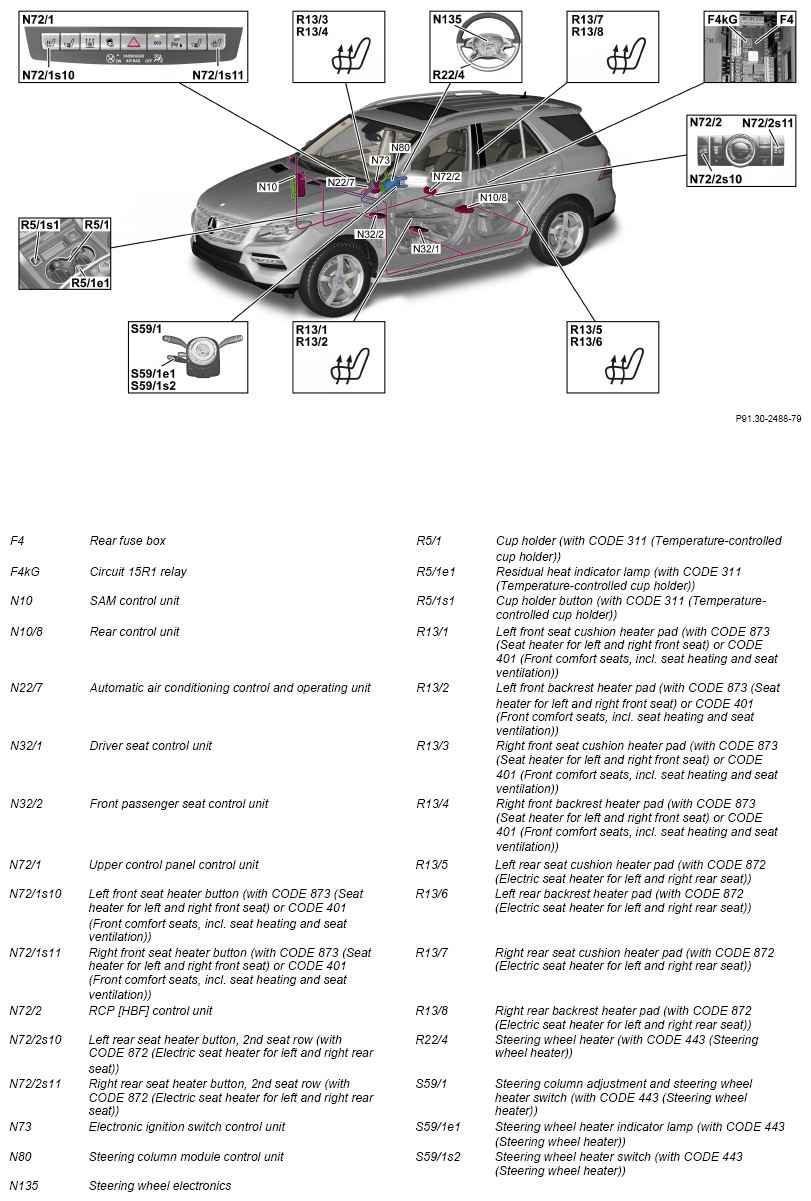

Temperature-controlled cup holder (with CODE 311 (Temperature-controlled cup holder)), steering wheel heater (with CODE 443 (Steering wheel heater)), seat heater (with CODE 873 (Seat heater for left and right front seat) or CODE 401 (Front comfort seats, incl. seat heating and seat ventilation) or CODE 872 (Electric seat heater for left and right rear seat)), shown on model 166.0
The following components of the steering wheel heater (with CODE 443 (Steering wheel heater) are not illustrated:
- Heating element temperature sensor (R22/4b1)
- Steering wheel heater heating element (R22/4r1)

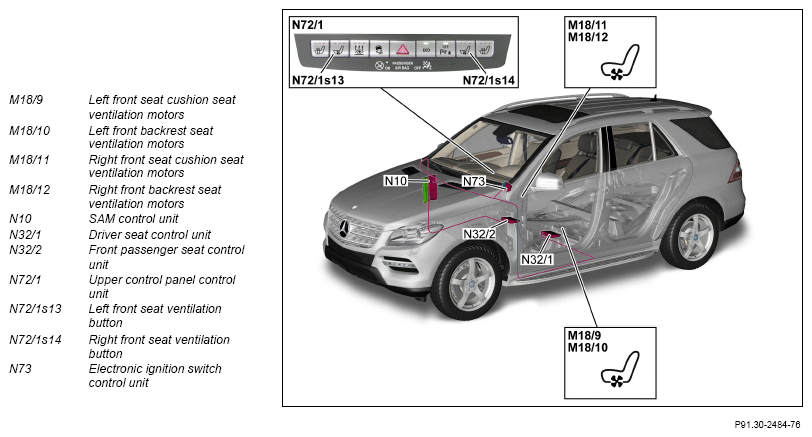

Electric seat ventilation (with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation)), shown on model 166.0
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000GR | |
| Component description for driver seat control unit | MODEL 166 up to model year 2016 with CODE 275 (Memory package (driver seat, steering column, mirrors)) with CODE 401 (Front deluxe seats, incl. seat heating and seat ventilation) MODEL 166 up to model year 2016 with CODE 275 (Memory package (driver seat, steering column, mirrors)) with CODE 873 (Heated left and right front seats) N32/1 |
GF91.29-P-5231GR | |
| MODEL 166 up to model year 2016 with CODE 401 (Front deluxe seats, incl. seat heating and seat ventilation) without CODE 275 (Memory package (driver seat, steering column, mirrors)) MODEL 166 up to model year 2016 with CODE 873 (Heated left and right front seats) without CODE 275 (Memory package (driver seat, steering column, mirrors)) N32/1 |
GF91.29-P-5231GRA | ||
| Component description for front passenger seat control unit | MODEL 166 up to model year 2016 with CODE 401 (Front deluxe seats, incl. seat heating and seat ventilation) with CODE P64 (Memory package) MODEL 166 up to model year 2016 with CODE 873 (Heated left and right front seats) with CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GR | |
| MODEL 166 up to model year 2016 with CODE 401 (Front deluxe seats, incl. seat heating and seat ventilation) without CODE P64 (Memory package) MODEL 166 up to model year 2016 with CODE 873 (Heated left and right front seats) without CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GRA | ||
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Rear control panel control unit, component description | MODEL 166 up to model year 2016 with CODE 872 (Electrically heated left and right rear seats) N72/2 |
GF83.40-P-3020GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Table of contents for function description of comfort heating systems | GF91.30-P-0999GR |
