Overview Of System Components Of Comfort Heating Systems - GF91.30-P-9990GN
MODEL 166 as of model year 2016
with CODE 311 (Temperature-controlled cup holder)
MODEL 166 as of model year 2016
with CODE 401 (Climatised front seats)
MODEL 166 as of model year 2016
with CODE 443 (Steering wheel heater)
MODEL 166 as of model year 2016
with CODE 872 (Heated rear seats)
MODEL 166 as of model year 2016
with CODE 873 (Seat heating for driver and front passenger)
MODEL 292
with CODE 311 (Temperature-controlled cup holder)
MODEL 292
with CODE 401 (Climatised front seats)
MODEL 292
with CODE 443 (Steering wheel heater)
MODEL 292
with CODE 872 (Heated rear seats)
MODEL 292
with CODE 873 (Seat heating for driver and front passenger)

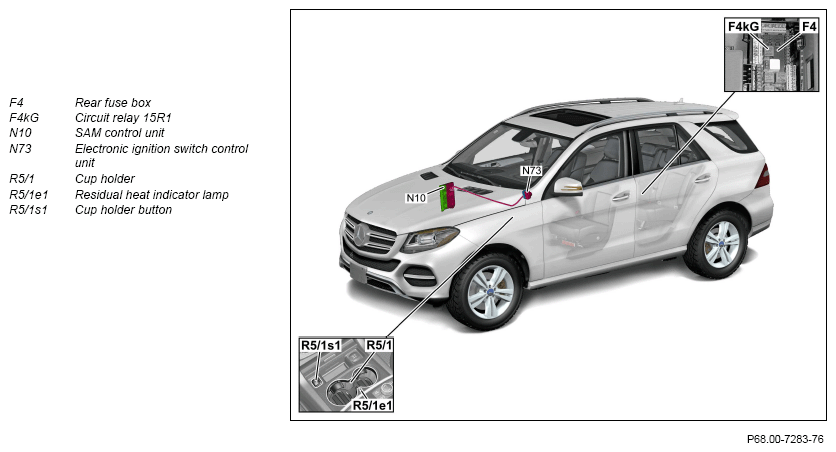

Temperature-controlled cup holder (with CODE 311 (Temperature-controlled cup holder)), shown on model 166.0

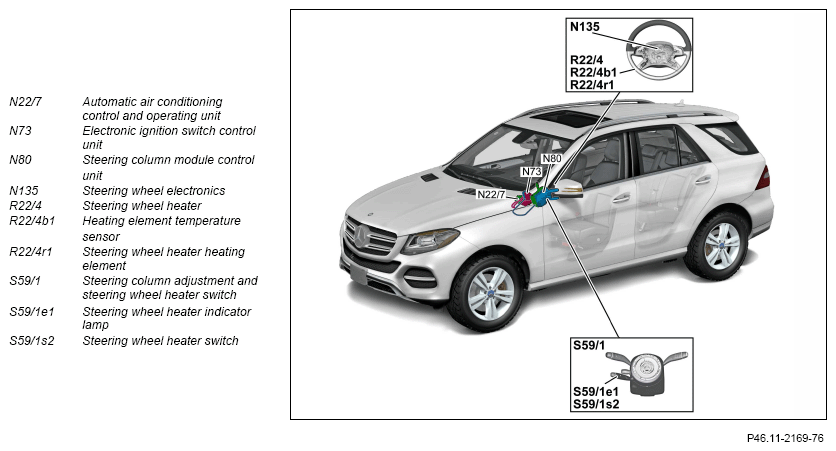

Steering wheel heater (LRH) (with CODE 443 (Steering wheel heater)), shown on model 166.0

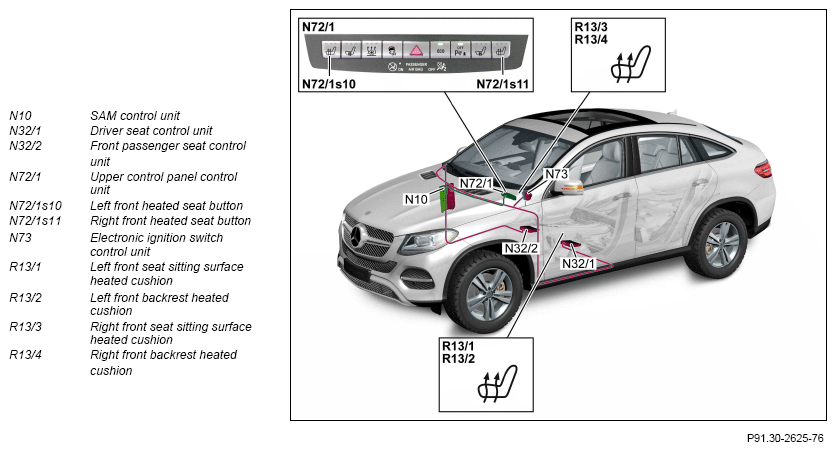

Front seat heater (with CODE 873 (Seat heater for driver and front passenger) or CODE 401 (Seat climate control for driver and front passenger)), shown on model 292

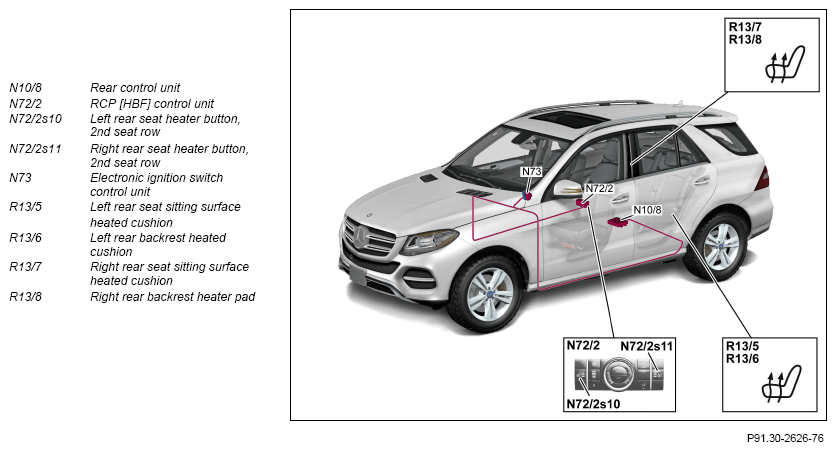

Seat heater for rear seats (with CODE 872 (Seat heater in rear)), shown on model 166.0

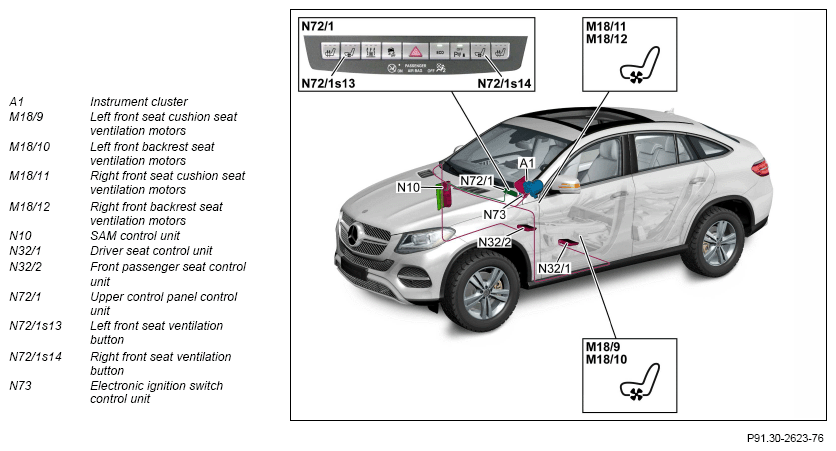

Electric seat ventilation (with CODE 401 (Seat climate control for driver and front passenger)), shown on model 292
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GN | |
| Component description for climate control control and operating unit | N22/7 | GF83.40-P-3002GN | |
| Component description for driver seat control unit | MODEL 166 as of model year 2016 with CODE 275 (Memory package) with CODE 401 (Climatised front seats) MODEL 166 as of model year 2016 with CODE 275 (Memory package) with CODE 873 (Seat heating for driver and front passenger) MODEL 292 with CODE 275 (Memory package) with CODE 401 (Climatised front seats) MODEL 292 with CODE 275 (Memory package) with CODE 873 (Seat heating for driver and front passenger) N32/1 |
GF91.29-P-5231GN | |
| MODEL 166 as of model year 2016 with CODE 401 (Climatised front seats) without CODE 275 (Memory package) MODEL 166 as of model year 2016 with CODE 873 (Seat heating for driver and front passenger) without CODE 275 (Memory package) MODEL 292 with CODE 401 (Climatised front seats) without CODE 275 (Memory package) MODEL 292 with CODE 873 (Seat heating for driver and front passenger) without CODE 275 (Memory package) N32/1 |
GF91.29-P-5231GNA | ||
| Component description for front passenger seat control unit | MODEL 166 as of model year 2016 with CODE 401 (Climatised front seats) with CODE P64 (Memory package) MODEL 166 as of model year 2016 with CODE 873 (Seat heating for driver and front passenger) with CODE P64 (Memory package) MODEL 292 with CODE 401 (Climatised front seats) with CODE P64 (Memory package) MODEL 292 with CODE 873 (Seat heating for driver and front passenger) with CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GN | |
| MODEL 166 as of model year 2016 with CODE 401 (Climatised front seats) without CODE P64 (Memory package) MODEL 166 as of model year 2016 with CODE 873 (Seat heating for driver and front passenger) without CODE P64 (Memory package) MODEL 292 with CODE 401 (Climatised front seats) without CODE P64 (Memory package) MODEL 292 with CODE 873 (Seat heating for driver and front passenger) without CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GNA | ||
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GN | |
| Rear control panel control unit, component description | MODEL 166 as of model year 2016 with CODE 872 (Heated rear seats) MODEL 292 with CODE 872 (Heated rear seats) N72/2 |
GF83.40-P-3020GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Table of contents for function description of comfort heating systems | GF91.30-P-0999GN |
