Overview Of System Components For Electric Seats - GF91.29-P-9992GR
MODEL 166 up to model year 2016

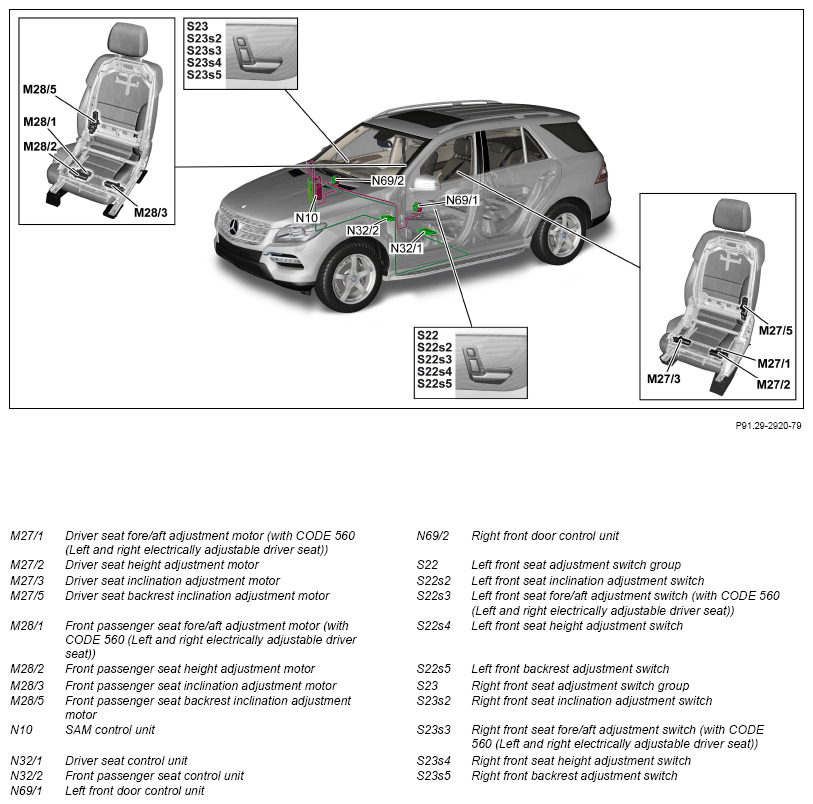

Electrical seat adjustment (ESA) except CODE 275 (Memory package (driver seat, steering column, mirrors)) and except CODE P64 (Memory package)), shown on model 166.0

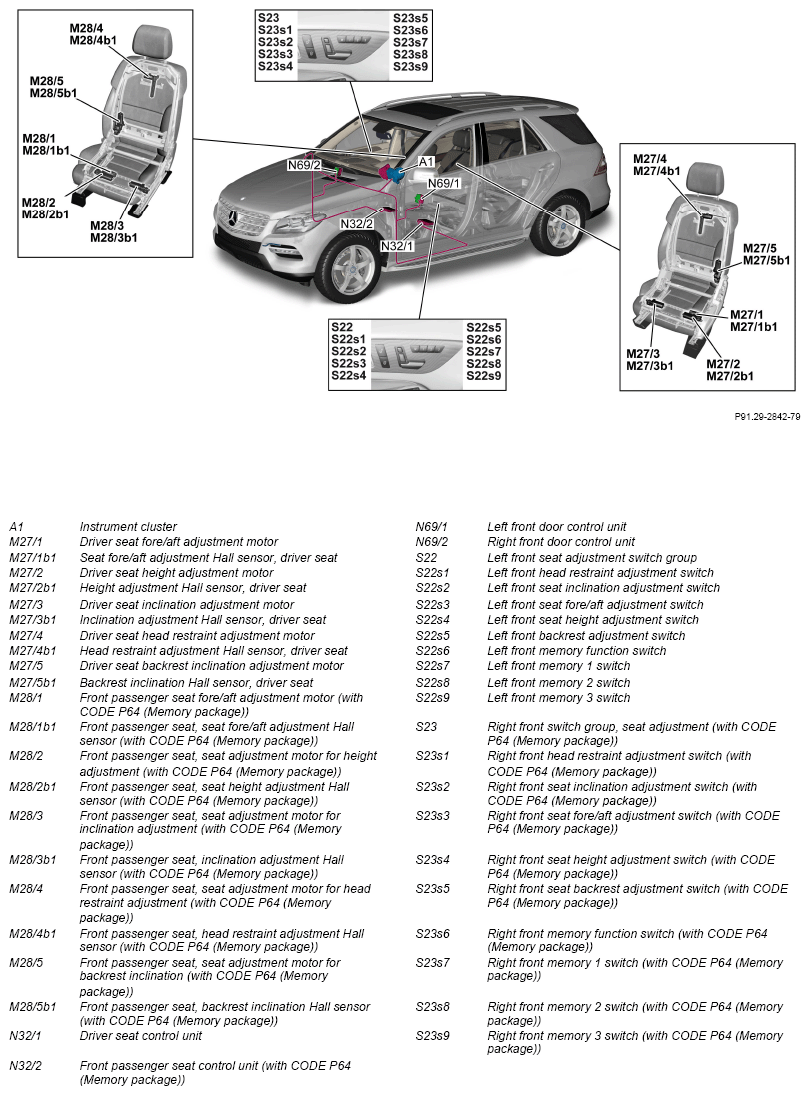

Electrical seat adjustment (ESA) with CODE 275 (Memory package (driver seat, steering column, mirrors)) or CODE P64 (Memory package), shown on model 166.0

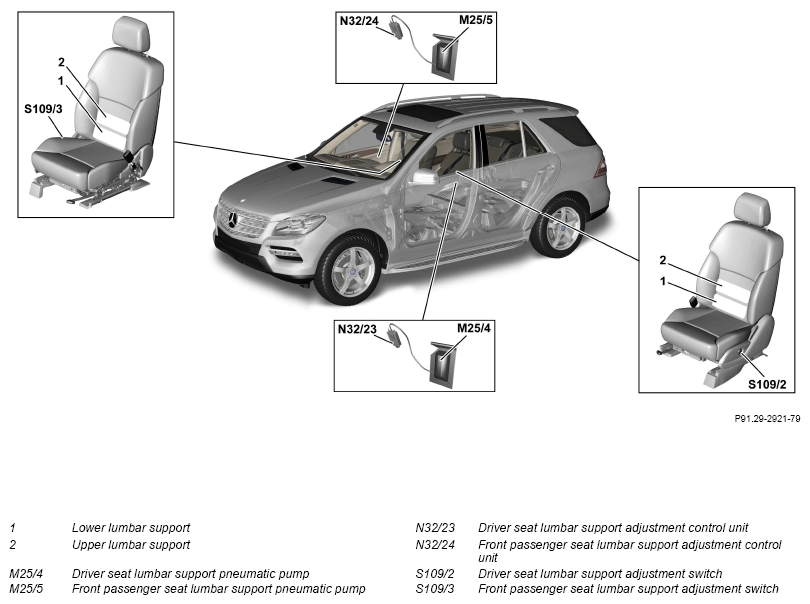

Lumbar support adjustment (with CODE 560 (Left and right electrically adjustable driver seat) or CODE 275 (Memory package (driver seat, steering column, mirrors)) or CODE P64 (Memory package)), shown on model 166.0

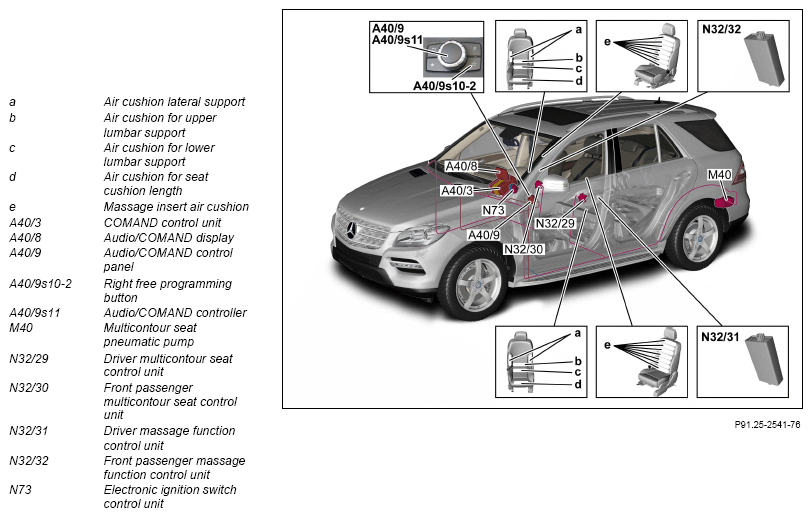

Multicontour seat (MKS) (with CODE 399 (Front multicontour seats with massage function)), shown on model 166.0

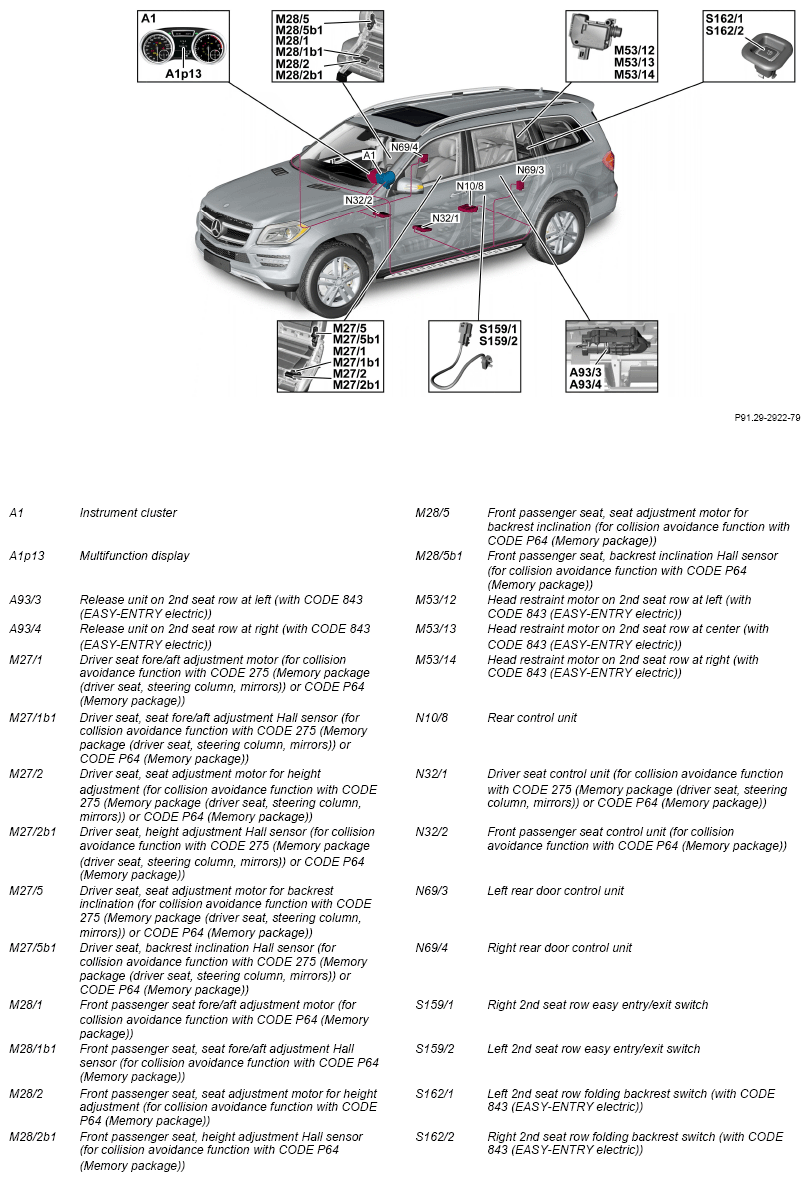

2nd seat row seat release, model 166.8

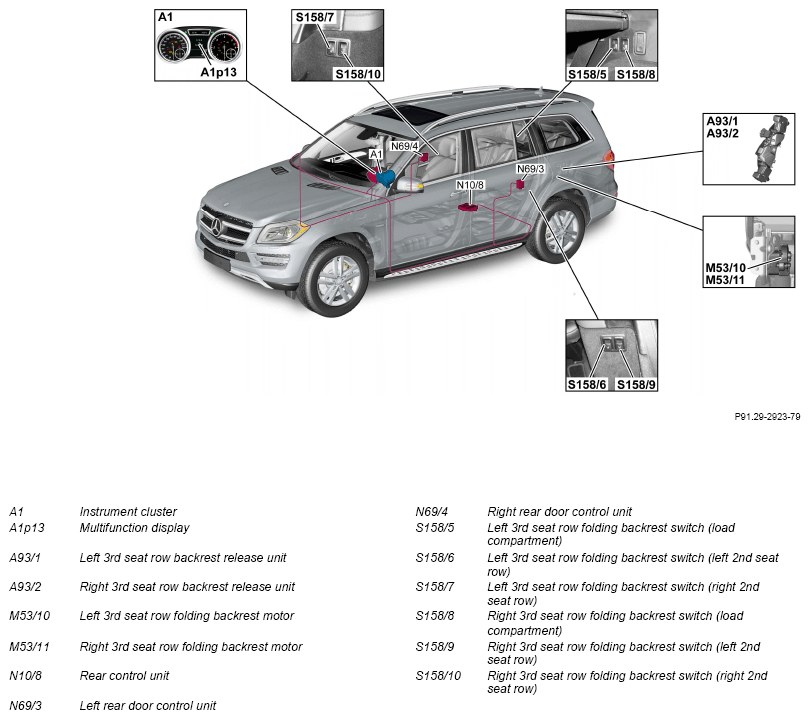

Folding over the 3rd row, model 166.8

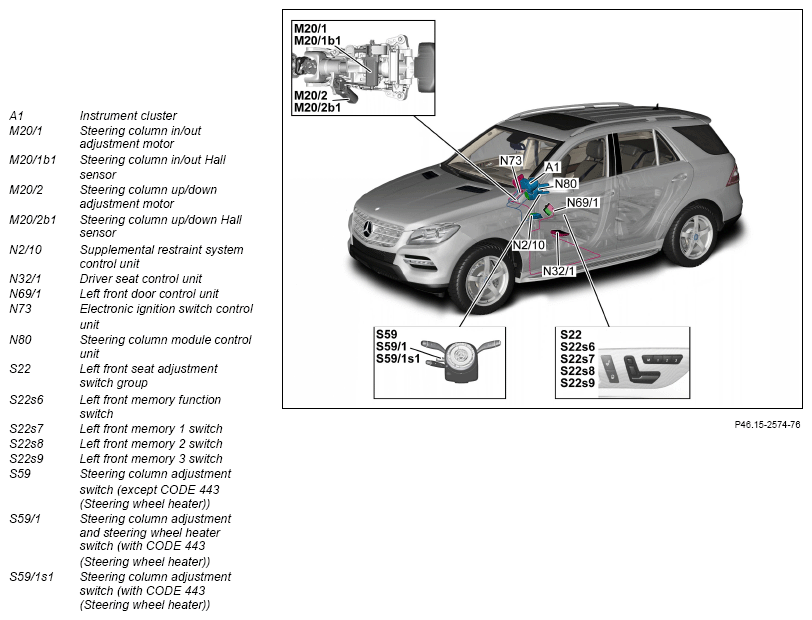

Electrically adjustable steering column (ESC [EVL]) (with CODE 275 (Memory package (driver seat, steering column, mirrors))), shown on model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for COMAND controller unit | Model 166 up to model year 2016 with code 512 (COMAND APS with DVD changer) Model 166 up to model year 2016 with code 527 (COMAND APS with single DVD drive (with navigation)) Model 166 up to model year 2016 with code 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136GR | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GR | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GR | |
| Multicontour seat pneumatic pump (MCS), component description | Model 166 up to model year 2016 with code 399 (Multicontour front seats with massage function) M40 |
GF91.25-P-5205GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| Component description for driver seat control unit | Model 166 up to model year 2016 with code 275 (Memory package) N32/1 |
GF91.29-P-5231GR | |
| Model 166 up to model year 2016 except code 275 (Memory package) N32/1 |
GF91.29-P-5231GRA | ||
| Component description for front passenger seat control unit | Model 166 up to model year 2016 with code P64 (Memory package) N32/2 |
GF91.29-P-5241GR | |
| Model 166 up to model year 2016 except code P64 (Memory package) N32/2 |
GF91.29-P-5241GRA | ||
| Component description for lumbar support control unit | Model 166 up to model year 2016 with code 275 (Memory package) Model 166 up to model year 2016 with code 560 (Electrically adjustable front seats) Model 166 up to model year 2016 with code P64 (Memory package) N32/23, N32/24 |
GF91.29-P-5281GR | |
| Multicontour seat control unit (MCS), component description | Model 166 up to model year 2016 with code 399 (Multicontour front seats with massage function) N32/29, N32/30 |
GF91.25-P-5201GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Table of contents for function description of electric seats | GF91.29-P-0992GR |
