Hood Lifter, Basic Function - GF91.60-P-2017A

MODEL ALL (CAR) with CODE U60 (Active Bonnet (Pedestrian protection))

Overview

This document contains the following information:

• Location
• Task

Location

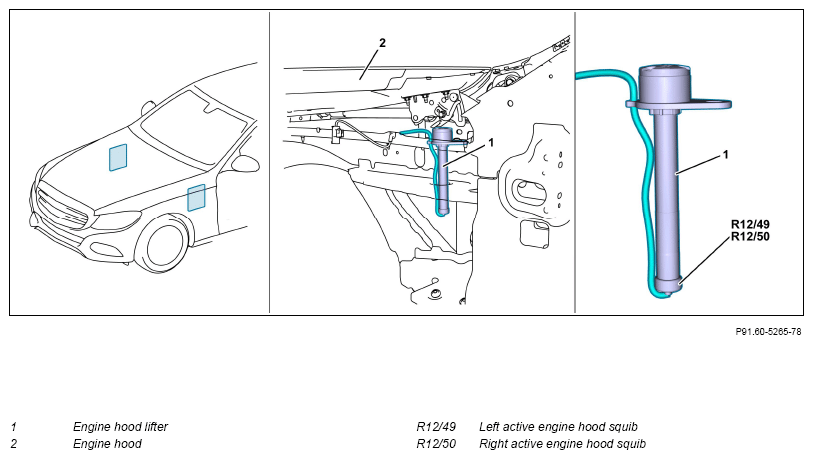

The hood lifters (1) are located left and right under the hinges of the hood (2).

Task

The hood lifters (1) implement the pedestrian protection. The hood (2) is lifted at the back by approx. 8 cm when the squibs are triggered. The SRS control unit (N2/10) actuates the squibs directly.
