Refrigerant Pressure Sensor, Basic Function - GF83.40-P-2021A

MODEL ALL (CAR)

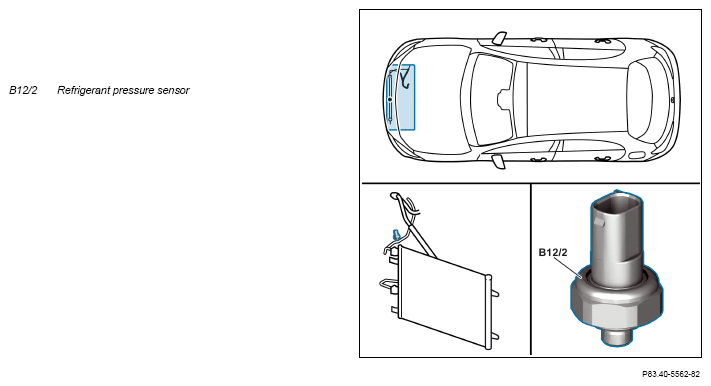

Location

The pressure sensor is screwed in to the connection fitting of the refrigerant line (high-pressure side) in the area of the condenser.

General

The pressure sensor records the refrigerant pressure at the high-pressure side of the air conditioning system and is read in directly by the climate control system. The refrigerant pressure sensor operates in a pressure value range of approx. 0 - 35 bar.

G12082184

Function requirements
