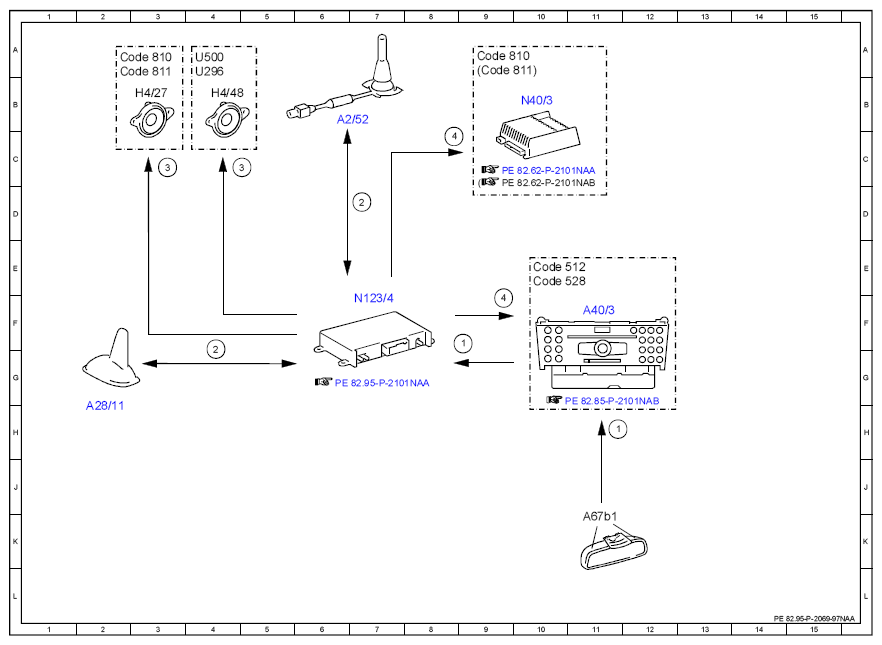

Electrical Function Diagram For Voice Connection Between Vehicle And Service Center, Function - PE82.95-P-2069-97NAA
MODEL 166 up to model year 2016 with CODE 348 (Emergency call/assistant system)
MODEL 166 up to model year 2016 with CODE 359 (TELE AID emergency call system) without CODE 348 (Emergency call/assistant system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Voice input, signal | 9F |
| 1 | Voice input, signal | 11H |
| 2 | Telephone, signal | 4G |
| 2 | Telephone, signal | 7D |
| 3 | Voice output, signal | 3C |
| 3 | Voice output, signal | 5C |
| 4 | Mute, signal | 8C |
| 4 | Mute, signal | 9F |
| A2/52 | Emergency call system antenna | 6B |
| A28/11 | Multifunction antenna | 2H |
| A40/3 | COMAND control unit | 11F |
| A67b1 | Hands-free system microphone group | 11K |
| Code 512 | COMAND APS with DVD changer | 10E |
| Code 528 | COMAND with DVD changer | 10E |
| Code 810 | Sound system | 2A |
| Code 810 | Sound system | 9A |
| Code 811 | Extended sound system | 2A |
| Code 811 | Extended sound system | 9A |
| H4/27 | Center instrument panel speaker | 3B |
| H4/48 | Emergency call speaker | 4B |
| N123/4 | Emergency call system control unit | 7F |
| N40/3 | Sound system amplifier control unit | 10B |
| U296 | Not valid for expanded sound system | 4A |
| U500 | Not valid for sound system | 4A |
