Remove Outer B-Pillar Panel - AR63.20-P-1021-01GQ
MODEL 166.0 with CODE Z04 (Light armoring)
MODEL 166.0 with CODE Z05 (B5 armoring on special protection version)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint | A 000 986 34 42 |

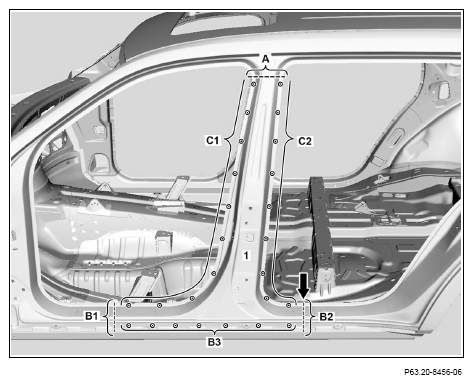

- Scribe separating point on side wall paneling (1) and cut (areas A, B1 and B2).
Separating point in area B2 is Y-marking (arrow). Determine separating point in area A and B1 according to degree of damage.
- Expose and cut out spot welds on side wall paneling (1) (areas B3, C1 and C2). Use drill bits and milling cutters for high-strength steels (USIBOR) and rivets.
- Remove damaged side wall paneling.

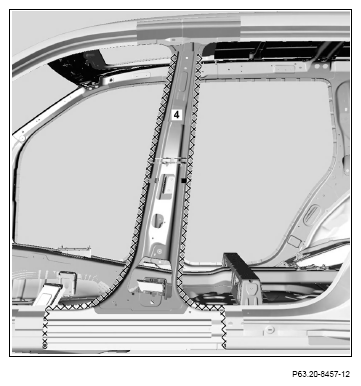

- Grind mating surfaces on body (4) down to bare metal in crosshatched areas.
- Remove shavings and drill chips. Use wet/dry vacuum cleaner.
- Coat insides of spot weld flanges with zinc dust paint.
