Preparing Side Wall, C And D-Pillars Inside - AR63.10-P-0800-02GQ

MODEL 166.0

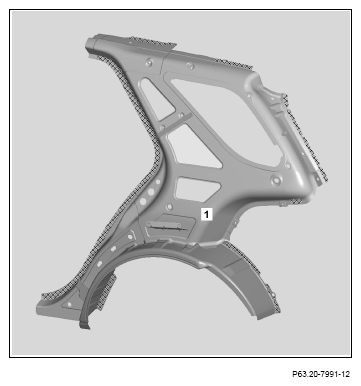

1. Grind mating surfaces on outer C-pillar (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Coat insides of spot weld flanges with zinc dust paint.

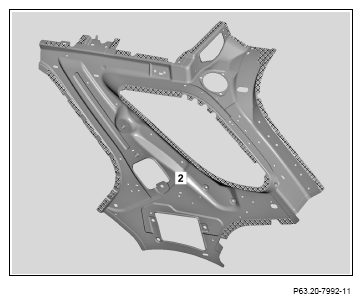

3. Grind mating surfaces on inner rear side wall (2) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

4. Coat insides of spot weld flanges with zinc dust paint.
