Prepare Outer Sidewall - AR63.10-P-0805-02GQ

MODEL 166

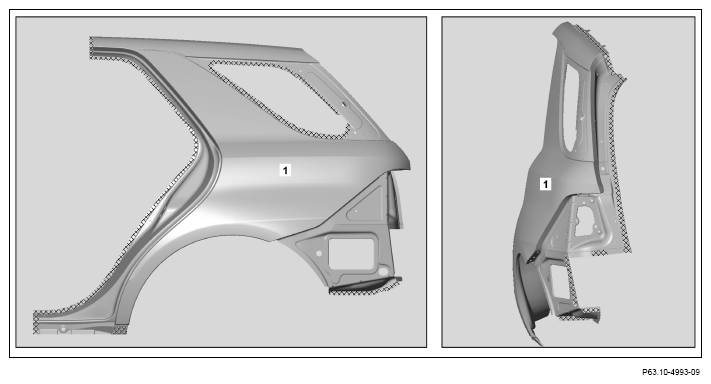

Illustrated on model 166.0

1. Grind mating surfaces on outer side wall (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Coat insides of spot weld flanges with zinc dust paint.
