Prepare Outer B-Pillar Panel - AR63.20-P-1021-02GQ

MODEL 166.0 with CODE Z04 (Light armoring)

MODEL 166.0 with CODE Z05 (B5 armoring on special protection version)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint	A 000 986 34 42

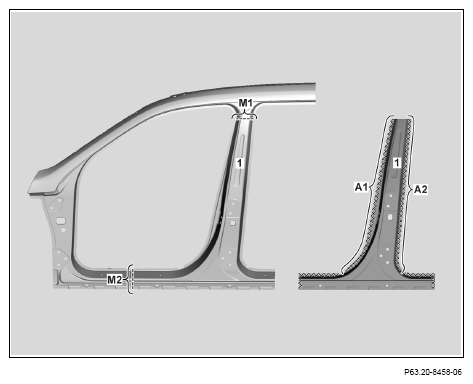

Scribe separating points on side wall paneling (1) and cut (and).
Drill holes for (areas A₁ , A₂ ) in side wall paneling (1).
Use Ø 7 mm hole punching pliers.
Grind mating surfaces on side wall paneling (1) down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
Coat insides of spot weld flanges with zinc dust paint.

Shown on model 166.8
