Prepare B-Pillar Outer Section - AR63.20-P-1121-02GQ

MODEL 166.0

Shown on model 166.8

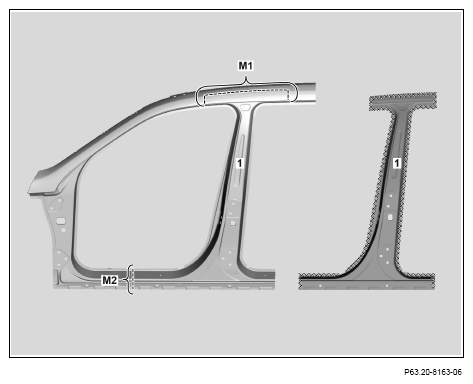

1. Scribe separating point on side wall paneling (1) and cut (M1 and M2).
2. Grind mating surfaces on side wall paneling (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

3. Coat insides of spot weld flanges with zinc dust paint.

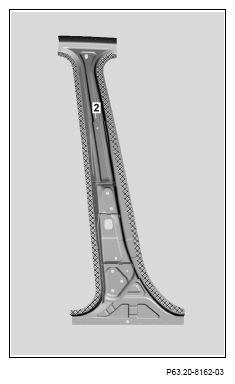

4. Grind mating surfaces on outer B-pillar (2) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

5. Coat spot weld flange on outer B-pillar (2) with zinc dust paint on both sides.
