Install Outer Section Of B-Pillar - AR63.20-P-1121-03GQ
MODEL 166.0
Shown on model 166.8
- Install outer B-pillar (2) and side wall paneling (1), fit and fix in place.

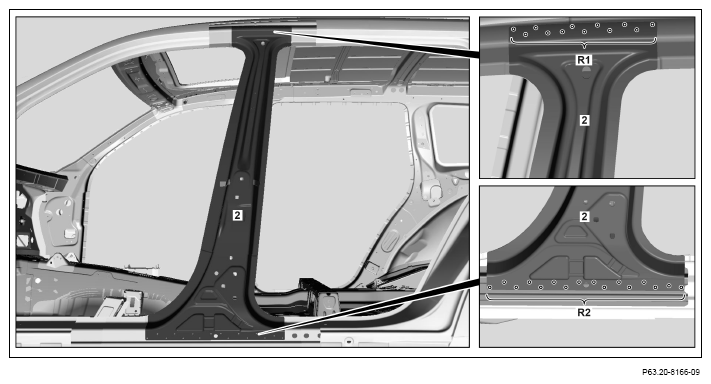

- Drill Ø 6.7 mm rivet holes through pre-drilled holes in outer B-pillar (2) in outer longitudinal member (area R2).
If flow-form rivet pliers are not available, drill additional hole in area R1. Outer B-pillar replacement part (2) is delivered with hole already drilled (areas R1 and R2).
- Remove outer B-pillar (2).
- Deburr rivet holes on both sides and apply zinc dust paint to insides of rivet connections.
- Apply sealant to foam parts (area S).
Always replace damaged foam parts which can no longer be used. New foam parts are available only from the responsible Daimler AG departments.
- Install outer B-pillar (2), fit and fix in place.

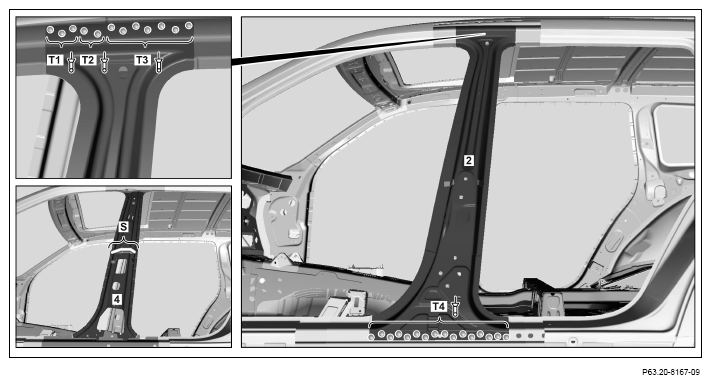

- Rivet outer B-pillar (2) with flow-form rivet, structure from 3.35 mm to 4.1 mm clamping area (S2) (areas T1 and T3).
- Rivet outer B-pillar (2) with flow-form rivet, structure from 4 mm to 5.15 mm clamping area (S3) (area T2).
- Install side wall paneling (1), fit and fix in place.

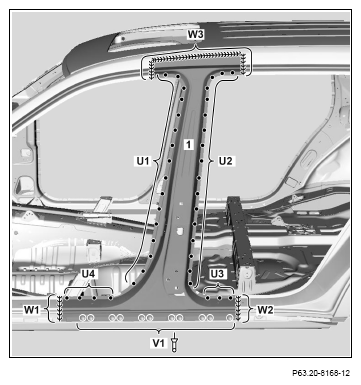

- Drill Ø 6.7 mm rivet holes in an side wall paneling (1) (areas V1).
- Remove side wall paneling (1).
- Deburr rivet holes on both sides and apply zinc dust paint to insides of rivet connections.
- Install side wall paneling (1), fit and fix in place.
- Side wall paneling (1)
(area W1, W2, and W3).
- Side wall paneling (1)
(area U1, U2, U3 and U4).
- Rivet side wall paneling (1) with Ø 6.4X14 countersunk-head rivets (area V1).
- Grind inert gas welds on side wall paneling (1) down flat.
- Remove shavings and drill chips.
- Install section (5), fit and fix in place.
Separate section (5) from inner B-pillar new part (4).

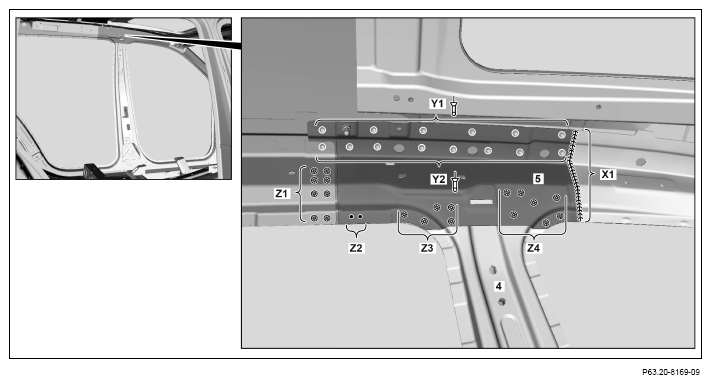

- Drill Ø 6.7 mm rivet holes in section (5) (area Y1).
- Remove section (5).
- Deburr rivet holes on both sides and apply zinc dust paint to insides of rivet connections.
- Install section (5), fit and fix in place.
- Rivet section (5) with Ø 6.4X12.5 blind rivets (area Y1).
- Rivet section (5) with flow-form rivet, structure 4 mm to 5.15 mm clamping range (S3) (area Y2).
- Section (5)
(area X1).
- Section (5)
(areas Z1, Z3 and Z4).
- Section (5)
(area Z2).
