Install Outer B-Pillar Panel - AR63.20-P-1021-03GQ
MODEL 166.0 with CODE Z04 (Light armoring)
MODEL 166.0 with CODE Z05 (B5 armoring on special protection version)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint | A 000 986 34 42 |
| BR00.45-Z-1002-13A | Blind rivet with polygrip countersunk head 6.4X14 (clamping range 2 mm to 8.5 mm, draw-off strength min. 10.8 kN) | A 003 990 86 97 05 |

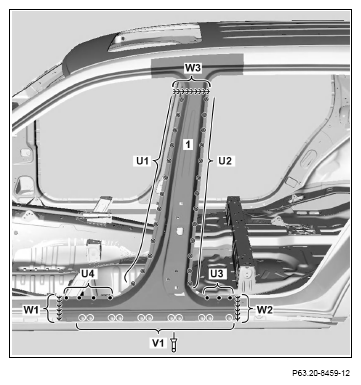

- Install side wall paneling (1), fit and fix in place.
- Drill Ø 6.7 mm rivet holes in an side wall paneling (1) (areas V1). Use drill bits and milling cutters for high-strength steels (USIBOR) and rivets.
- Remove side wall paneling (1).
- Deburr rivet holes on both sides and apply zinc dust paint to insides of rivet connections.
- Install side wall paneling (1), fit and fix in place.
- Side wall paneling (1)
(area W1, W2, and W3).
- Side wall paneling (1)
(area U3 and U4).
- Side wall paneling (1)
(area U1, U2).
- Rivet side wall paneling (1) with Ø 6.4X14 countersunk-head rivets (area V1).
- Grind inert gas weld down flat on side wall paneling.
- Fill inert gas welds with body solder and smooth.
- Remove shavings and drill chips. Use wet/dry vacuum cleaner.
