Power Window Assembly And Outside Mirror Adjustment Switch Group, Driver's Side, Basic Function - GF72.29-P-2006A

MODEL ALL (CAR)

Overview

This document contains the following information:

• Location
• Task

Location

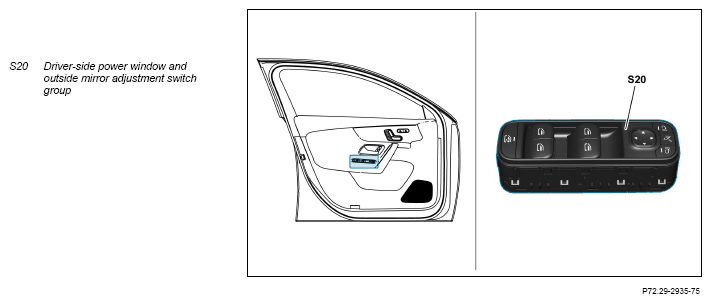

The power window and outside mirror adjustment switch group is located in the trim of the driver's door.

Task

The following functions can be operated via the power window and outside mirror adjustment switch group:

• Power windows
• Electrical rear side window roller sunblinds (vehicles with roller sunblinds in rear doors)
• Electric outside mirrors
• Electrical child safety lock

The power window and outside mirror adjustment switch group is connected via the driver's door LIN (LIN B5) to the driver's door control unit (N69/1).
