Remove/Install Cover Below Instrument Panel (Left) - AR68.10-P-1500GQ

MODEL 166, 292

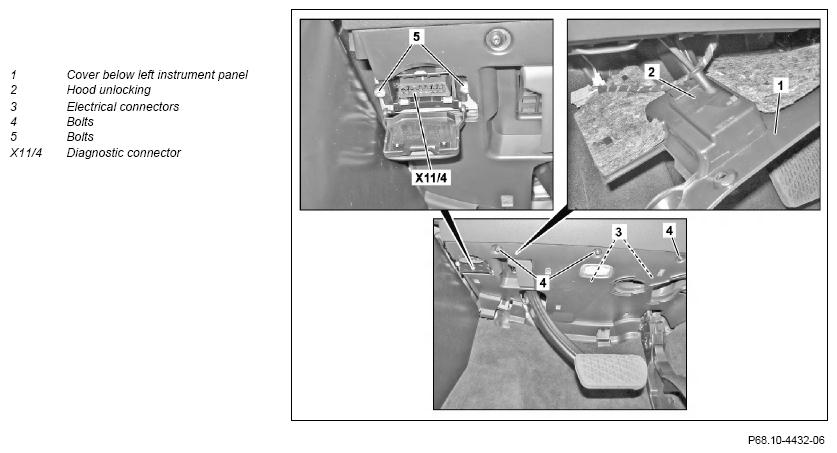

Shown on model 166

	Remove/install
1	Unscrew bolts (5) from diagnostic connector (X11/4)	MODEL 166
2	Remove screws (4)
3	Lower cover below instrument panel on left (1)
4	Unclip engine hood release (2) from cover below instrument panel on left (1)
5	Pull diagnostic connector (X11/4) toward front out of cover below instrument panel on left (1), turn slightly and slide diagnostic connector (X11/4) through cover below instrument panel on left (1)	MODEL 166
		Electrical connector does not have to be disconnected.
6	Disconnect electrical connectors (3)
7	Remove cover below instrument panel on left (1)	Ensure that air duct segment is seated correctly on cover below instrument panel (1).
8	Install in the reverse order
