Install And Weld In Inner C And D-Pillar Side Wall - AR63.10-P-0800-03GQ

MODEL 166.0

1. Install inner rear side wall (2), fit and fix in place.

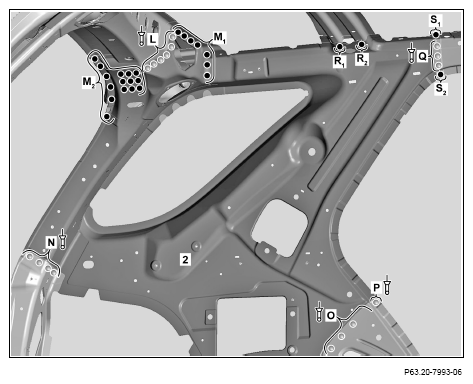

2. Drill Ø 6.7 mm rivet holes inner rear side wall (2) (area L, N, O, P and Q).
3. Remove inner rear side wall (2).
4. Deburr rivet holes on both sides and apply zinc dust paint to insides of rivet connections.
5. Install inner rear side wall (2), fit and fix in place.
6. Rivet inner rear side wall (2) with Ø 6.5X12.5 blind rivets (area L, N, O, P and Q).
7. Inner rear side wall (2) (areas M₁ , M₂ , R₁ , R₂ , S₁ and S₂ ).
8. Remove foam part for area T₁ and T₂ from removed part.

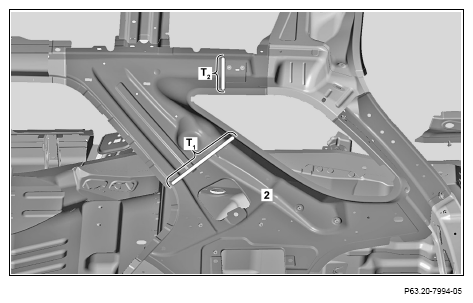

   Transfer position of foam part to inner rear side wall (2) and apply sealant in this area. Fix removed foam part in place, apply sealant on both sides all the way around and spread with brush or spatula.

9. Apply sealant to foam part on vehicle (areas T₁ and T₂ ).

   Apply sealant only after fitting outer C-pillar (1).

10. Install outer C-pillar (1), fit and fix in place.

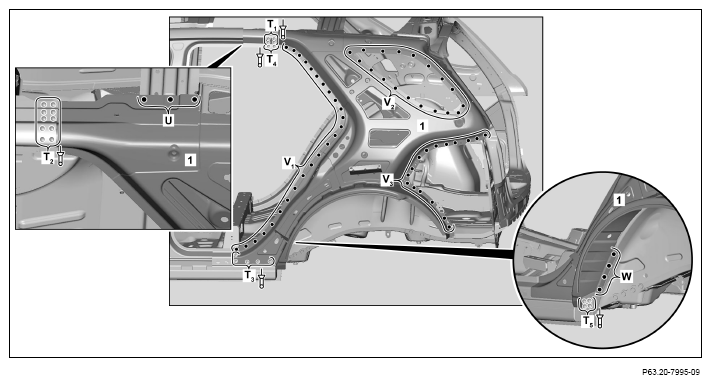

11. Drill Ø 6.7 mm rivet holes in outer C-pillar (1) (areas T₁ , T₂ , T₃ and T₅ ).
12. Remove outer C-pillar (1)
13. Deburr rivet holes on both sides and apply zinc dust paint to insides of rivet connections.
14. Install outer C-pillar (1), fit and fix in place.
15. Rivet outer C-pillar (1) with Ø 6.5X12.5 blind rivets (areas T₁ , T₂ , T₃ and T₅ ).
16. Rivet outer C-pillar (1) with flow-form rivets, structure up to 3.5 mm clamping area (S1) (area T₄ ).

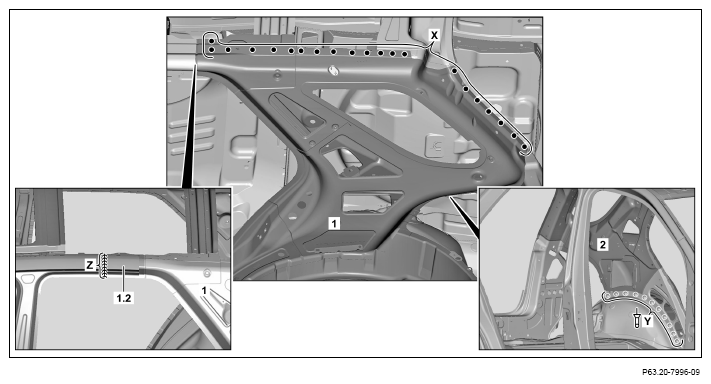

17. Outer C-pillar (1) (areas U, V₁ , V₂ , V₃ and W).
18. Outer C-pillar (1) (area X).
19. Rivet outer C-pillar (1) with Ø 6.5X12.5 blind rivets (area Y).
