Rear Switch Module, Basic Function - GF80.61-P-9890A

MODEL ALL (CAR)

with CODE 871 (HANDS-FREE ACCESS)

Overview

This document contains information on:

• Location
• Task

Location

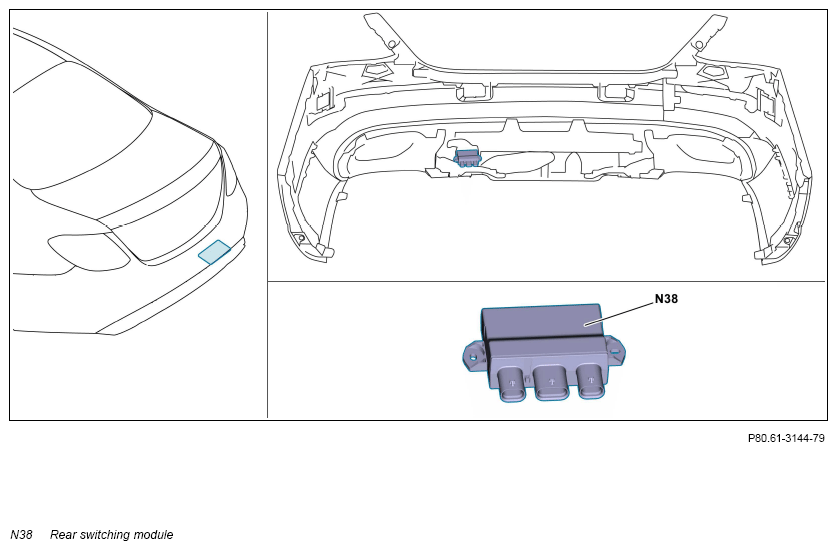

The HSM is located in the paneling of the rear bumper.

Task

The rear switch module reads in the signals of the following sensors:

• Rear switching module up sensor (A87/1)
• Rear switching module down sensor (A87/2)

The rear switch module evaluates the sensor signals and transmits the appropriate requests to the electronic ignition lock control unit (N73).
