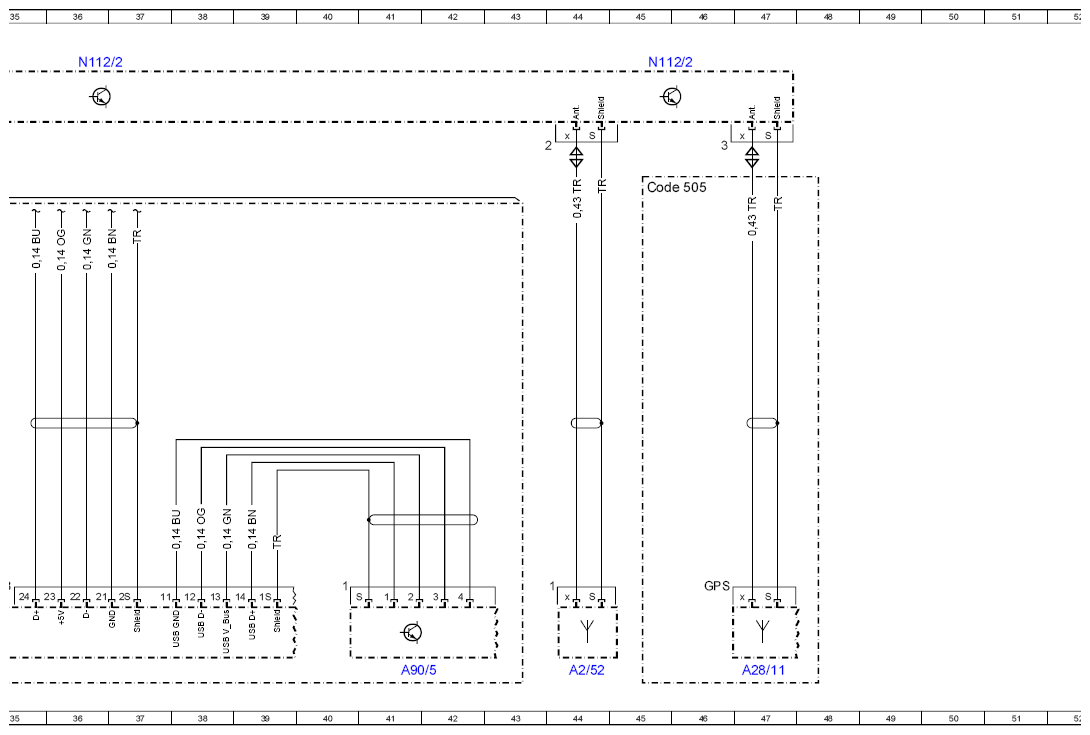

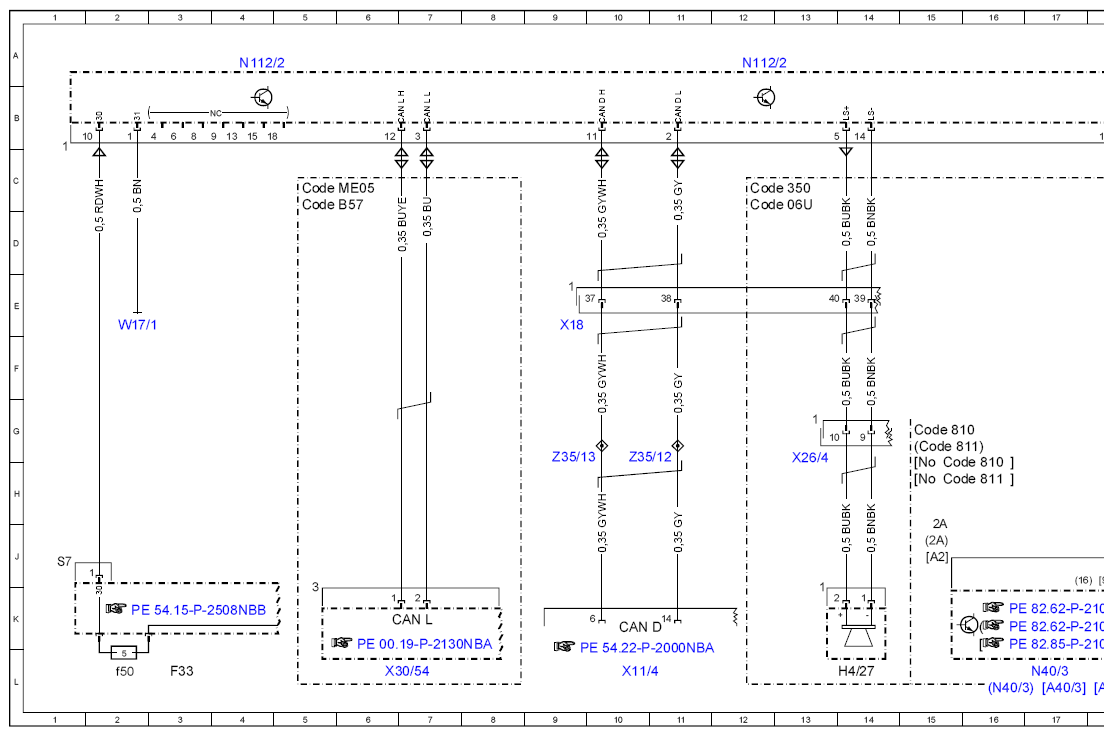

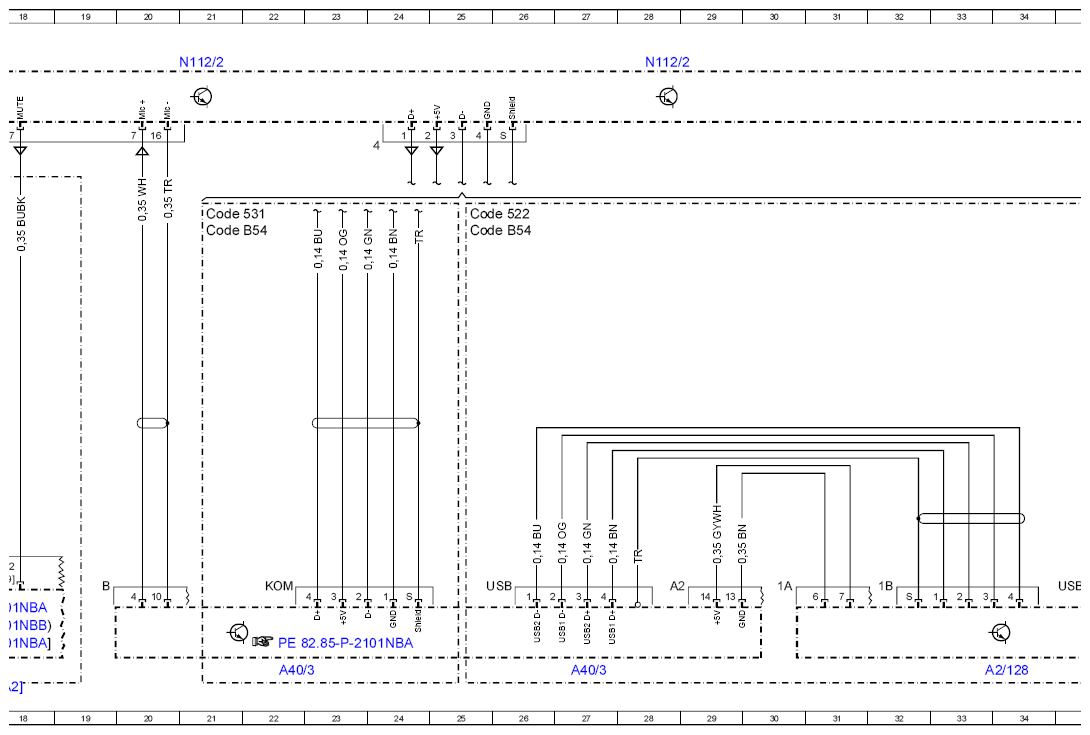

Wiring Diagram For Telematics Services Communications Module Control Unit - PE82.85-P-2105-97NBA
MODEL 166 as of model year 2016 with CODE 350 (Ecall emergency call system, Europe) with CODE B54 (Live Traffic Information) Control unit N112/2
MODEL 292 with CODE 350 (Ecall emergency call system, Europe) with CODE B54 (Live Traffic Information) Control unit N112/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| A2 | Radio | 18L |
| A2/128 | USB splitter | 34L |
| A2/52 | Emergency call system antenna | 44L |
| A28/11 | Multifunction antenna | 47L |
| A40/3 | COMAND control unit | 17L |
| A40/3 | COMAND control unit | 22L |
| A40/3 | COMAND control unit | 27L |
| A90/5 | Multimedia connection unit | 41L |
| CAN D | Diagnostic CAN | 10K |
| CAN L | Hybrid CAN | 7K |
| Code 06U | Mercedes connect me basic services | 12C |
| Code 350 | Ecall Europe emergency call system | 12C |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 45C |
| Code 522 | Audio 20 radio | 25D |
| Code 531 | COMAND APS | 21D |
| Code 810 | Sound system | 15G |
| Code 810 | Sound system | 15H |
| Code 811 | Extended sound system | 15G |
| Code 811 | Extended sound system | 15H |
| Code B54 | Live Traffic Information | 21D |
| Code B54 | Live Traffic Information | 25D |
| Code B57 | Battery status communications module | 5C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 5C |
| F33 | Battery compartment prefuse box | 3L |
| F33f50 | Fuse 50 | 2L |
| H4/27 | Center instrument panel speaker | 14L |
| N112/2 | Telematics services communication module | 12A |
| N112/2 | Telematics services communication module | 4A |
| N112/2 | Telematics services communication module | 21A |
| N112/2 | Telematics services communication module | 28A |
| N112/2 | Telematics services communication module | 36A |
| N112/2 | Telematics services communication module | 45A |
| N40/3 | Sound system amplifier control unit | 17L |
| N40/3 | Sound system amplifier control unit | 16L |
| W17/1 | Left rear seat ground point | 2E |
| X11/4 | Diagnostic connector | 10L |
| X18 | Vehicle interior and harness for taillamp electrical connector | 9E |
| X26/4 | Cockpit adapter wiring harness electrical connector | 13H |
| X30/54 | Rear hybrid CAN (CAN L) potential distributor electrical connector | 6L |
| Z35/12 | Diagnostic CAN low connector sleeve | 11G |
| Z35/13 | Diagnostic CAN high connector sleeve | 9G |
