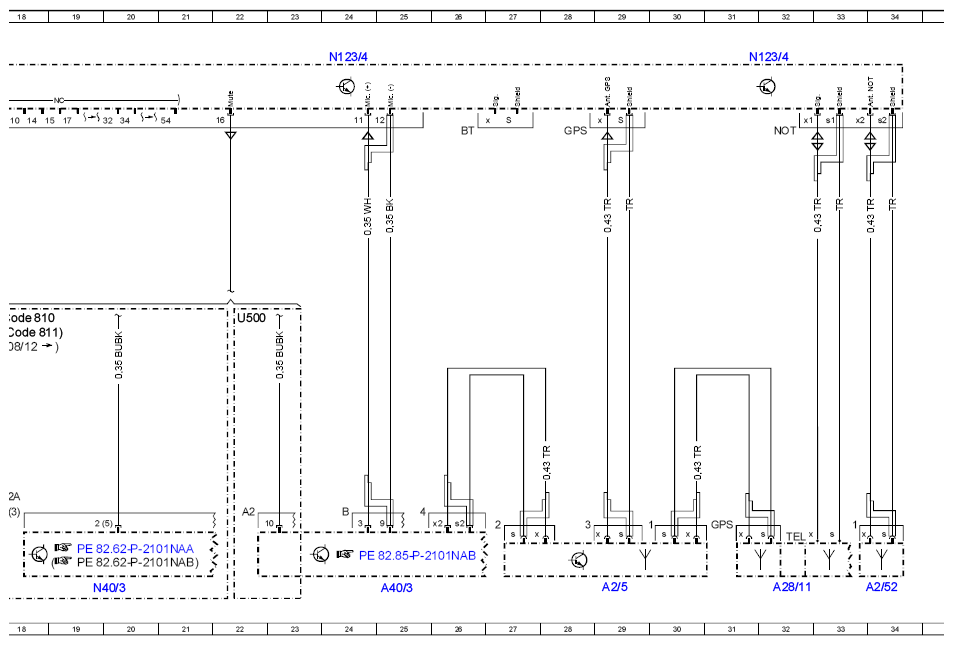

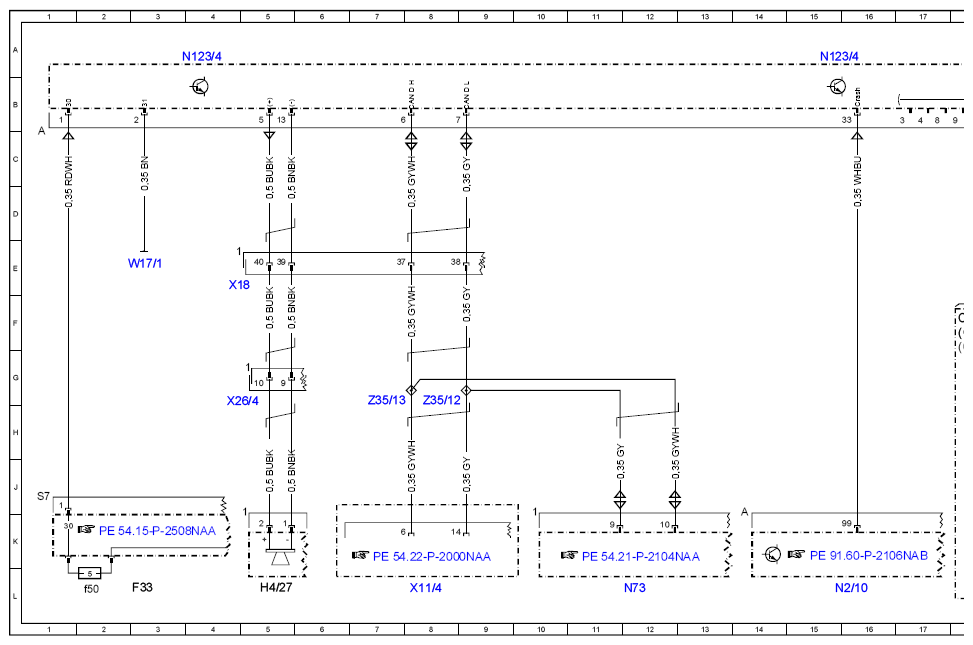

Wiring Diagram For Emergency Call System Control Unit - PE82.95-P-2101-97NAA
MODEL 166 up to model year 2013 with CODE 359 (TELE AID emergency call system)
MODEL 166 up to model year 2016 with CODE 348 (Emergency call/assistant system) as of model year 2013
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A2/5 | Global positioning system antenna splitter | 29L |
| A2/52 | Emergency call system antenna | 34L |
| A28/11 | Multifunction antenna | 32L |
| A40/3 | COMAND control unit | 25L |
| Code 810 | Sound system | 18F |
| Code 811 | Extended sound system | 18F |
| F33 | Battery compartment prefuse box | 3L |
| F33f50 | Fuse 50 | 2L |
| H4/27 | Center instrument panel speaker | 5L |
| N123/4 | Emergency call system control unit | 4A |
| N123/4 | Emergency call system control unit | 24A |
| N123/4 | Emergency call system control unit | 15A |
| N123/4 | Emergency call system control unit | 32A |
| N2/10 | Supplemental restraint system control unit | 16L |
| N40/3 | Sound system amplifier control unit | 19L |
| N73 | Electronic ignition switch control unit | 12L |
| U500 | Not vaIid for sound system | 22F |
| W17/1 | Left rear seat ground point | 3E |
| X11/4 | Diagnostic connector | 8L |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 5E |
| X26/4 | Cockpit adapter wiring harness electrical connector | 5H |
| Z35/12 | Diagnostic CAN low connector sleeve | 8G |
| Z35/13 | Diagnostic CAN high connector sleeve | 7G |
