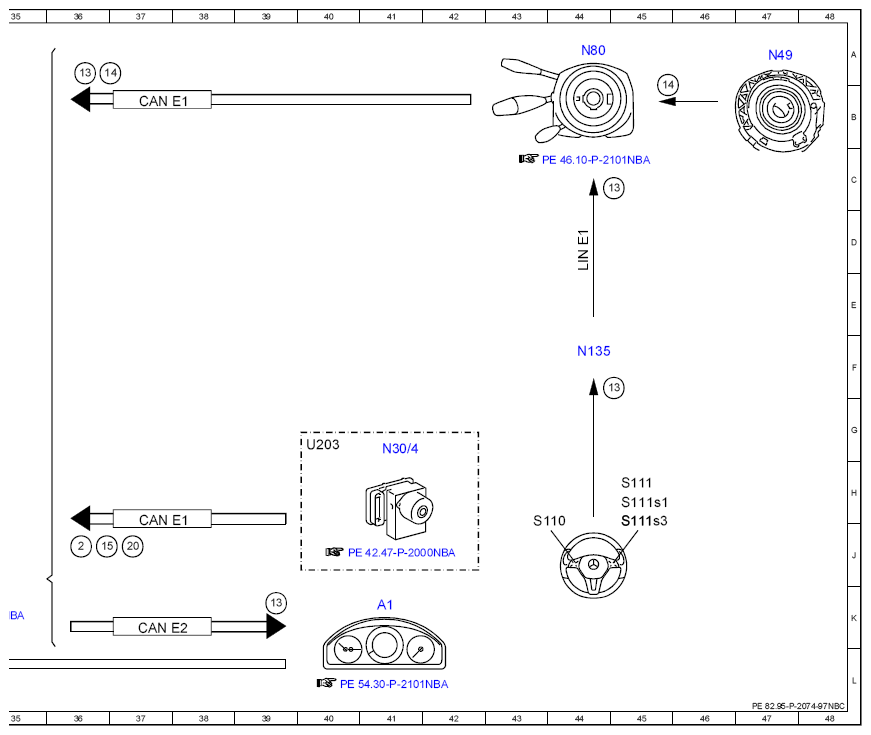

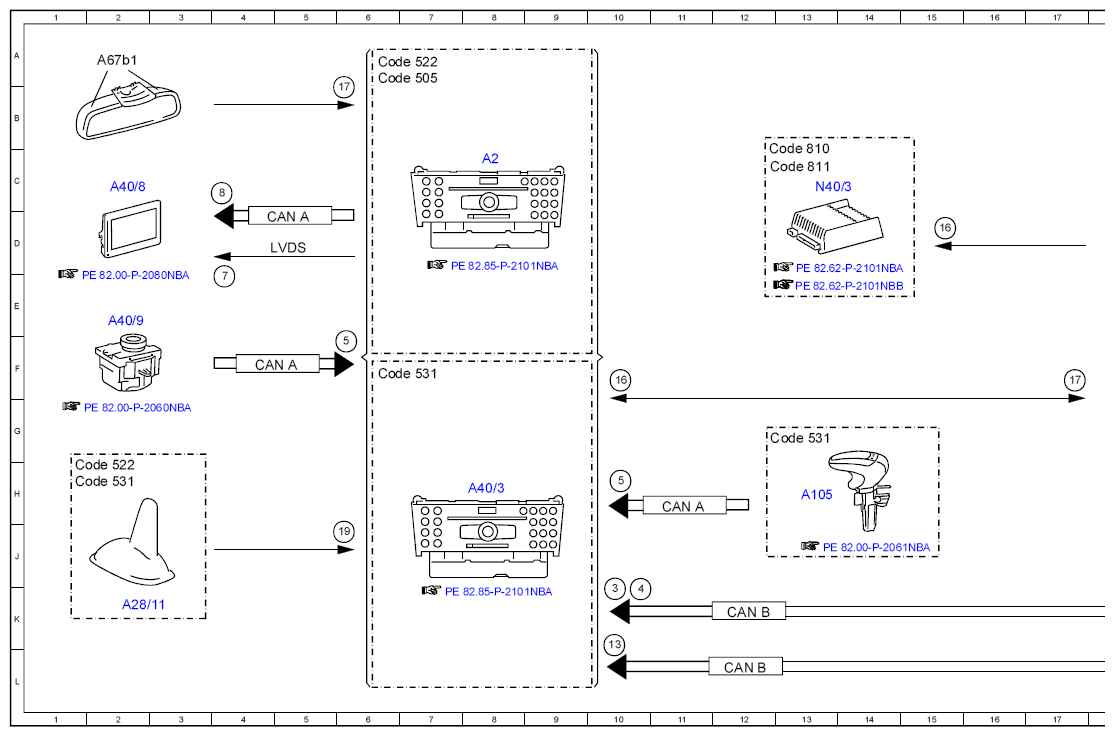

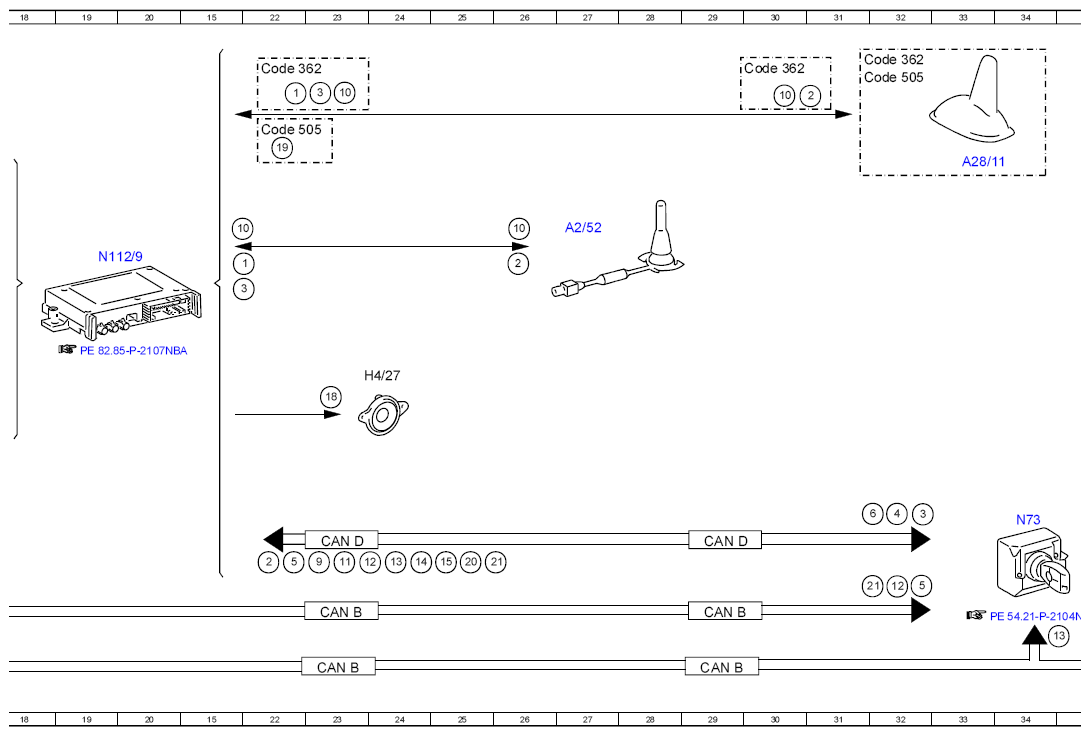

Electrical Function Schematic For Telematics Services, Function - PE82.95-P-2074-97NBC
MODEL 166, 292 as of model year 2017 up to model year 2019 with CODE 360 (HERMES UMTS) except CODE 05U (Remote Online) except CODE 06U (Mercedes connect me standard services) except CODE 348 (Emergency call/assistant system) except CODE 362 (HERMES LTE)
MODEL 166, 292 as of model year 2019 with CODE 362 (HERMES LTE) except CODE 05U (Remote Online) except CODE 06U (Mercedes connect me standard services) except CODE 348 (Emergency call/assistant system) except CODE 360 (HERMES UMTS) except CODE 460 (Canada version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle data, request | 22D |
| 1 | Vehicle data, request | 22B |
| 10 | Telephone, signal | 23B |
| 10 | Telephone, signal | 30B |
| 10 | Telephone, signal | 22D |
| 10 | Telephone, signal | 26D |
| 11 | Central locking, status | 23J |
| 12 | Position data, signal | 23J |
| 12 | Position data, signal | 32J |
| 13 | Multifunction steering wheel button group, signal | 39K |
| 13 | Multifunction steering wheel button group, signal | 36A |
| 13 | Multifunction steering wheel button group, signal | 44C |
| 13 | Multifunction steering wheel button group, signal | 34K |
| 13 | Multifunction steering wheel button group, signal | 10K |
| 13 | Multifunction steering wheel button group, signal | 44F |
| 13 | Multifunction steering wheel button group, signal | 24J |
| 14 | Steering wheel angle sensor, signal | 36A |
| 14 | Steering wheel angle sensor, signal | 45B |
| 14 | Steering wheel angle sensor, signal | 24J |
| 15 | Wheel speed, signal | 36J |
| 15 | Wheel speed, signal | 25J |
| 16 | Mute function, signal | 10F |
| 16 | Mute function, signal | 15D |
| 17 | Voice input, signal | 6B |
| 17 | Voice input, signal | 17F |
| 18 | Voice output, signal | 23F |
| 19 | GPS, signal | 6J |
| 19 | GPS, signal | 22B |
| 2 | Vehicle data, signal | 36J |
| 2 | Vehicle data, signal | 22J |
| 2 | Vehicle data, signal | 26D |
| 2 | Vehicle data, signal | 31A |
| 20 | Yaw rate, signal | 25J |
| 20 | Yaw rate, signal | 37J |
| 21 | Connection set-up, request | 32K |
| 21 | Connection set-up, request | 26J |
| 3 | Data from service center, signal | 10K |
| 3 | Data from service center, signal | 22E |
| 3 | Data from service center, signal | 32H |
| 3 | Data from service center, signal | 23A |
| 4 | Audio/COMAND display, message | 10K |
| 4 | Audio/COMAND display, message | 32H |
| 5 | Operation, signal | 10H |
| 5 | Operation, signal | 6F |
| 5 | Operation, signal | 32K |
| 5 | Operation, signal | 22J |
| 6 | Open/close central locking, request | 32H |
| 7 | Low voltage differential signal video signal data transfer, signal | 4E |
| 8 | Audio/COMAND display, actuation | 4C |
| 9 | Circuit 15, status | 23J |
| A1 | Instrument cluster | 41K |
| A105 | Touchpad | 13H |
| A2 | Radio | 8C |
| A2/52 | Emergency call system antenna | 27D |
| A28/11 | Multifunction antenna | 2K |
| A28/11 | Multifunction antenna | 33C |
| A40/3 | COMAND control unit | 8H |
| A40/8 | Audio/COMAND display | 2C |
| A40/9 | Audio/COMAND control panel | 2E |
| A67b1 | Hands-free system microphone group | 2A |
| CAN A | Telematics CAN | 4F |
| CAN A | Telematics CAN | 5D |
| CAN A | Telematics CAN | 11H |
| CAN B | Interior CAN | 23K |
| CAN B | Interior CAN | 12K |
| CAN B | Interior CAN | 29K |
| CAN B | Interior CAN | 23L |
| CAN B | Interior CAN | 12L |
| CAN B | Interior CAN | 29L |
| CAN D | Diagnostic CAN | 23J |
| CAN D | Diagnostic CAN | 29J |
| CAN E1 | Chassis CAN 1 | 37J |
| CAN E1 | Chassis CAN 1 | 37B |
| CAN E2 | Chassis CAN 2 | 37K |
| Code 362 | HERMES LTE | 31A |
| Code 362 | HERMES LTE | 22A |
| Code 362 | HERMES LTE | 30A |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 6A |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 31A |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 22B |
| Code 522 | Audio 20 radio | 1H |
| Code 522 | Audio 20 radio | 6A |
| Code 531 | COMAND APS | 6F |
| Code 531 | COMAND APS | 1H |
| Code 531 | COMAND APS | 12G |
| Code 810 | Sound system | 12C |
| Code 811 | Extended sound system | 12C |
| H4/27 | Center instrument panel speaker | 24F |
| LIN E1 | Steering LIN | 44D |
| LVDS | Low voltage differential signal | 5D |
| N112/9 | HERMES control unit | 19D |
| N135 | Steering wheel electronics | 44F |
| N30/4 | Electronic Stability Program control unit | 41G |
| N40/3 | Sound system amplifier control unit | 13C |
| N49 | Steering wheel angle sensor | 47A |
| N73 | Electronic ignition switch control unit | 34H |
| N80 | Steering column module control unit | 44A |
| S110 | Left multifunction steering wheel button group | 43J |
| S111 | Right multifunction steering wheel button group | 45J |
| S111 | Right multifunction steering wheel button group | 45H |
| S111 | Right multifunction steering wheel button group | 45H |
| S111s1 | Buttons + and - for setting specific functions and volume control | 45H |
| S111s3 | Accept/terminate phone call button | 45J |
| U203 | Valid without DISTRONIC PLUS | 40G |
