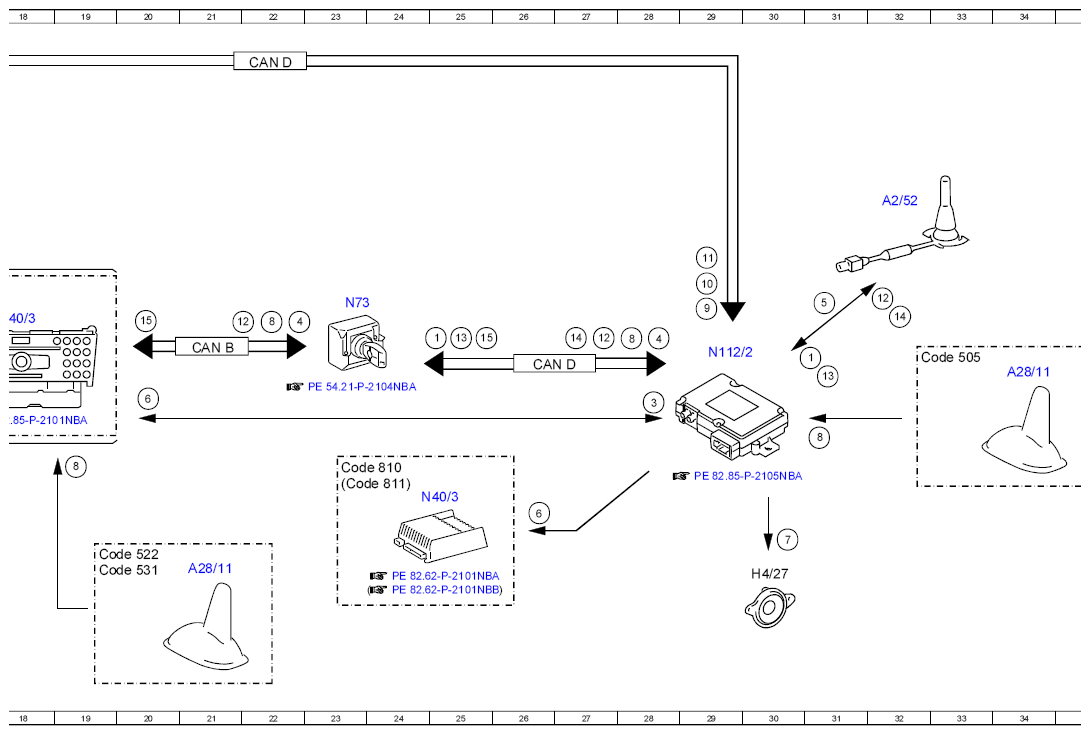

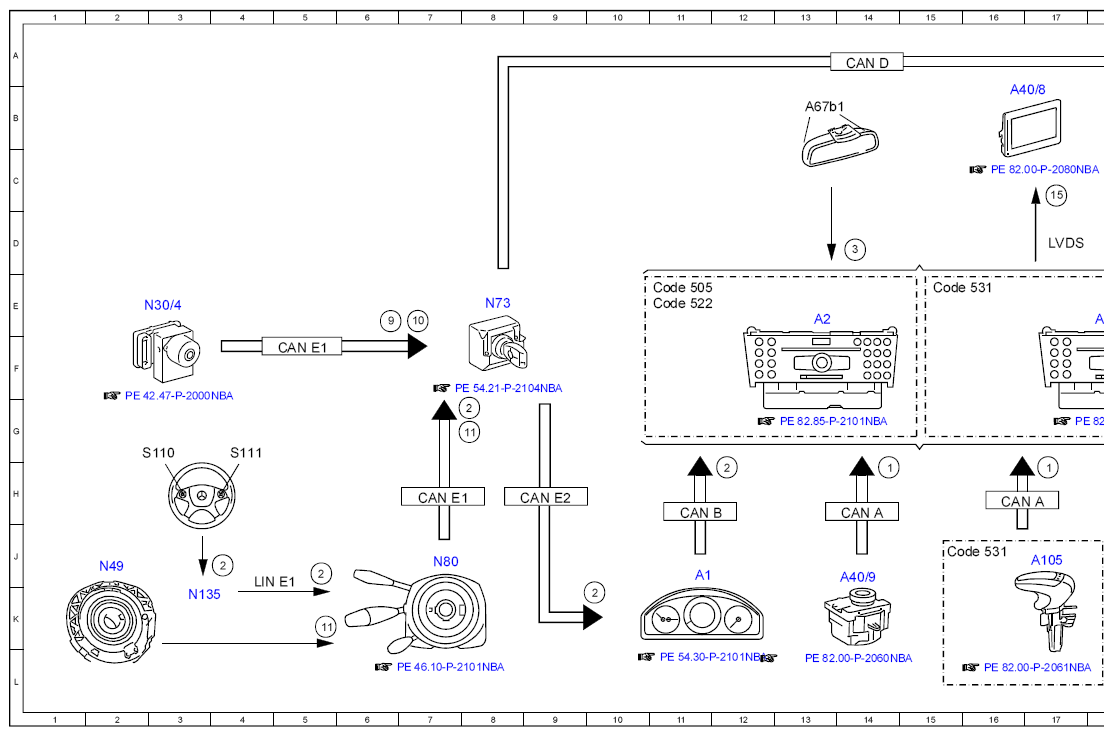

Electrical Function Schematic For Telematics Services, Function - PE82.95-P-2074-97NBB
MODEL 166 as of model year 2016 with CODE 05U (Remote Online) without CODE 348 (Emergency call/assistant system)
MODEL 166 as of model year 2016 with CODE 06U (Mercedes connect me standard services) without CODE 348 (Emergency call/assistant system)
MODEL 292 with CODE 05U (Remote Online) without CODE 348 (Emergency call/assistant system)
MODEL 292 with CODE 06U (Mercedes connect me standard services) without CODE 348 (Emergency call/assistant system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 14H |
| 1 | Operation, signal | 25F |
| 1 | Operation, signal | 17H |
| 1 | Operation, signal | 31F |
| 10 | Yaw rate, signal | 7E |
| 10 | Yaw rate, signal | 29E |
| 11 | Steering wheel angle sensor, signal | 8G |
| 11 | Steering wheel angle sensor, signal | 5K |
| 11 | Steering wheel angle sensor, signal | 29D |
| 12 | Position data, signal | 27E |
| 12 | Position data, signal | 22E |
| 12 | Position data, signal | 32E |
| 13 | Vehicle data, request | 25F |
| 13 | Vehicle data, request | 25E |
| 4 | Vehicle data, signal | 27F |
| 14 | Vehicle data, signal | 32E |
| 15 | Audio/COMAND display, message | 20E |
| 15 | Audio/COMAND display, message | 25F |
| 15 | Audio/COMAND display, message | 17C |
| 2 | Multifunction steering wheel button group, signal | 8G |
| 2 | Multifunction steering wheel button group, signal | 12H |
| 2 | Multifunction steering wheel button group, signal | 5J |
| 2 | Multifunction steering wheel button group, signal | 4J |
| 2 | Multifunction steering wheel button group, signal | 10K |
| 3 | Voice input, signal | 14D |
| 3 | Voice input, signal | 28G |
| 4 | Connection set-up, request | 28E |
| 4 | Connection set-up, request | 22E |
| 5 | Telephone, signal | 31E |
| 6 | Mute, signal | 20F |
| 6 | Mute, signal | 26H |
| 7 | Voice output, signal | 30J |
| 8 | GPS, signal | 28F |
| 8 | GPS, signal | 22E |
| 8 | GPS, signal | 19H |
| 8 | GPS, signal | 31G |
| 9 | Wheel speed, signal | 6E |
| 9 | Wheel speed, signal | 29E |
| A1 | Instrument cluster | 11J |
| A105 | Touchpad | 17J |
| A2 | Radio | 13E |
| A2/52 | Emergency call system antenna | 32C |
| A28/11 | Multifunction antenna | 34F |
| A28/11 | Multifunction antenna | 21J |
| A40/3 | COMAND control unit | 18E |
| A40/8 | Audio/COMAND display | 16B |
| A40/9 | Audio/COMAND control panel | 14J |
| A67b1 | Hands-free system microphone group | 13B |
| CAN A | Telematics CAN | 14H |
| CAN A | Telematics CAN | 16H |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 11H |
| CAN D | Diagnostic CAN | 22A |
| CAN D | Diagnostic CAN | 14A |
| CAN D | Diagnostic CAN | 26F |
| CAN E1 | Chassis CAN 1 | 7H |
| CAN E1 | Chassis CAN 1 | 5F |
| CAN E2 | Chassis CAN 2 | 9H |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 32F |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 11E |
| Code 522 | Audio 20 radio | 11E |
| Code 522 | Audio 20 radio | 19J |
| Code 531 | COMAND APS | 15E |
| Code 531 | COMAND APS | 19J |
| Code 531 | COMAND APS | 15J |
| Code 810 | Sound system | 23H |
| Code 811 | Extended sound system | 23H |
| H4/27 | Center instrument panel speaker | 30J |
| LIN | E1 Steering LIN | 4J |
| LVDS | Low voltage differential signal | 17D |
| N112/2 | Telematics services communication module | 29F |
| N135 | Steering wheel electronics | 3K |
| N30/4 | Electronic Stability Program control unit | 3E |
| N40/3 | Sound system amplifier control unit | 25H |
| N49 | Steering wheel angle sensor | 2J |
| N73 | Electronic ignition switch control unit | 23E |
| N73 | Electronic ignition switch control unit | 8E |
| N80 | Steering column module control unit | 7J |
| S110 | Left multifunction steering wheel button group | 2G |
| S111 | Right multifunction steering wheel button group | 4G |
