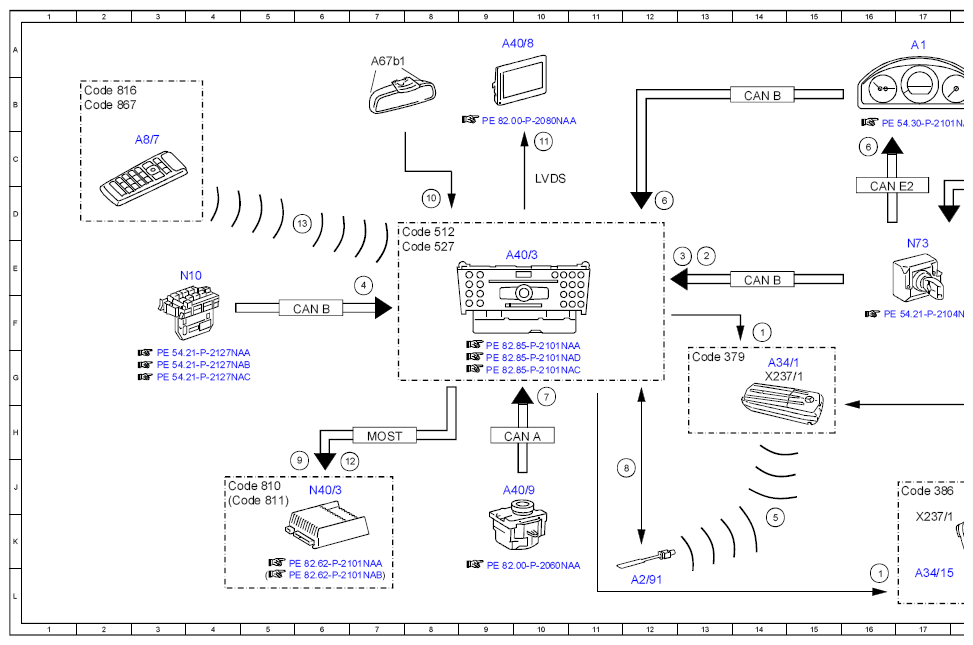

Electrical Function Diagram For Manual Or Automatic Emergency Call, Function - PE82.95-P-2066-97NAC
MODEL 166 as of 7/15/13 up to model year 2016 with CODE 347 (Ecall emergency call system, Europe) without CODE 348 (Emergency call/assistant system) without CODE 359 (TELE AID emergency call system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Switch-on request, signal | 16L |
| 1 | Switch-on request, signal | 14F |
| 10 | Voice input, signal | 8D |
| 11 | Audio/COMAND display, message | 10C |
| 12 | Voice output, signal | 6J |
| 13 | Operation, signal | 6D |
| 2 | Readiness, signal | 13E |
| 2 | Readiness, signal | 19E |
| 3 | Crash, signal | 13E |
| 3 | Crash, signal | 19E |
| 4 | Central locking emergency opening, signal | 7E |
| 5 | Bluetooth®, signal | 14K |
| 6 | Multifunction steering wheel button group, signal | 12D |
| 6 | Multifunction steering wheel button group, signal | 18D |
| 6 | Multifunction steering wheel button group, signal | 16C |
| 6 | Multifunction steering wheel button group, signal | 27B |
| 6 | Multifunction steering wheel button group, signal | 24B |
| 7 | Audio/COMAND controller, request | 10G |
| 8 | Telephone, signal | 12J |
| 8 | Telephone, signal | 24K |
| 8 | Telephone, signal | 27K |
| 8 | Telephone, signal | 19K |
| 8 | Telephone, signal | 19G |
| 9 | Mute, signal | 6J |
| A1 | Instrument cluster | 17A |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 25K |
| A2/91 | Bluetooth® antenna | 12L |
| A28/11 | Multifunction antenna | 29L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 21K |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 14G |
| A34/15 | Mobile phone holder | 17L |
| A40/3 | COMAND control unit | 9E |
| A40/8 | Audio/COMAND display | 9A |
| A40/9 | Audio/COMAND control panel | 9J |
| A67b1 | Hands-free system microphone group | 7A |
| A8/7 | Remote control | 3C |
| CAN A | Telematics CAN | 10H |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 14E |
| CAN B | Interior CAN | 14B |
| CAN E1 | Chassis CAN 1 | 20E |
| CAN E1 | Chassis CAN 1 | 20D |
| CAN E2 | Chassis CAN 2 | 16D |
| Code 379 | Telephone module with Bluetooth SAP | 13G |
| Code 379 | Telephone module with Bluetooth SAP | 20J |
| Code 379 | Telephone module with Bluetooth SAP | 25J |
| Code 379 | Telephone module with Bluetooth SAP | 29J |
| Code 386 | Comfort telephony | 17J |
| Code 386 | Comfort telephony | 20J |
| Code 386 | Comfort telephony | 25J |
| Code 386 | Comfort telephony | 29J |
| Code 512 | COMAND APS with DVD changer | 7D |
| Code 527 | COMAND APS (with navigation) | 7E |
| Code 810 | Sound system | 4J |
| Code 811 | Extended sound system | 4J |
| Code 816 | Entertainment remote control | 2B |
| Code 867 | SPLITVIEW | 2B |
| LIN E1 | Steering LIN | 25B |
| LVDS | Low voltage differential signal | 10C |
| MOST | Media Oriented System Transport | 7H |
| N10 | SAM control unit | 4E |
| N135 | Steering wheel electronics | 27B |
| N2/10 | Supplemental restraint system control unit | 22E |
| N40/3 | Sound system amplifier control unit | 6J |
| N73 | Electronic ignition switch control unit | 17E |
| N80 | Steering column module control unit | 23A |
| S110 | Left multifunction steering wheel button group | 26D |
| S111 | Right multifunction steering wheel button group | 27D |
| U579 | Valid for stationary heater | 25K |
| X237/1 | Mobile phone contact plate | 17K |
| X237/1 | Mobile phone contact plate | 14G |
