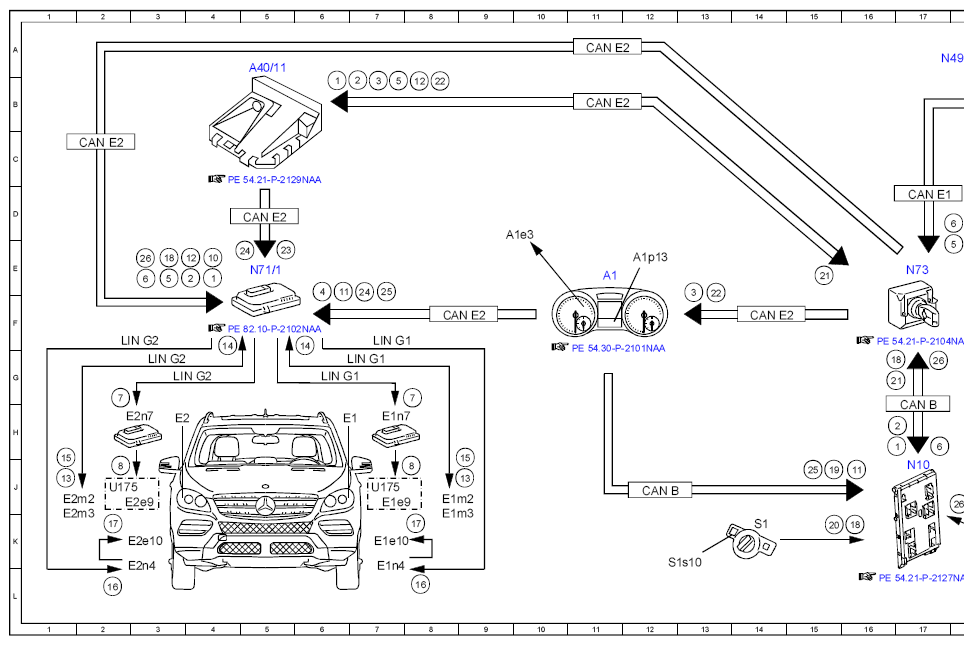

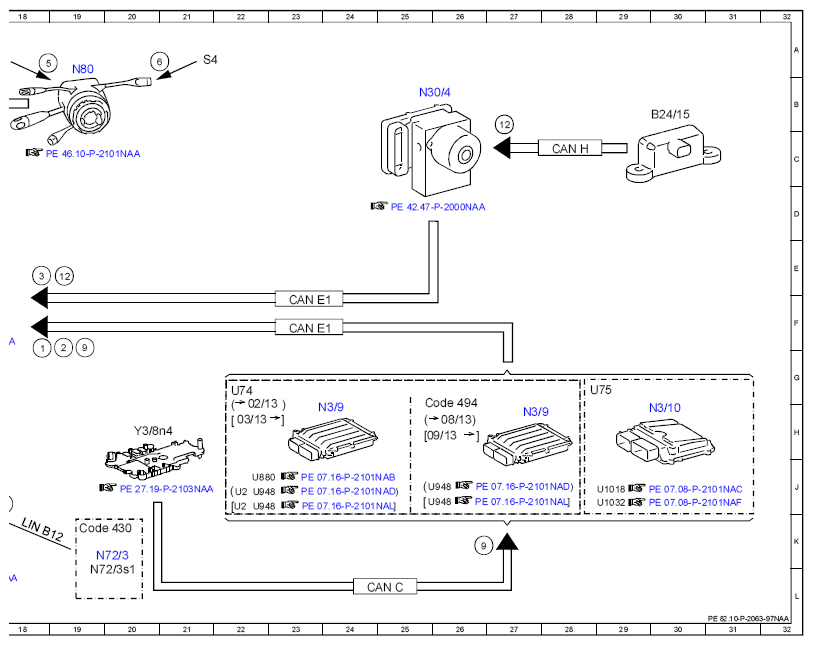

Electrical Function Schematic, Additional Functions, Driving Lights Actuation - PE82.10-P-2063-97NAA
MODEL 166 up to model year 2016 with CODE 608 (Adaptive Highbeam Assist)
MODEL 166 up to model year 2016 with CODE 615 i-xenon headlamp unit with integrated curve illumination)
MODEL 166 up to model year 2016 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 166 up to model year 2016 with CODE 622 (Intelligent Light System (right-hand traffic))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 4E |
| 1 | Engine running, signal | 6B |
| 1 | Engine running, signal | 18G |
| 1 | Engine running, signal | 16H |
| 10 | Reverse gear, status | 4E |
| 11 | Intelligent Light System, status | 6E |
| 11 | Intelligent Light System, status | 16J |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 4E |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 8B |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 19E |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 27B |
| 13 | Active curve illumination actuator motor, actuation | 1J |
| 13 | Active curve illumination actuator motor, actuation | 9J |
| 14 | Active curve illumination actuator motor, actuation | 4F |
| 14 | Active curve illumination actuator motor, actuation | 6F |
| 15 | Light distribution actuator motor, actuation | 1J |
| 15 | Light distribution actuator motor, actuation | 9J |
| 16 | Increase light output, request | 2L |
| 16 | Increase light output, request | 8L |
| 17 | Xenon bulb with integrated ignition module, actuation | 2K |
| 17 | Xenon bulb with integrated ignition module, actuation | 8K |
| 18 | Rear fog light button, status | 3E |
| 18 | Rear fog light button, status | 16G |
| 18 | Rear fog light button, status | 16K |
| 19 | Automatic high beams function, status | 15J |
| 2 | Drivetrain operational, signal | 4E |
| 2 | Drivetrain operational, signal | 7B |
| 2 | Drivetrain operational, signal | 19G |
| 2 | Drivetrain operational, signal | 17H |
| 20 | Exterior lights switch, status | 15K |
| 21 | Ambient brightness, signal | 15E |
| 21 | Ambient brightness, signal | 16G |
| 22 | Automatic high beams enable, status | 8B |
| 22 | Automatic high beams enable, status | 13E |
| 23 | Optical headlamp range adjustment, status | 5E |
| 24 | Automatic high beams, status | 5E |
| 24 | Automatic high beams, status | 7F |
| 25 | Offroad lights, status | 7E |
| 25 | Offroad lights, status | 15J |
| 26 | Off-Road package transmission mode controller, status | 3E |
| 26 | Off-Road package transmission mode controller, status | 17G |
| 26 | Off-Road package transmission mode controller, status | 18J |
| 3 | Wheel speed, signal | 7B |
| 3 | Wheel speed, signal | 13F |
| 3 | Wheel speed, signal | 18E |
| 4 | Vehicle speed, signal | 6E |
| 5 | Steering wheel angle, signal | 3E |
| 5 | Steering wheel angle, signal | 7B |
| 5 | Steering wheel angle, signal | 18E |
| 5 | Steering wheel angle, signal | 18A |
| 6 | Combination switch, status | 3E |
| 6 | Combination switch, status | 18D |
| 6 | Combination switch, status | 20A |
| 6 | Combination switch, status | 17H |
| 7 | Cornering illumination, request | 2G |
| 7 | Cornering illumination, request | 8G |
| 8 | Cornering illumination, actuation | 2J |
| 8 | Cornering illumination, actuation | 8J |
| 9 | Gear range, status | 19G |
| 9 | Gear range, status | 26K |
| A1 | Instrument cluster | 11E |
| A1e3 | High beam indicator lamp | 10D |
| A1p13 | Multifunction display | 12E |
| A40/11 | Multifunction camera | 5A |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 30B |
| CAN B | Interior CAN | 17H |
| CAN B | Interior CAN | 12J |
| CAN C | Drive train CAN | 25L |
| CAN E1 | Chassis CAN 1 | 17D |
| CAN E1 | Chassis CAN 1 | 23F |
| CAN E1 | Chassis CAN 1 | 23F |
| CAN E2 | Chassis CAN 2 | 8F |
| CAN E2 | Chassis CAN 2 | 5D |
| CAN E2 | Chassis CAN 2 | 11B |
| CAN E2 | Chassis CAN 2 | 14F |
| CAN E2 | Chassis CAN 2 | 11A |
| CAN E2 | Chassis CAN 2 | 2C |
| CAN H | Vehicle dynamics CAN | 28C |
| Code 430 | On-road/off-road package | 19K |
| Code 494 | USA version | 25H |
| E1 | Left front lamp unit | 6H |
| E1e10 | Left xenon bulb with integrated ignition module | 7K |
| E1e9 | Left cornering illumination | 7J |
| E1m2 | Left active curve illumination actuator motor | 8J |
| E1m3 | Left light distribution actuator motor | 8K |
| E1n4 | Left xenon light power supply module | 7L |
| E1n7 | Actuation module for left front exterior lights LED | 7H |
| E2 | Right front lamp unit | 3H |
| E2e10 | Right xenon bulb with integrated ignition module | 2K |
| E2e9 | Right cornering illumination | 2J |
| E2m2 | Right active curve illumination actuator motor | 1J |
| E2m3 | Right light distribution actuator motor | 1K |
| E2n4 | Right xenon light power supply module | 2L |
| E2n7 | Actuation module for right front exterior lights LED | 2H |
| LIN B12 | Center console switch LIN | 18K |
| LIN G1 | Left headlamp LIN | 7G |
| LIN G1 | Left headlamp LIN | 6G |
| LIN G1 | Left headlamp LIN | 7F |
| LIN G2 | Right headlamp LIN | 3G |
| LIN G2 | Right headlamp LIN | 3G |
| LIN G2 | Right headlamp LIN | 3F |
| N10 | SAM control unit | 17J |
| N3/10 | ME-SFI [ME] control unit | 30H |
| N3/9 | CDI control unit | 24H |
| N3/9 | CDI control unit | 27H |
| N30/4 | Electronic Stability Program control unit | 25B |
| N49 | Steering wheel angle sensor | 17A |
| N71/1 | Headlamp control unit | 5E |
| N72/3 | Off-Road operating panel control unit | 20K |
| N72/3s1 | Off-Road package transmission mode controller | 19L |
| N73 | Electronic ignition switch control unit | 17E |
| N80 | Steering column module control unit | 19A |
| S1 | Exterior lights switch | 14K |
| S1s10 | Rear fog light button | 12K |
| S4 | Combination switch | 21A |
| U1018 | Valid for gasoline engine 276 | 29J |
| U1032 | Valid for engine 278 and 157 | 29J |
| U175 | Valid for all except {{USA}} and {{Canada}} | 2J |
| U175 | Valid for all except {{USA}} and {{Canada}} | 7J |
| U2 | Valid for all except USA | 22J |
| U2 | Valid for all except USA | 22J |
| U74 | Valid for diesel engines | 22G |
| U75 | Valid for gasoline engines | 28G |
| U880 | Valid for engine 642 | 22J |
| U948 | Valid for diesel engine 651 | 22J |
| U948 | Valid for diesel engine 651 | 22J |
| U948 | Valid for diesel engine 651 | 25J |
| U948 | Valid for diesel engine 651 | 25J |
| Y3/8n4 | Fully integrated transmission control unit | 20H |
